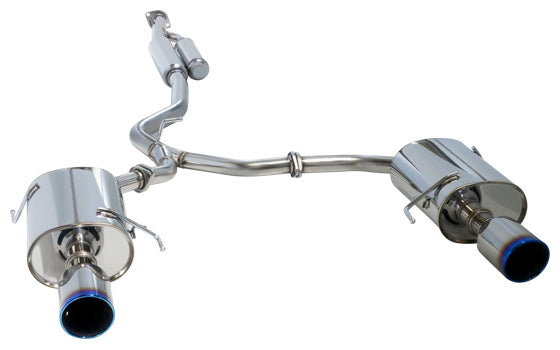

SUPER TURBO MUFFLER BP5 - 31029-AF003

Super Turbo Muffler

Vehicle: LEGACY TOURING WAGON

Application

• Model/Chassis: BP5
• Engine: EJ20(TURBO)
• Model Year: 03/05 - 09/04
• Code No.: 31029-AF003

Specifications

LEGACY TOURING WAGON TA-, CBA-BP5 Cert. No. 03S15811 Vehicle LEGACY TOURING WAGON Model BP5 Engine EJ20(TURBO) Model Year 03/05 - 09/04 Shape of muffler SSR (Super Turbo Muffler) Main material S304 Diameter of tip 124 L&R Diameter of center pipe 65-54 x 2 (*1) Close noise level Stock 81 HKS 84 About road clearance(*2) Clearance 140mm Portion of the kit Center silencer Remarks Product Weight Remarks Includes rear section and center pipe. Compatible with the vehicle with the stock rear bumper skirt and stock exhaust finisher. About HKS muffler *1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit. Caution: Hook, bracket, stay may be changed without prior notice. ★ Exhaust noise level at idle. [ CLOSE ]

Source: HKS Japan · Detail page
