HKS SUPER TURBO MUFFLER GRB/GRF - 31029-AF005

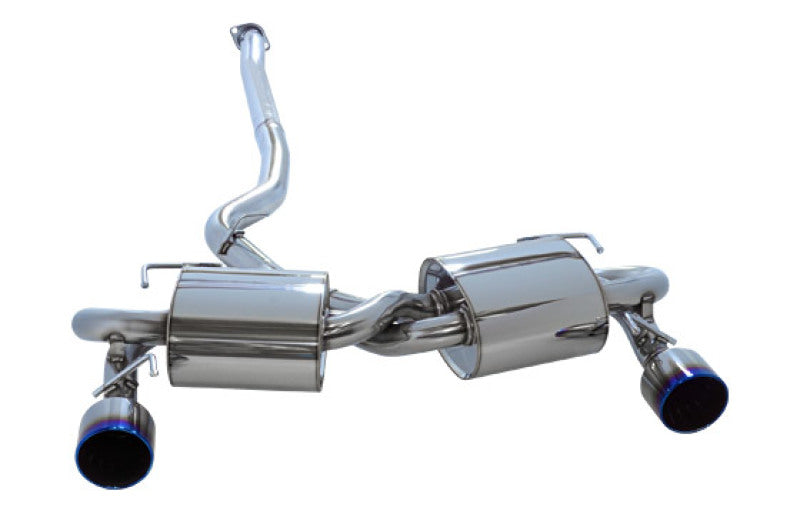

Super Turbo Muffler

Vehicle: IMPREZA WRX STI

Application

• Model/Chassis: GRB
• Engine: EJ20(TURBO)
• Model Year: 07/10 - 14/08
• Code No.: 31029-AF005

Specifications

IMPREZA WRX STI CBA-GRB Extremely Low Exhaust Pressure!! The 75φ straight structure enables higher level tuning to 500ps. Comfortable Driving with Less Noise The lower exhaust resonance and interior noise under street driving were reduced. Use with HKS Metal Catalyzer allows higher performance. Cert. No. JQR20122093 Vehicle IMPREZA WRX STI Model GRB Engine EJ20(TURBO) Model Year 07/10 - 14/08 Shape of muffler SSR (Super Turbo Muffler) Main material S304 Diameter of tip 124 L&R Diameter of center pipe 75-60 x 2 (*1) Close noise level Stock 80 HKS 88 About road clearance(*2) Clearance 146mm Portion of the kit Center pipe Remarks Product Weight Remarks Includes Center pipe. Compatible with the vehicle with the stock option STI exhaust finisher. Compatible with SPEC C. R205 is not confirmed. About HKS muffler *1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit. Caution: Hook, bracket, stay may be changed without prior notice. ★ Exha

Source: HKS Japan · Detail page
