Zone Offroad 15-19 Ford F-150 6in Lift System - ZONF53N

SKU: SKU: ZORZONF53N

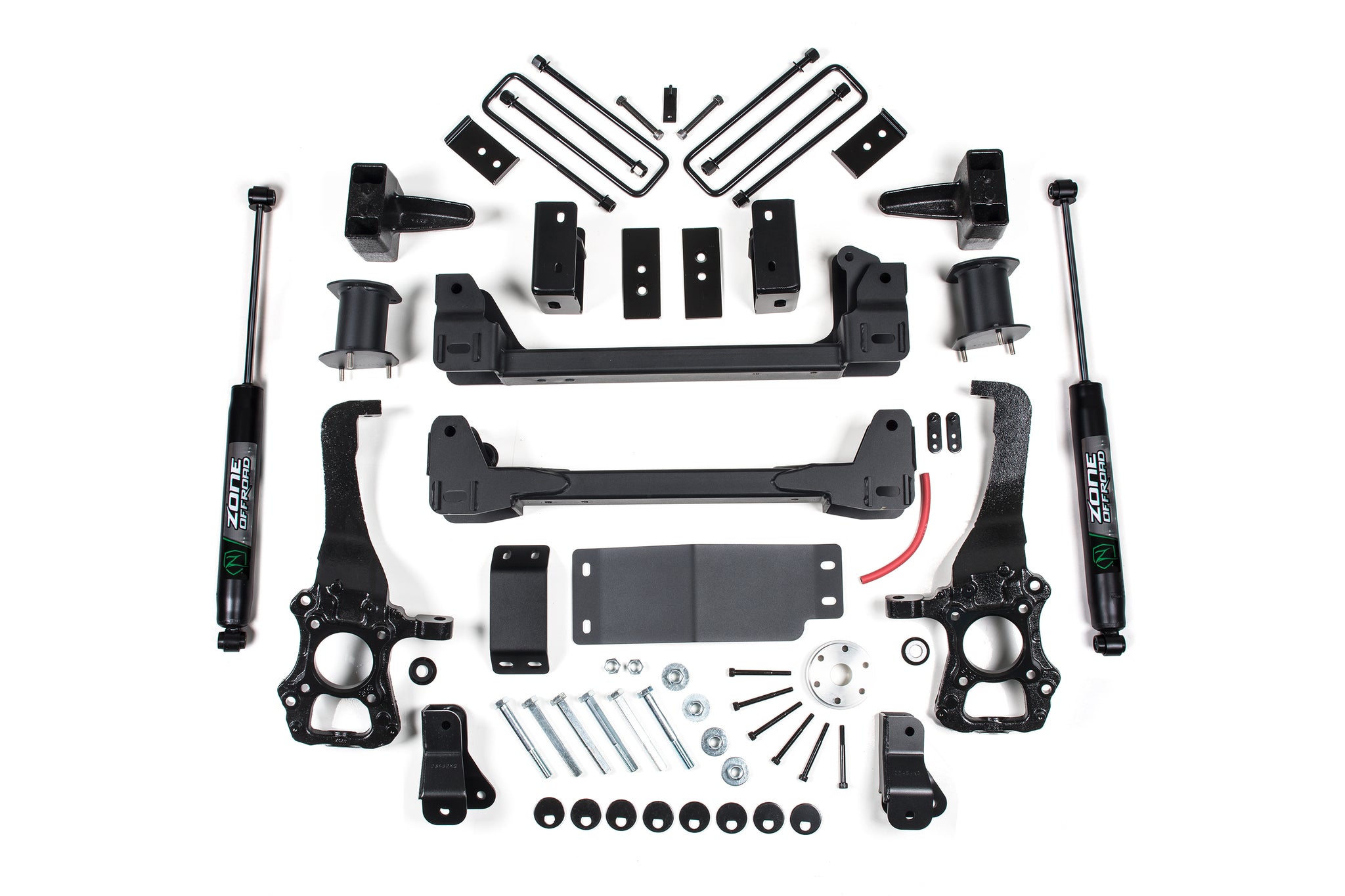

Take your F150 to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Features

  • High strength crossmembers to correct lower control arm positioning
  • Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Sway bar, brake line and bump stop relocation brackets to correct operating angles

Specifications

Rear Lift Method Cast Blocks
Requires Metal Cutting No
Requires Welding No
Wheel Size 18 x 9
Wheel Size 2 20 x 9
Wheel Size 3 22 x 9
Accommodates Factory Wheels See Notes
Adjustable No
Back Spacing 5.5"
Back Spacing 2 5.5"
Back Spacing 3 5.5"
Front Lift Height 6"
Front Lift Method Knuckle & Strut Spacer
Installation Difficulty 4 out of 5
Installation Time 9 hrs
Lift Type Lift Kit
Max Tire Size 37 x 12.5
Max Tire Size 2 37 x 12.5
Max Tire Size 3 37 x 12.5
Rear Lift Height 5"

Warranty: Limited
