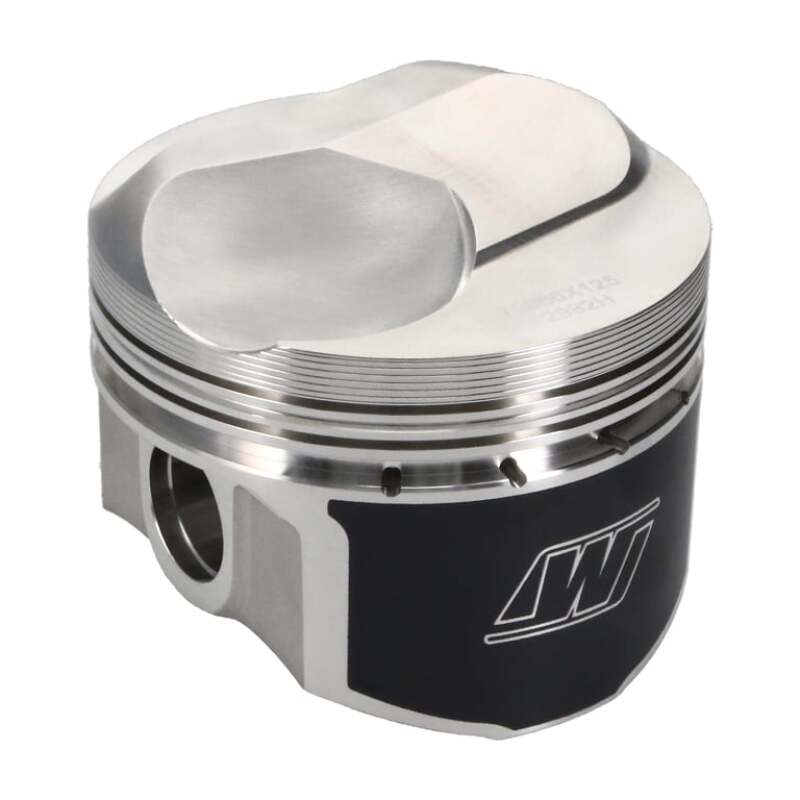

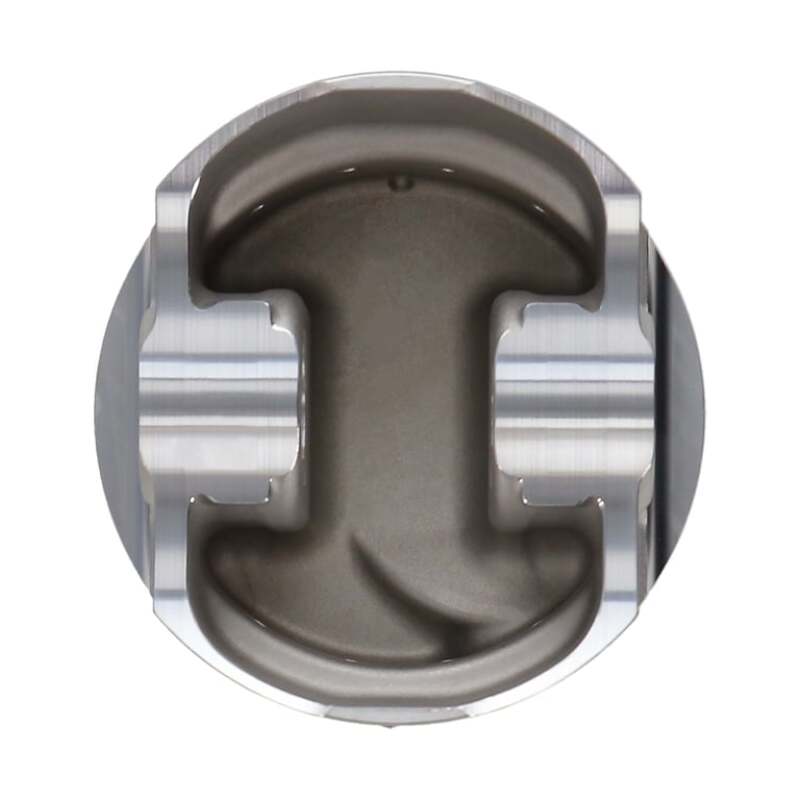

Wiseco RED Series Chevy Big Block 4.310in Bore 1.270in CH 15.00 CC Piston Set - RED0092X310
Wiseco RED Series Chevy Big Block 4.310in Bore 1.270in CH 15.00 CC Piston Set - RED0092X310
Wiseco RED Series Chevy Big Block 4.310in Bore 1.270in CH 15.00 CC Piston Set - RED0092X310
Wiseco RED Series Chevy Big Block 4.310in Bore 1.270in CH 15.00 CC Piston Set - RED0092X310
Wiseco RED Series Chevy Big Block 4.310in Bore 1.270in CH 15.00 CC Piston Set - RED0092X310
Wiseco RED Series Chevy Big Block 4.310in Bore 1.270in CH 15.00 CC Piston Set - RED0092X310
Wiseco RED Series Chevy Big Block 4.310in Bore 1.270in CH 15.00 CC Piston Set - RED0092X310
Wiseco RED Series Chevy Big Block 4.310in Bore 1.270in CH 15.00 CC Piston Set - RED0092X310
Wiseco RED Series Chevy Big Block 4.310in Bore 1.270in CH 15.00 CC Piston Set - RED0092X310
Wiseco RED Series Chevy Big Block 4.310in Bore 1.270in CH 15.00 CC Piston Set - RED0092X310

Wiseco Part # WISRED0092X310

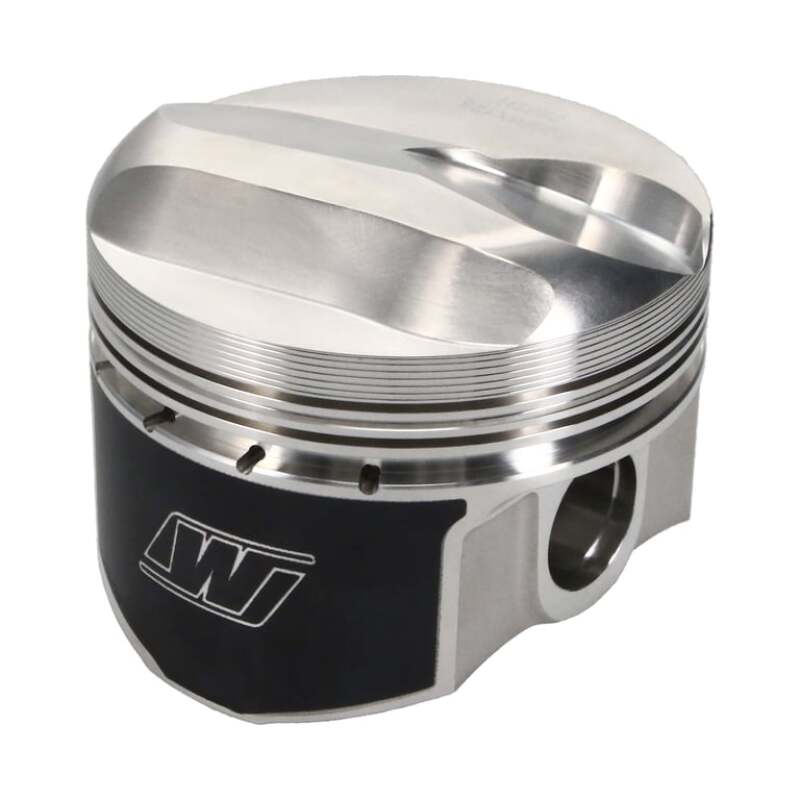

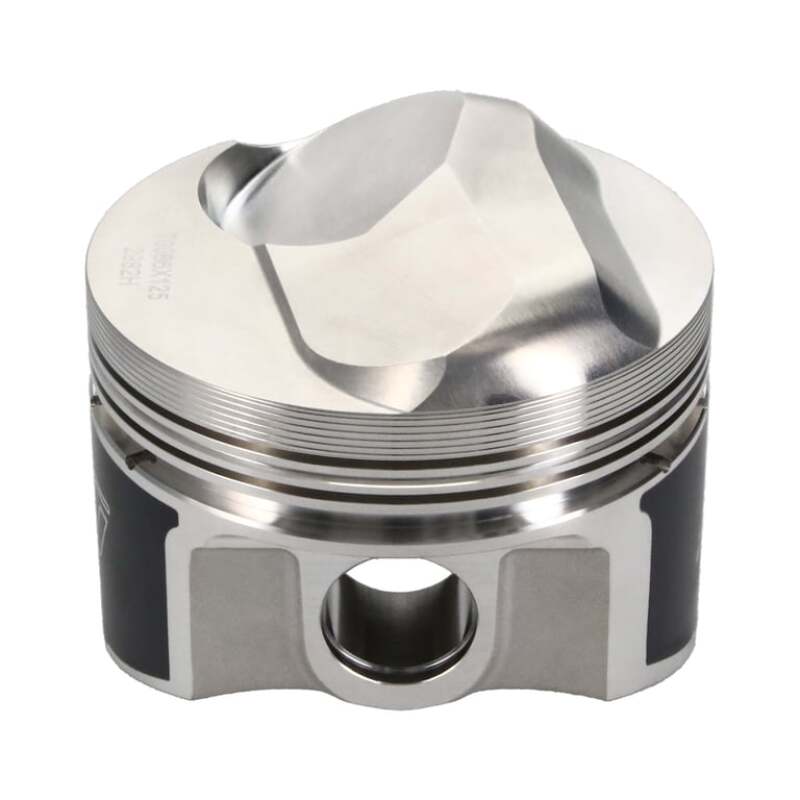

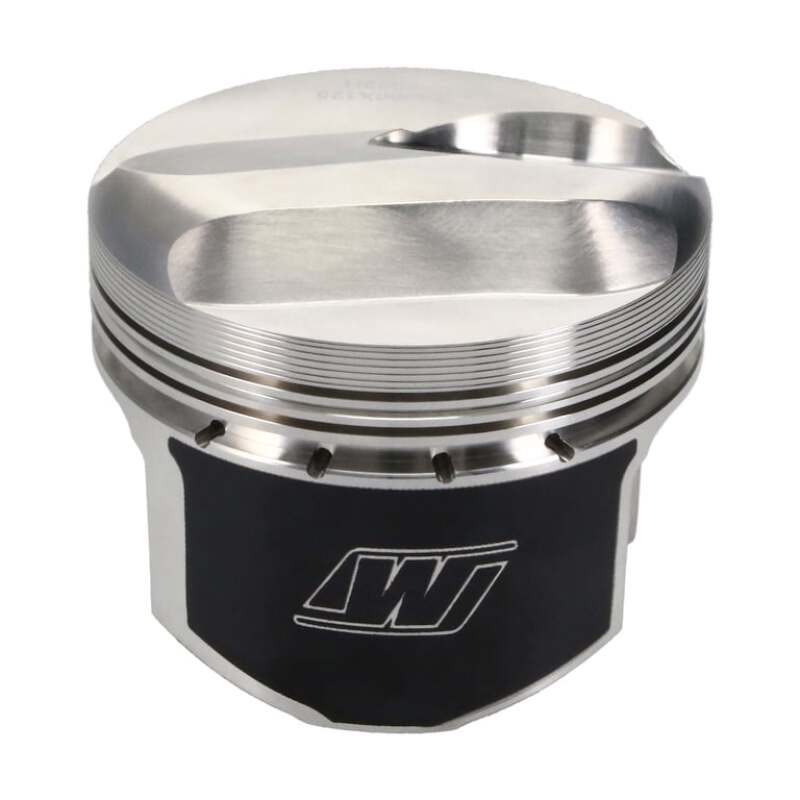

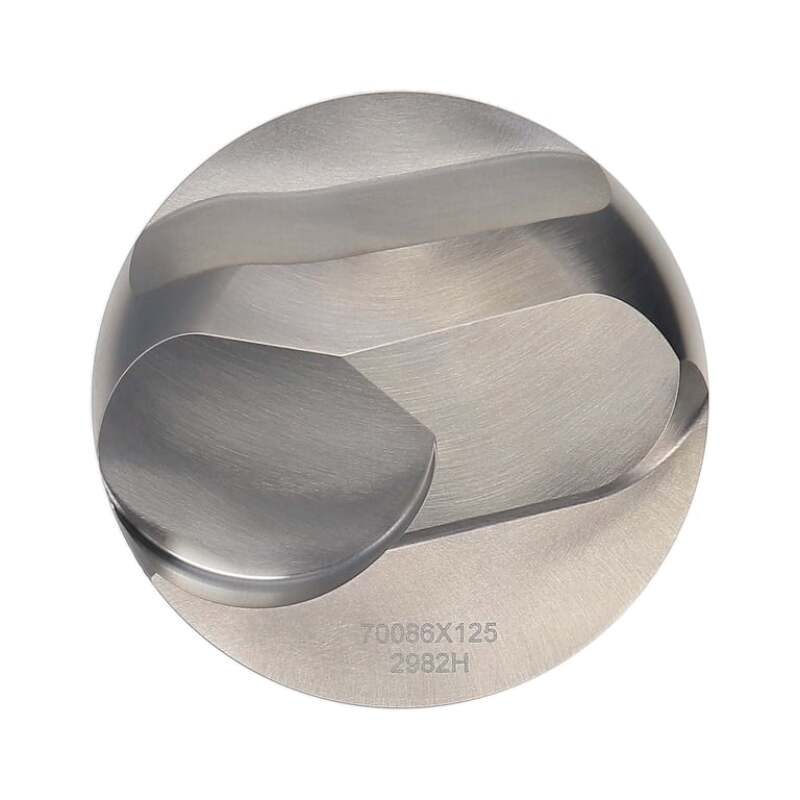

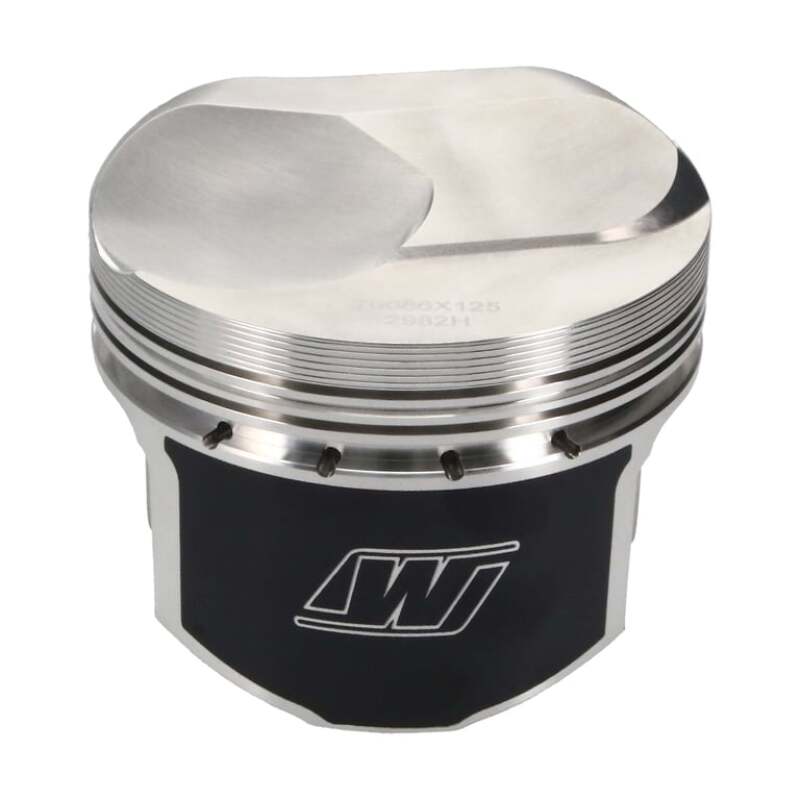

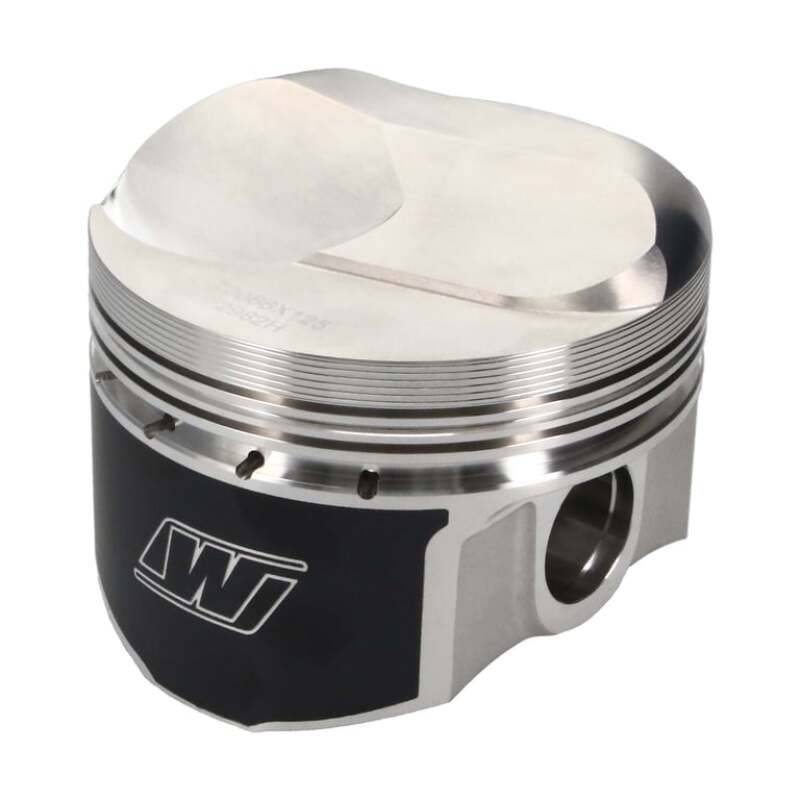

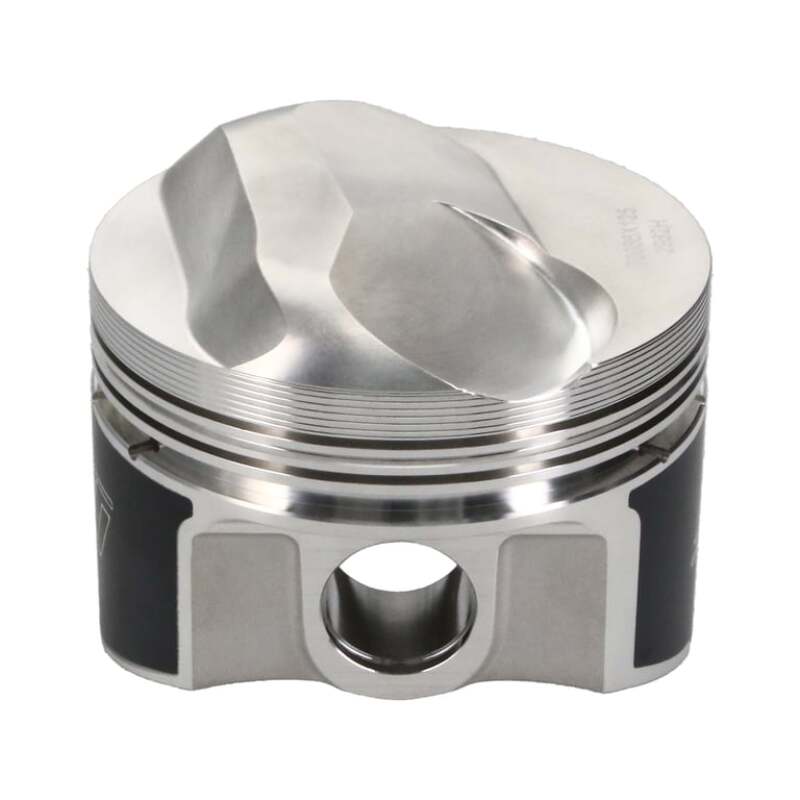

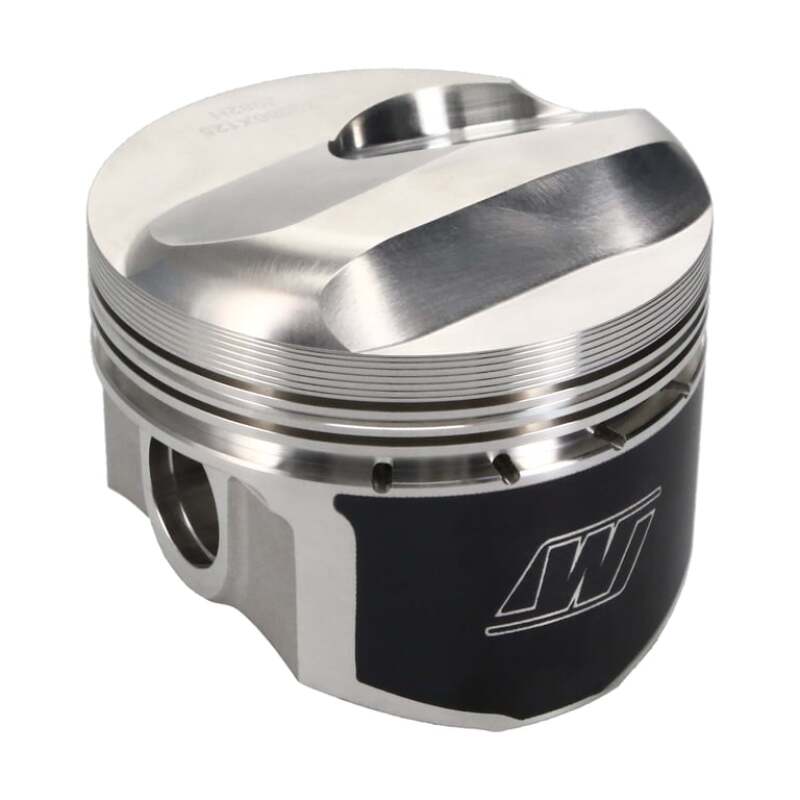

Wiseco RED Series Chevy Big Block 4.310in Bore 1.270in CH 15.00 CC Piston Set - RED0092X310

$999.99 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

Appropriately dubbed the RED series, these forged pistons utilize Race Engineered Design to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.

Features

  • Wiseco Chevrolet Big Block Piston Set, 4.310 in. Bore, 1.270 in. Compression Height, 0.990 in. Pin Diameter, RED Series, Set of 8.
  • Chevrolet 496 15cc Dome 1.270 X 4.310
  • Piston Set, Chevrolet, Big Block, 4.310 in. Bore, RED Series, Set of 8.

Manufacturer's Limited 30 Day Warranty

  • Top Compression Ring Thickness: 0.0640 IN
  • Top Ring Material: Ductile Iron
  • Second Compression Ring Thickness: 0.0640 IN
  • Second Ring Material: Iron
  • Oil Ring Thickness: 0.188 IN
  • Oil Ring Tension: Low
  • Third Ring Material: Carbon Steel
  • Wrist Pin Included: Yes
  • Wrist Pin Part Number: S460
  • Wrist Pin Material: 5115
  • Wrist Pin Style: Floating
  • Wrist Pin Outer Diameter: 0.990 IN
  • Wrist Pin Retainer Included: Yes
  • Wrist Pin Retainer Part Number: CS25
  • Wrist Pin Retainer Quantity: 16
  • Wrist Pin Retainer Style: Spiral Lock
  • Wrist Pin Retainer Material: High Carbon Spring Steel
  • Wrist Pin Retainer Thickness: 0.085 IN
  • Product Type: Engine Piston Set
  • Engine: Big Block
  • Make: Chevrolet
  • Product Series: RED Series
  • Bore Diameter: 4.310 IN
  • Stroke: 4.250 IN
  • Rod Length: 6.385 IN
  • Compression Height: 1.270 IN
  • Piston Volume: 15.00 CC
  • Piston Material: 2618
  • Skirt Coating: Yes
  • Forging Type: Strutted
  • Piston Quantity: 8
  • Wrist Pin Quantity: 8
  • Ring Set Included: Yes
  • Ring Set Part Number: J10001-4310-5
  • Ring Quantity: 8
