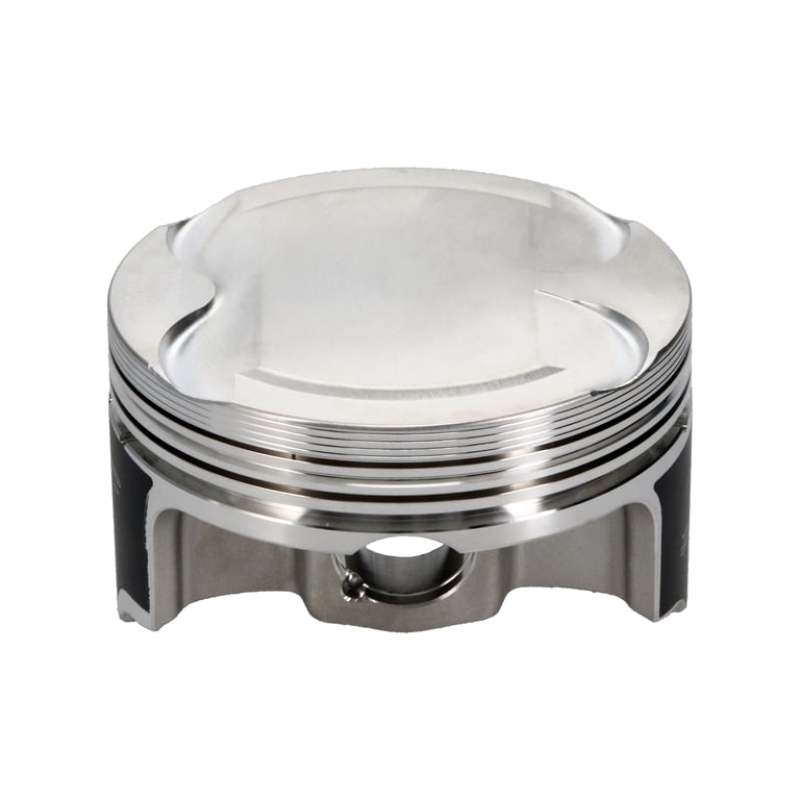

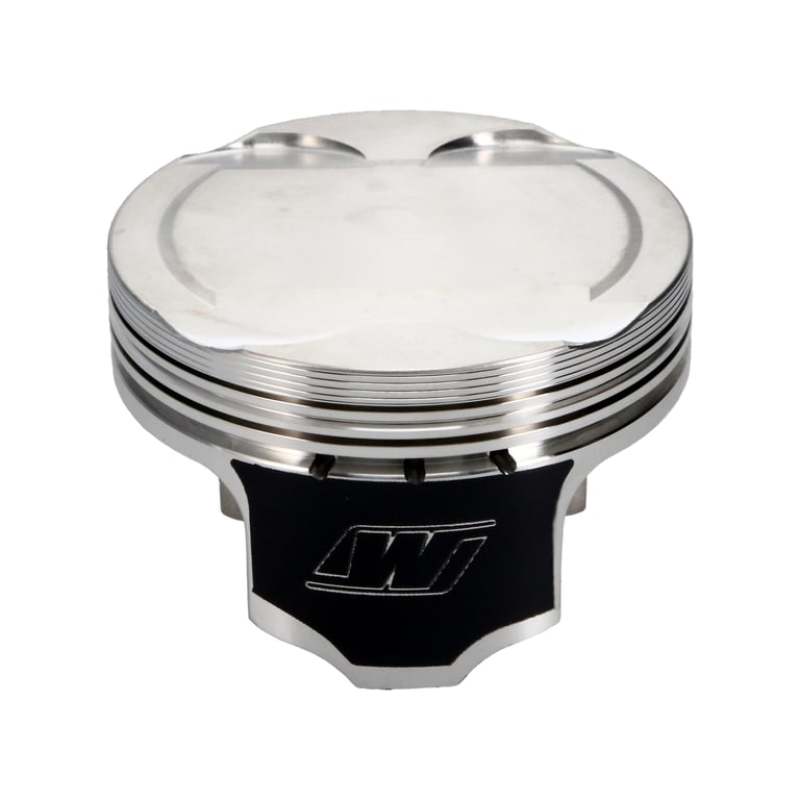

Wiseco Ford 5.0L Modular RED Series Piston Set 3662in Bore 1170in Compression Height - Set of 8 - RED0060XS
Wiseco Ford 5.0L Modular RED Series Piston Set 3662in Bore 1170in Compression Height - Set of 8 - RED0060XS
Wiseco Ford 5.0L Modular RED Series Piston Set 3662in Bore 1170in Compression Height - Set of 8 - RED0060XS
Wiseco Ford 5.0L Modular RED Series Piston Set 3662in Bore 1170in Compression Height - Set of 8 - RED0060XS
Wiseco Ford 5.0L Modular RED Series Piston Set 3662in Bore 1170in Compression Height - Set of 8 - RED0060XS
Wiseco Ford 5.0L Modular RED Series Piston Set 3662in Bore 1170in Compression Height - Set of 8 - RED0060XS
Wiseco Ford 5.0L Modular RED Series Piston Set 3662in Bore 1170in Compression Height - Set of 8 - RED0060XS
Wiseco Ford 5.0L Modular RED Series Piston Set 3662in Bore 1170in Compression Height - Set of 8 - RED0060XS
Wiseco Ford 5.0L Modular RED Series Piston Set 3662in Bore 1170in Compression Height - Set of 8 - RED0060XS
Wiseco Ford 5.0L Modular RED Series Piston Set 3662in Bore 1170in Compression Height - Set of 8 - RED0060XS

Wiseco Part # WISRED0060XS

Wiseco Ford 5.0L Modular RED Series Piston Set 3662in Bore 1170in Compression Height - Set of 8 - RED0060XS

$1,049.99 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Trusted since 2005 Questions? Email sales@raptorracing.com

Appropriately dubbed the RED series, these forged pistons utilize Race Engineered Design to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.

Features

  • Wiseco Ford 5.0L Modular Piston Set , 3.662 in. Bore, 1.170 in. Compression Height, 0.866 in. Pin Diameter, RED Series, Set of 8.
  • Ford 7.0cc Dome 1.170 X 3.662
  • Piston Set, Ford, 5.0L Modular, 3.662 in. Bore, RED Series, Set of 8

Manufacturer's Limited 30 Day Warranty

  • Product Series: RED Series
  • Bore Diameter: 3.662 IN
  • Stroke: 3.650 IN
  • Rod Length: 5.933 IN
  • Compression Height: 1.170 IN
  • Piston Volume: 7.00 CC
  • Piston Material: 2618
  • Skirt Coating: Yes
  • Forging Type: Strutted
  • Piston Quantity: 8
  • Ring Set Included: Yes
  • Top Compression Ring Thickness: 1.00 MM
  • Second Compression Ring Thickness: 1.20 MM
  • Oil Ring Thickness: 2.80 MM
  • Wrist Pin Included: Yes
  • Wrist Pin Material: 5115
  • Wrist Pin Style: Floating
  • Wrist Pin Outer Diameter: 0.866 IN
  • Product Type: Engine Piston Set
  • Engine: 5.0L Modular
  • Make: Ford
