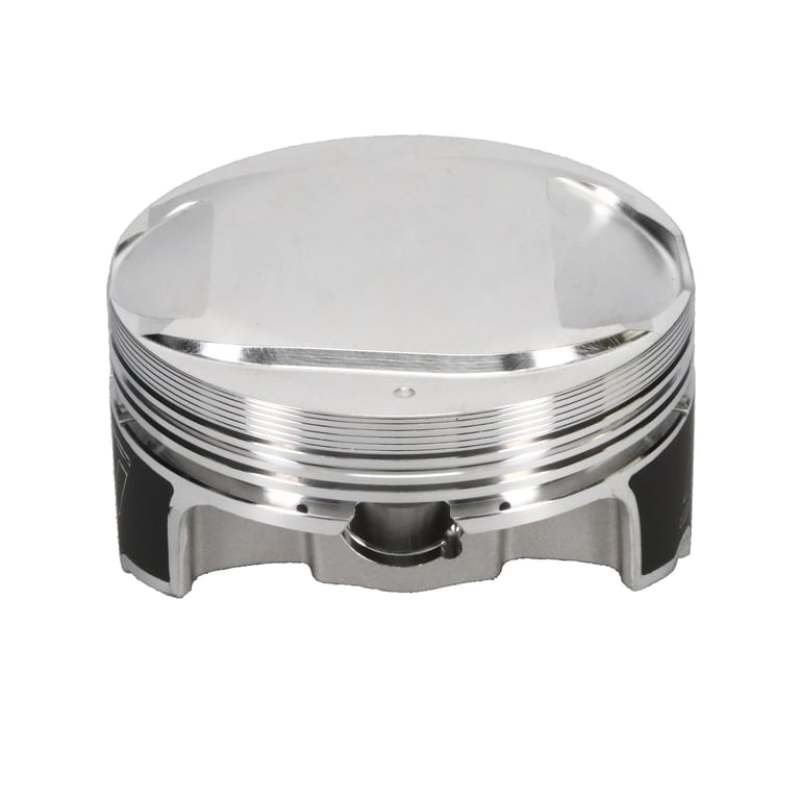

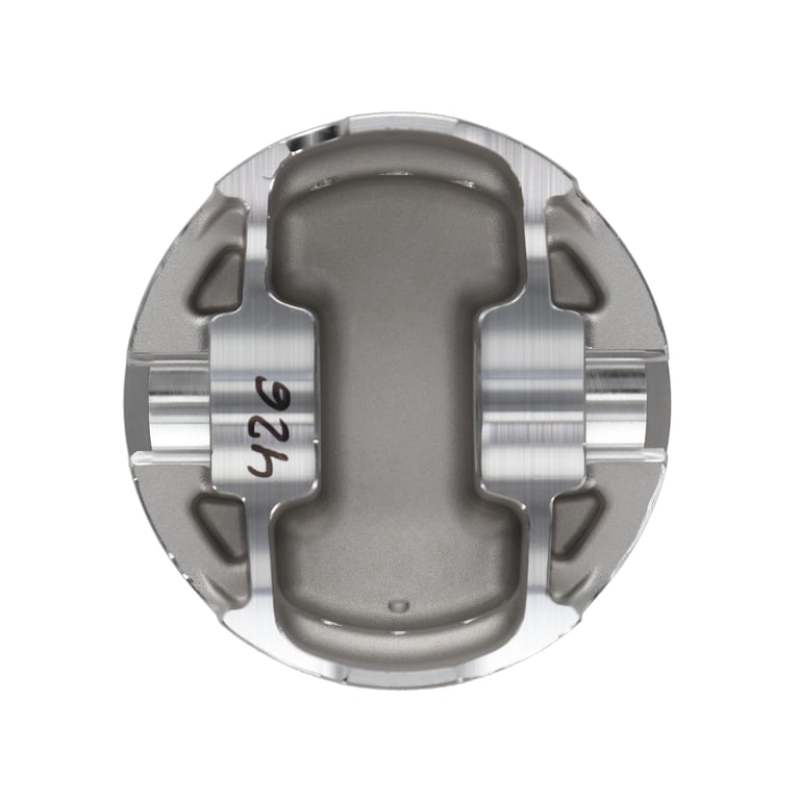

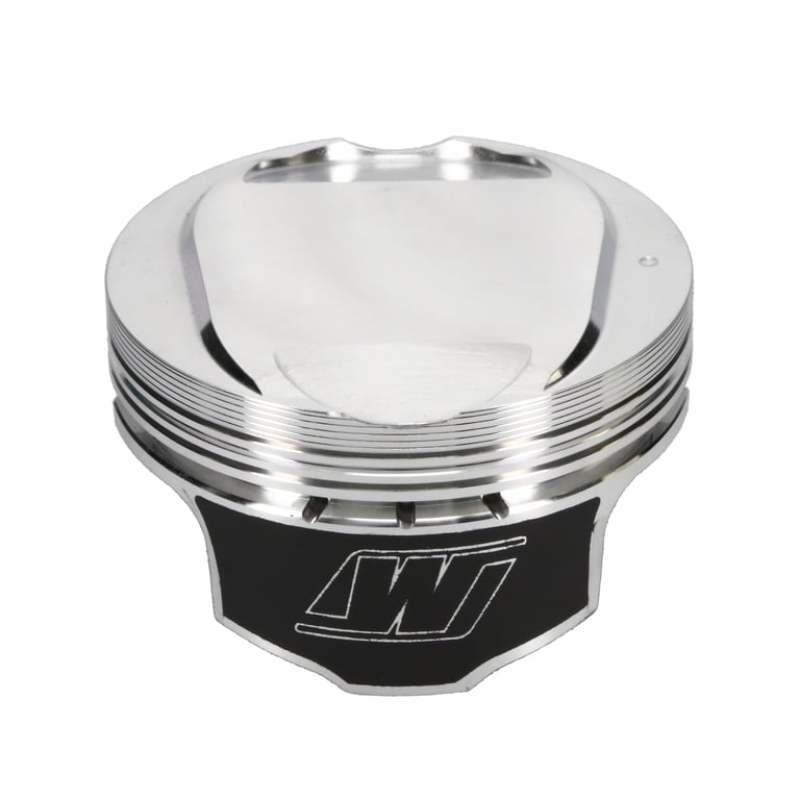

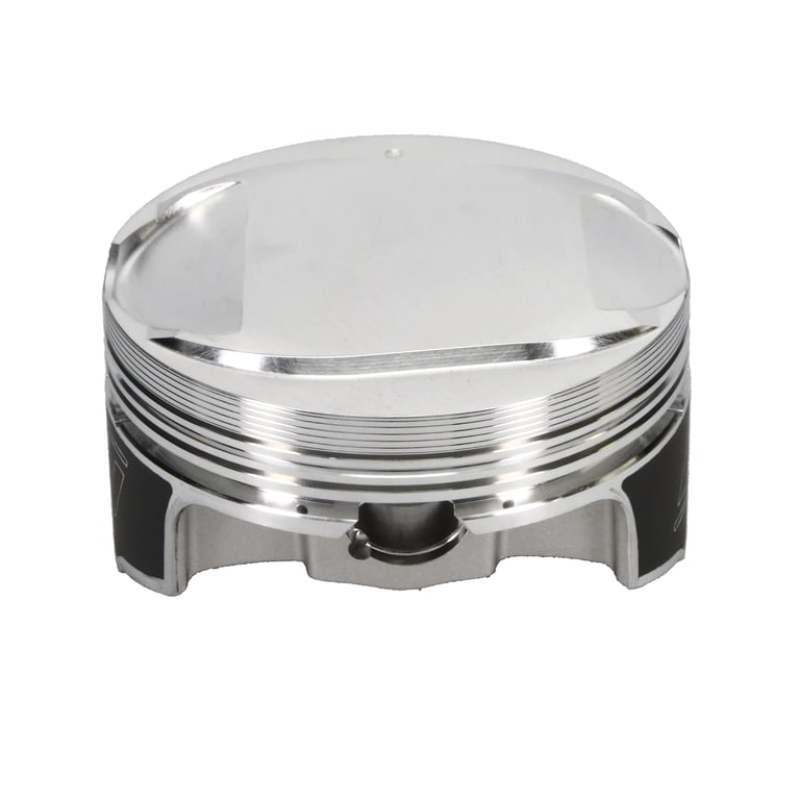

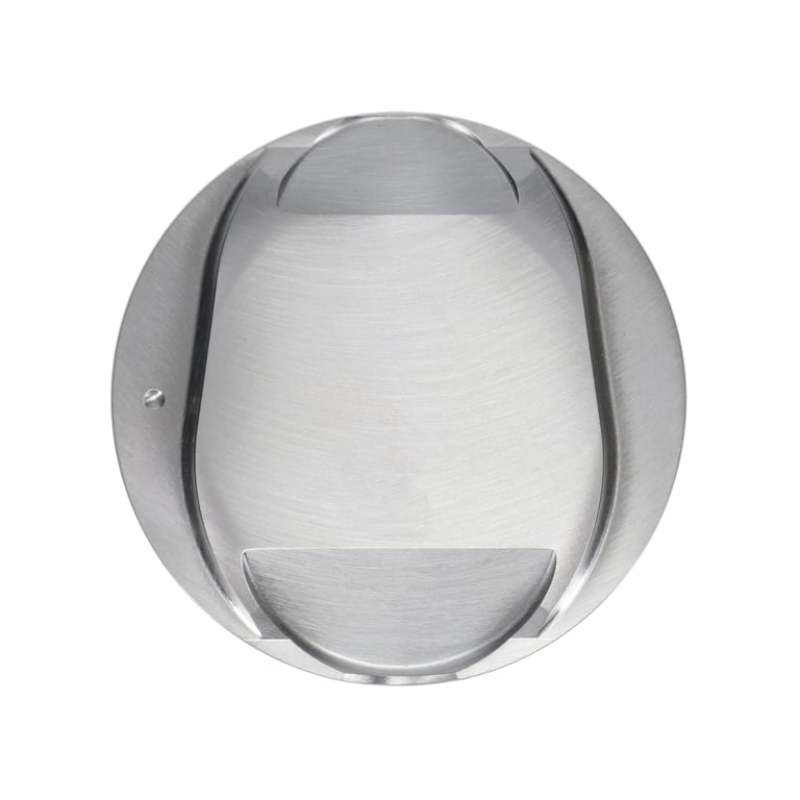

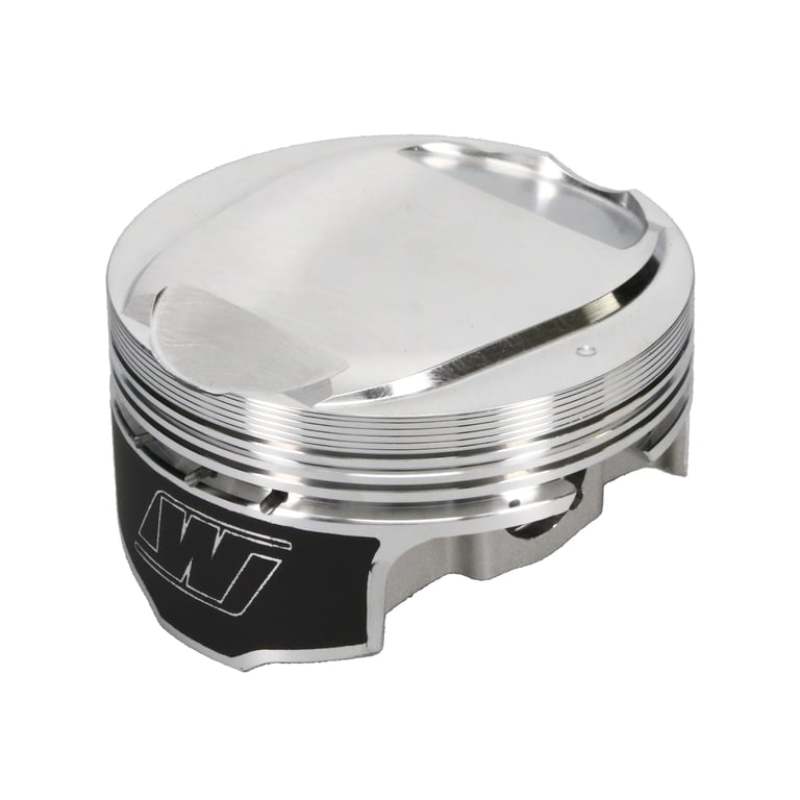

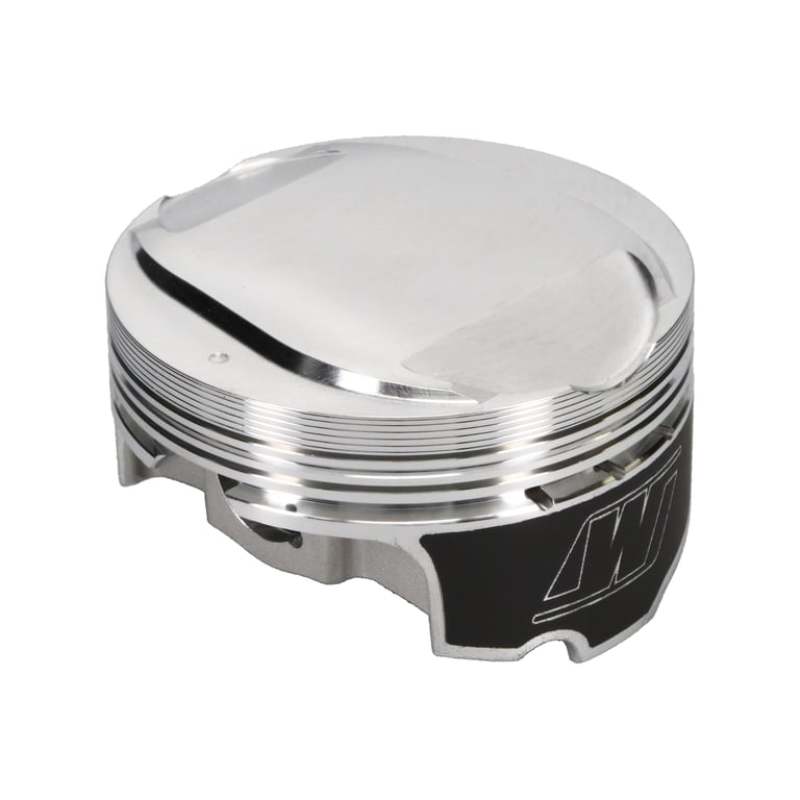

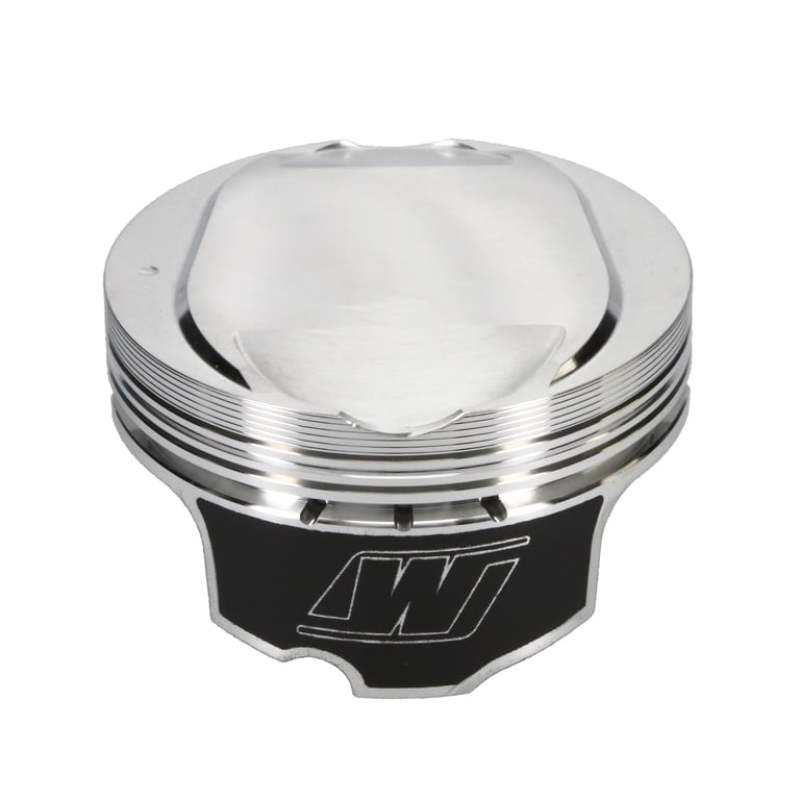

Wiseco Chrysler 5.7L HEMI +6.55cc Dome 1.220CH 3.917in Bore 3.580 Stroke Piston Kit - K0105XS
Wiseco Chrysler 5.7L HEMI +6.55cc Dome 1.220CH 3.917in Bore 3.580 Stroke Piston Kit - K0105XS
Wiseco Chrysler 5.7L HEMI +6.55cc Dome 1.220CH 3.917in Bore 3.580 Stroke Piston Kit - K0105XS
Wiseco Chrysler 5.7L HEMI +6.55cc Dome 1.220CH 3.917in Bore 3.580 Stroke Piston Kit - K0105XS
Wiseco Chrysler 5.7L HEMI +6.55cc Dome 1.220CH 3.917in Bore 3.580 Stroke Piston Kit - K0105XS
Wiseco Chrysler 5.7L HEMI +6.55cc Dome 1.220CH 3.917in Bore 3.580 Stroke Piston Kit - K0105XS
Wiseco Chrysler 5.7L HEMI +6.55cc Dome 1.220CH 3.917in Bore 3.580 Stroke Piston Kit - K0105XS
Wiseco Chrysler 5.7L HEMI +6.55cc Dome 1.220CH 3.917in Bore 3.580 Stroke Piston Kit - K0105XS

Wiseco

SKU: SKU: WISK0105XS

Wiseco Chrysler 5.7L HEMI +6.55cc Dome 1.220CH 3.917in Bore 3.580 Stroke Piston Kit - K0105XS

$1,019.99 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Customers also viewed

Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco's Professional Series.

Features

  • Wiseco Chrysler 5.7L Hemi Piston Set, 3.917 in. Bore, 1.220 in. Compression Height, 0.945 in. Pin Diameter, Professional, Set of 8.
  • Chrysler 5.7L Hemi +6.5cc Dome 1.220 CH
  • Piston Set, Chrysler, 5.7L Hemi, 3.917 in. Bore, Professional, Set of 8

Manufacturer's Limited 30 Day Warranty

Specifications

  • Ring Set Included: Yes
  • Top Compression Ring Thickness: 1.2 MM
  • Second Compression Ring Thickness: 1.2 MM
  • Oil Ring Thickness: 3.0 MM
  • Wrist Pin Included: Yes
  • Wrist Pin Material: 5115
  • Wrist Pin Style: Floating
  • Wrist Pin Outer Diameter: 0.945 IN
  • Product Type: Engine Piston Set
  • Engine: 5.7L Hemi
  • Make: Chrysler
  • Product Series: Professional
  • Bore Diameter: 3.917 IN
  • Stroke: 3.580 IN
  • Rod Length: 6.243 IN
  • Compression Height: 1.220 IN
  • Piston Volume: 6.50 CC
  • Piston Material: 2618
  • Skirt Coating: Yes
  • Forging Type: Strutted
  • Piston Quantity: 8
