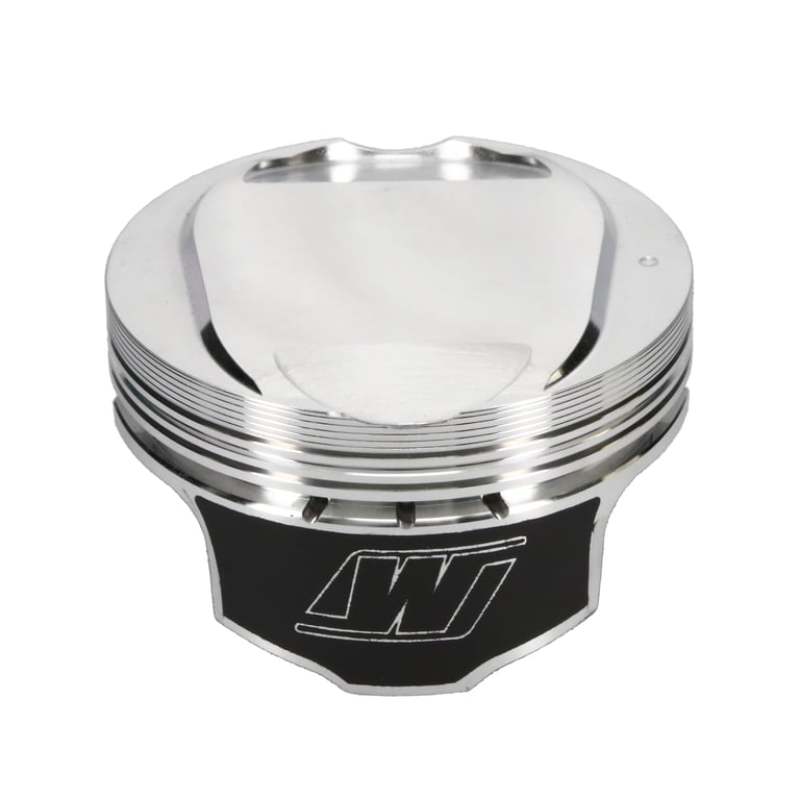

Photo - out of package
User 6
User 4
User 3
Wiseco Chrysler 5.7L HEMI +12cc Dome 1.090CH 3.917in Bore 4.050in Stroke Piston Kit - K0109XS
Wiseco Chrysler 5.7L HEMI +12cc Dome 1.090CH 3.917in Bore 4.050in Stroke Piston Kit - K0109XS
Wiseco Chrysler 5.7L HEMI +12cc Dome 1.090CH 3.917in Bore 4.050in Stroke Piston Kit - K0109XS
Wiseco Chrysler 5.7L HEMI +12cc Dome 1.090CH 3.917in Bore 4.050in Stroke Piston Kit - K0109XS
Wiseco Chrysler 5.7L HEMI +12cc Dome 1.090CH 3.917in Bore 4.050in Stroke Piston Kit - K0109XS
Wiseco Chrysler 5.7L HEMI +12cc Dome 1.090CH 3.917in Bore 4.050in Stroke Piston Kit - K0109XS
Wiseco Chrysler 5.7L HEMI +12cc Dome 1.090CH 3.917in Bore 4.050in Stroke Piston Kit - K0109XS
Wiseco Chrysler 5.7L HEMI +12cc Dome 1.090CH 3.917in Bore 4.050in Stroke Piston Kit - K0109XS

Wiseco

SKU: SKU: WISK0109XS

Wiseco Chrysler 5.7L HEMI +12cc Dome 1.090CH 3.917in Bore 4.050in Stroke Piston Kit - K0109XS

$1,019.99 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Customers also viewed

Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco's Professional Series.

Features

  • Wiseco Chrysler 5.7L Hemi Piston Set, 3.917 in. Bore, 1.090 in. Compression Height, 0.927 in. Pin Diameter, Professional, Set of 8.
  • Chrysler 5.7L Hemi +12cc Dome 1.090 CH
  • Piston Set, Chrysler, 5.7L Hemi, 3.917 in. Bore, Professional, Set of 8

Manufacturer's Limited 30 Day Warranty

Specifications

  • Product Series: Professional
  • Bore Diameter: 3.917 IN
  • Stroke: 4.050 IN
  • Rod Length: 6.125 IN
  • Compression Height: 1.090 IN
  • Piston Volume: 12.00 CC
  • Piston Material: 2618
  • Skirt Coating: Yes
  • Forging Type: Strutted
  • Piston Quantity: 8
  • Ring Set Included: Yes
  • Top Compression Ring Thickness: 1.2 MM
  • Second Compression Ring Thickness: 1.2 MM
  • Oil Ring Thickness: 3.0 MM
  • Wrist Pin Included: Yes
  • Wrist Pin Material: 5115
  • Wrist Pin Style: Floating
  • Wrist Pin Outer Diameter: 0.927 IN
  • Product Type: Engine Piston Set
  • Engine: 5.7L Hemi
  • Make: Chrysler
