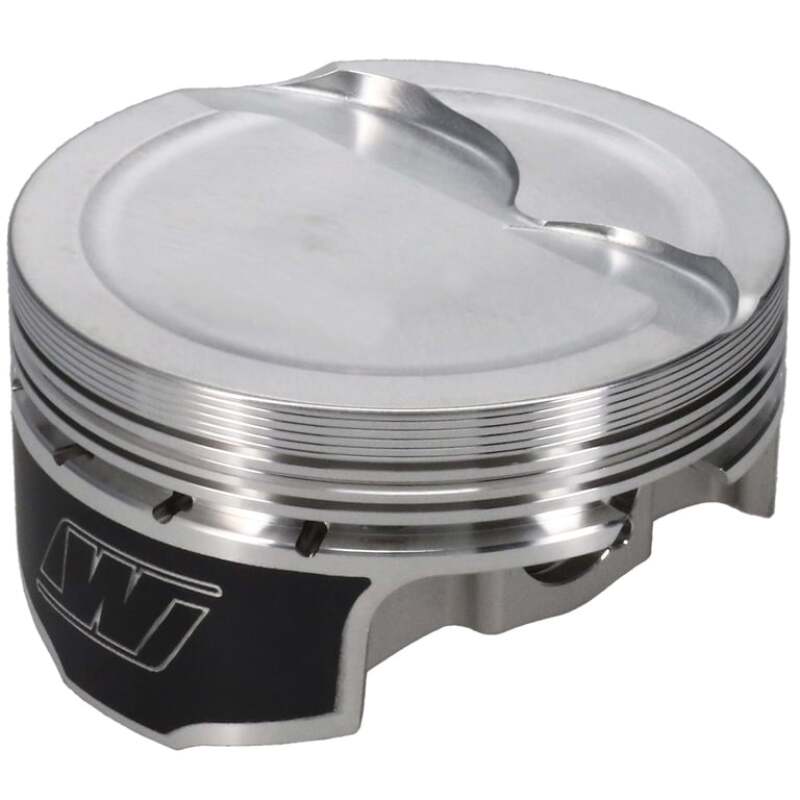

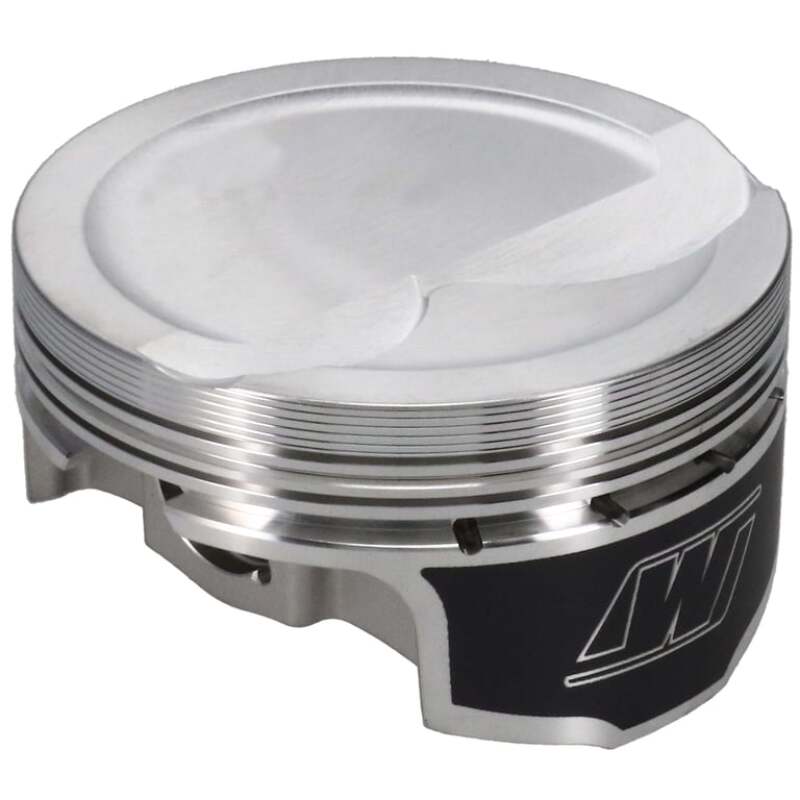

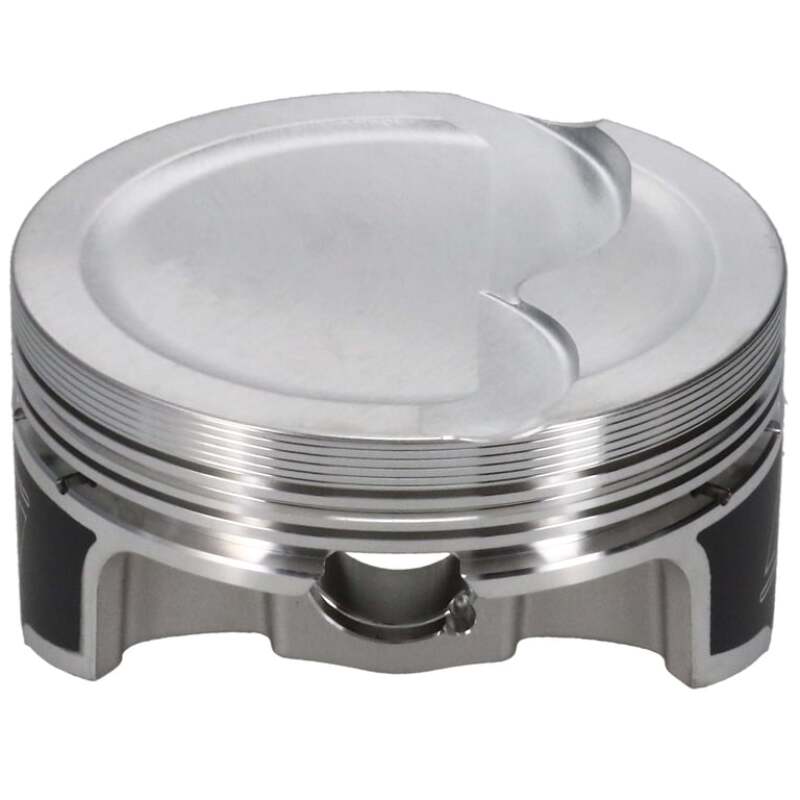

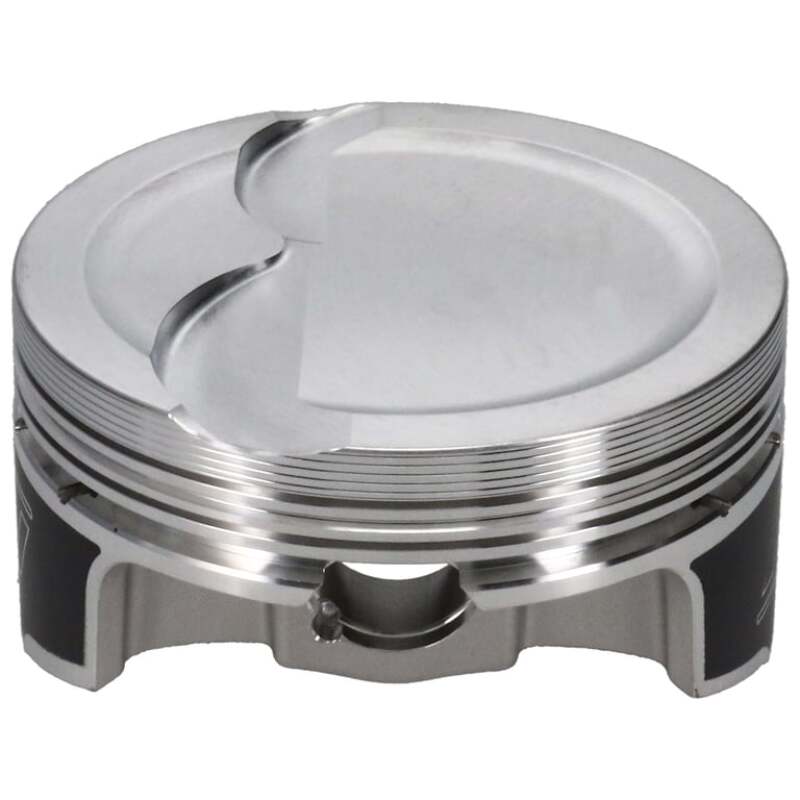

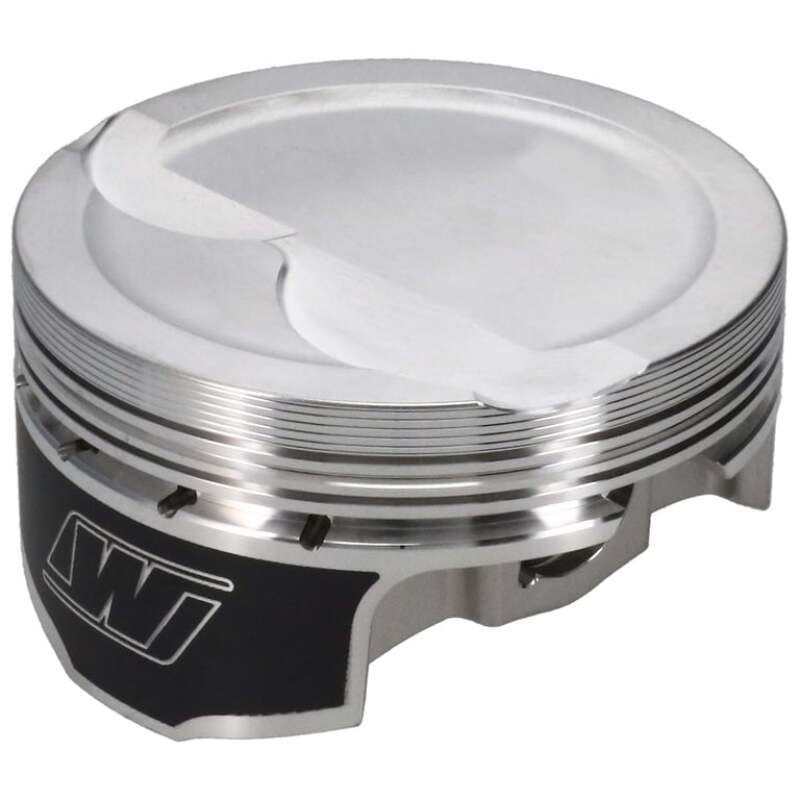

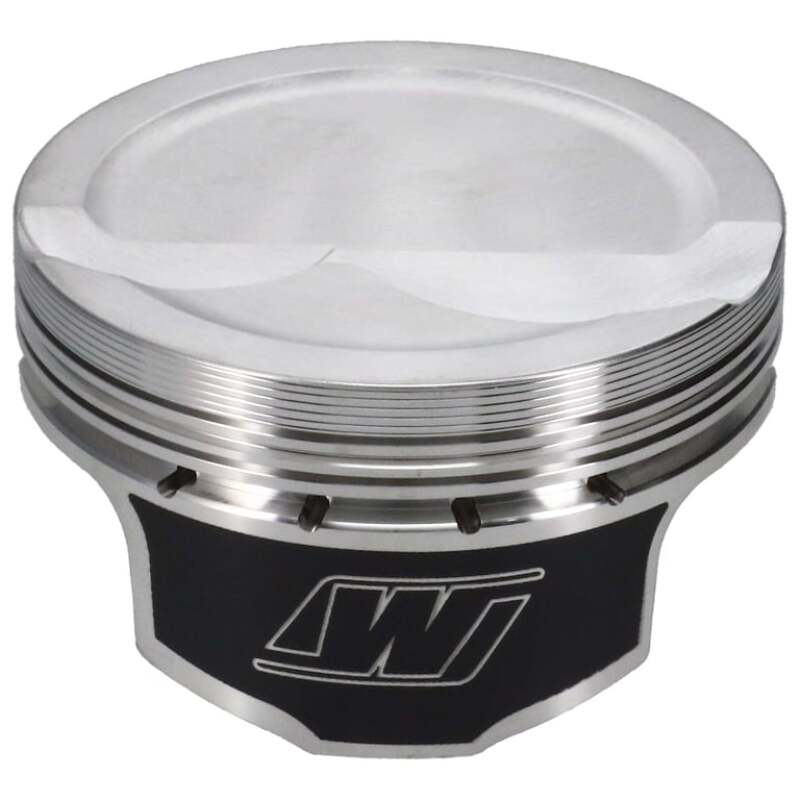

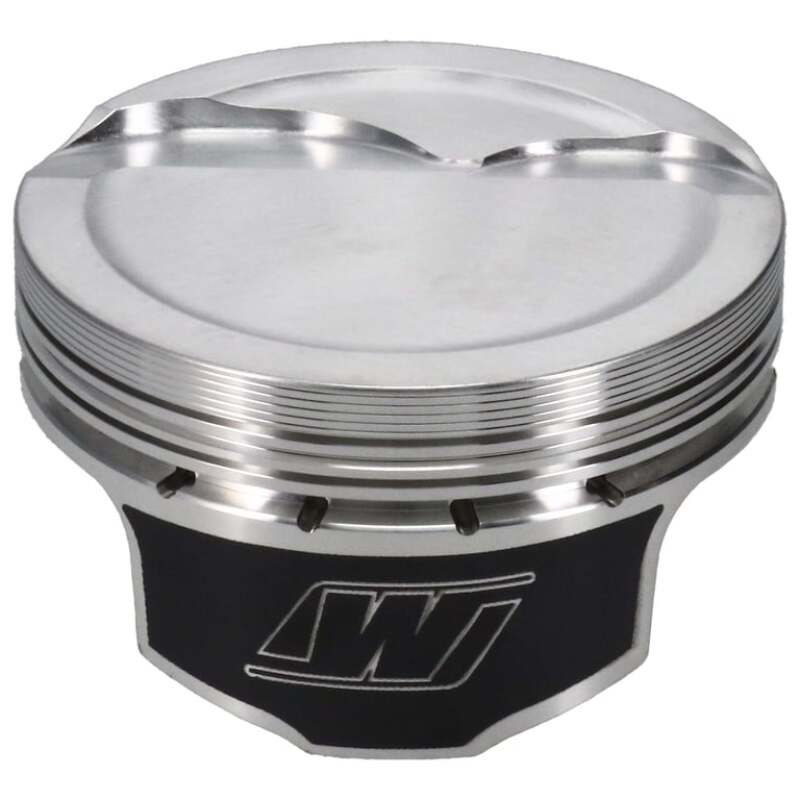

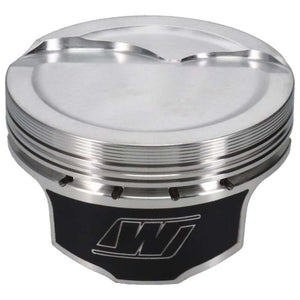

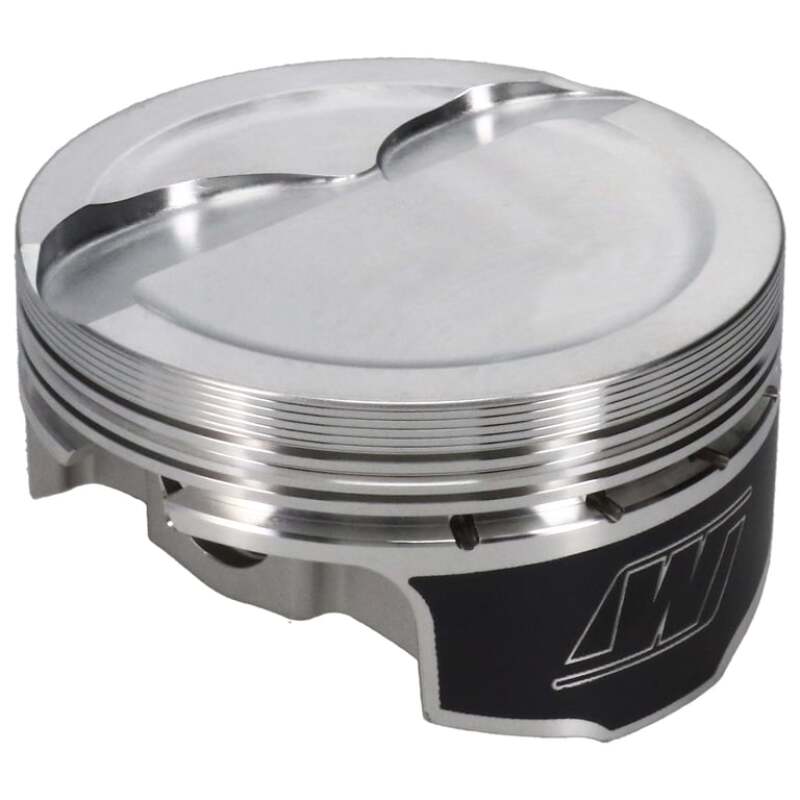

Wiseco Chevy LS RED Series Piston Set 4.035in Bore 1.105in CH 10cc - Set of 8 - RED0082X35
Wiseco Chevy LS RED Series Piston Set 4.035in Bore 1.105in CH 10cc - Set of 8 - RED0082X35
Wiseco Chevy LS RED Series Piston Set 4.035in Bore 1.105in CH 10cc - Set of 8 - RED0082X35
Wiseco Chevy LS RED Series Piston Set 4.035in Bore 1.105in CH 10cc - Set of 8 - RED0082X35
Wiseco Chevy LS RED Series Piston Set 4.035in Bore 1.105in CH 10cc - Set of 8 - RED0082X35
Wiseco Chevy LS RED Series Piston Set 4.035in Bore 1.105in CH 10cc - Set of 8 - RED0082X35
Wiseco Chevy LS RED Series Piston Set 4.035in Bore 1.105in CH 10cc - Set of 8 - RED0082X35
Wiseco Chevy LS RED Series Piston Set 4.035in Bore 1.105in CH 10cc - Set of 8 - RED0082X35
Wiseco Chevy LS RED Series Piston Set 4.035in Bore 1.105in CH 10cc - Set of 8 - RED0082X35
Wiseco Chevy LS RED Series Piston Set 4.035in Bore 1.105in CH 10cc - Set of 8 - RED0082X35

Wiseco Part # WISRED0082X35

Wiseco Chevy LS RED Series Piston Set 4.035in Bore 1.105in CH 10cc - Set of 8 - RED0082X35

$949.99 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Trusted since 2005 Questions? Email sales@raptorracing.com

Appropriately dubbed the RED series, these forged pistons utilize Race Engineered Design to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.

Features

  • Wiseco Chevrolet LS Piston Set, 4.035 in. Bore, 1.105 in. Compression Height, 0.927 in. Pin Diameter, RED Series, Set of 8.

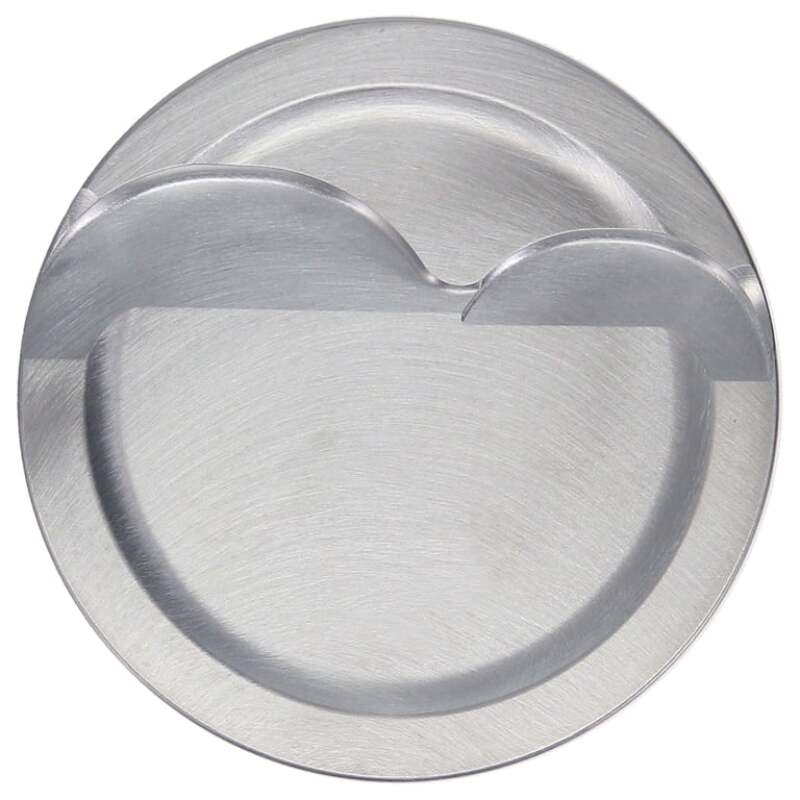

  • Chevrolet -10cc Dish 1.105 X 4.035
  • Piston Set, Chevrolet, LS, 4.035 in. Bore, RED Series, Set of 8.

Manufacturer's Limited 30 Day Warranty

  • Second Compression Ring Thickness: 1.20 MM
  • Second Ring Material: Ductile Iron
  • Oil Ring Thickness: 3.00 MM
  • Oil Ring Tension: Standard
  • Third Ring Material: Stainless Steel
  • Wrist Pin Included: Yes
  • Wrist Pin Part Number: S736
  • Wrist Pin Material: 5115
  • Wrist Pin Style: Floating
  • Wrist Pin Outer Diameter: 0.927 IN
  • Wrist Pin Retainer Included: Yes
  • Wrist Pin Retainer Part Number: W5595
  • Wrist Pin Retainer Quantity: 16
  • Wrist Pin Retainer Style: Wire Lock
  • Wrist Pin Retainer Material: Chrome Silicone
  • Wrist Pin Retainer Thickness: 0.0720 IN
  • Product Type: Engine Piston Set
  • Engine: LS
  • Make: Chevrolet
  • Stroke: 4.000 IN
  • Rod Length: 6.125 IN
  • Compression Height: 1.105 IN
  • Product Series: RED Series
  • Bore Diameter: 4.035 IN
  • Piston Volume: -10.00 CC
  • Piston Material: 2618
  • Skirt Coating: Yes

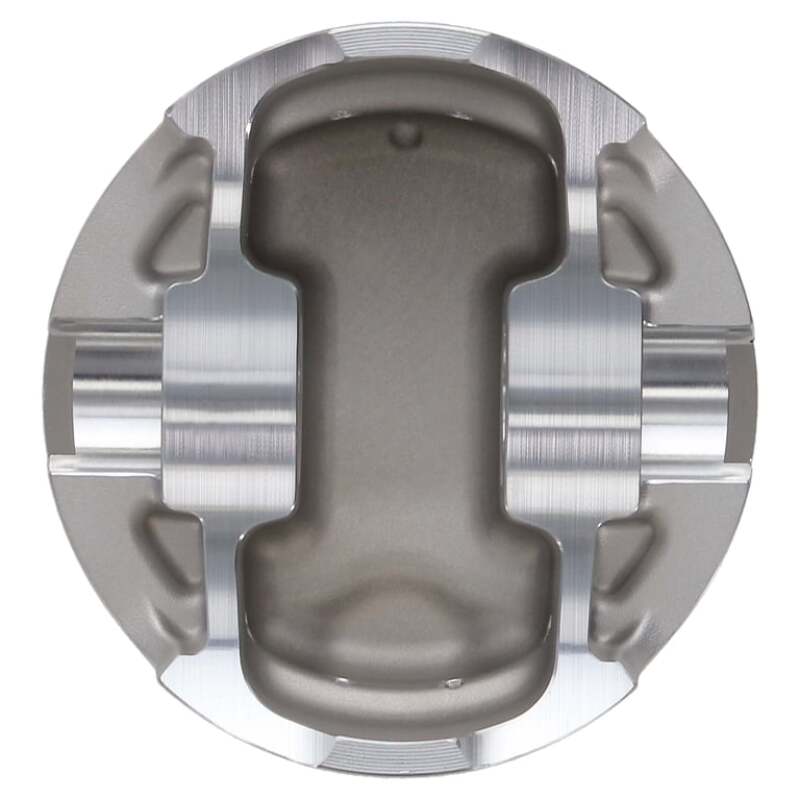

  • Forging Type: Strutted
  • Piston Quantity: 8
  • Wrist Pin Quantity: 8
  • Ring Set Included: Yes
  • Ring Set Part Number: 4037GFX
  • Ring Quantity: 8
  • Top Compression Ring Thickness: 1.20 MM
  • Top Ring Material: Steel
