Wiseco Part # WIS6566M81

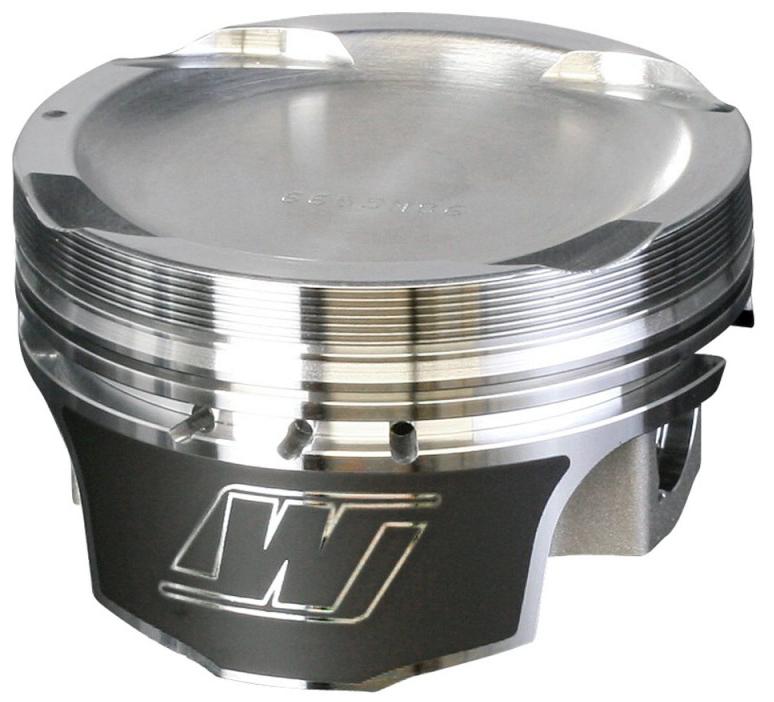

Wiseco Acura 4v DOME +5cc STRUTTED 81.0MM Piston Shelf Stock - 6566M81

$216.99 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco's Professional Series.

Features

  • Wiseco Honda B18 Piston, 3.189 in. Bore, 1.185 in. Compression Height, 0.827 in. Pin Diameter, Professional, Set of 1.
  • ACURA 4v DOME +5cc STRUTTED 81.0MM
  • Piston, Honda, B18, 3.189 in. Bore, Professional, Set of 1.

Manufacturer's Limited 30 Day Warranty

  • Rod Length: 3.047 IN
  • Compression Height: 1.185 IN
  • Cylinder Head: B18
  • Piston Volume: 5.00 CC
  • Piston Material: 2618
  • Skirt Coating: Yes
  • Forging Type: Strutted
  • Piston Quantity: 1
  • Wrist Pin Quantity: 1
  • Ring Set Included: Yes
  • Ring Set Part Number: 8100XX
  • Ring Quantity: 1
  • Top Compression Ring Thickness: 1.00 MM
  • Top Ring Material: Stainless Steel
  • Second Compression Ring Thickness: 1.20 MM
  • Second Ring Material: Ductile Iron
  • Oil Ring Thickness: 2.80 MM
  • Oil Ring Tension: Standard
  • Third Ring Material: Stainless Steel
  • Wrist Pin Included: Yes
  • Wrist Pin Part Number: S656
  • Wrist Pin Material: 5115
  • Wrist Pin Style: Floating
  • Wrist Pin Outer Diameter: 0.827 IN
  • Wrist Pin Retainer Included: Yes
  • Wrist Pin Retainer Part Number: CW21
  • Wrist Pin Retainer Quantity: 2
  • Wrist Pin Retainer Style: Wire Lock
  • Wrist Pin Retainer Material: Chrome Silicon
  • Wrist Pin Retainer Thickness: 0.049 IN
  • Product Type: Engine Piston
  • Engine: B18
  • Make: Honda
  • Product Series: Professional
  • Bore Diameter: 3.189 IN
  • Stroke: 5.287 IN
