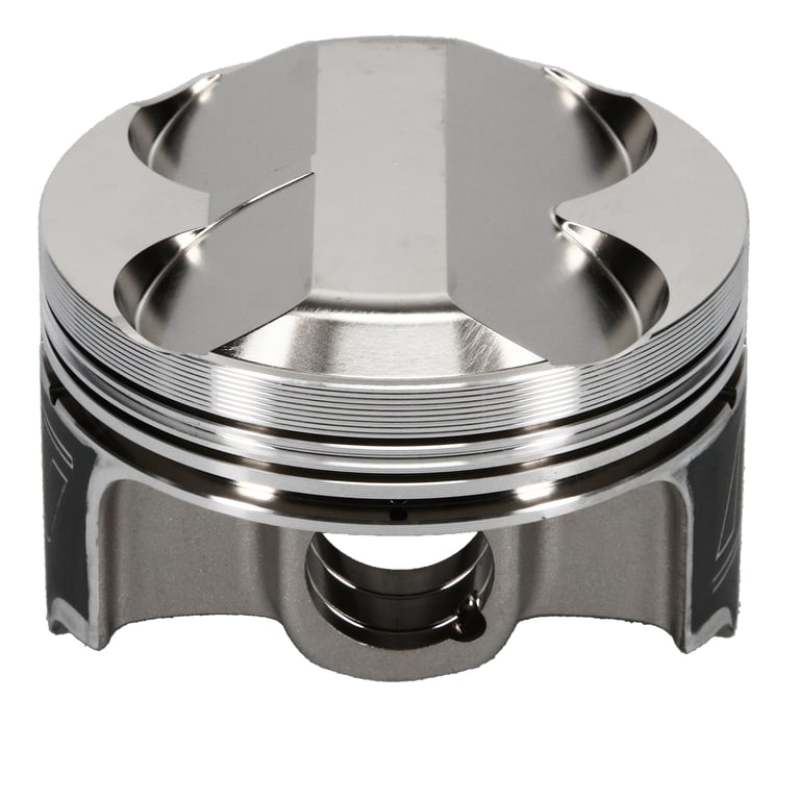

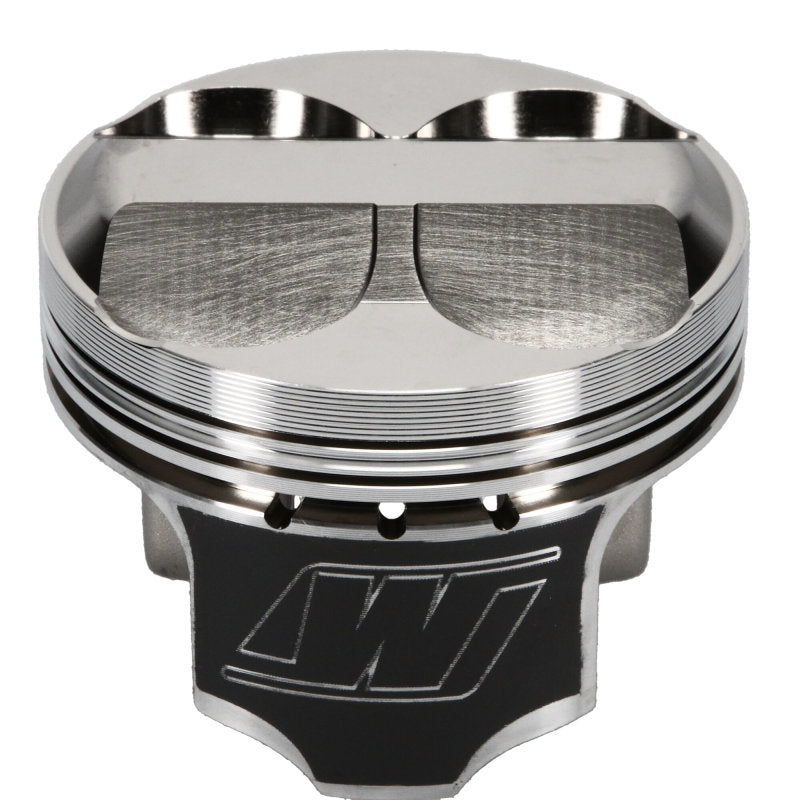

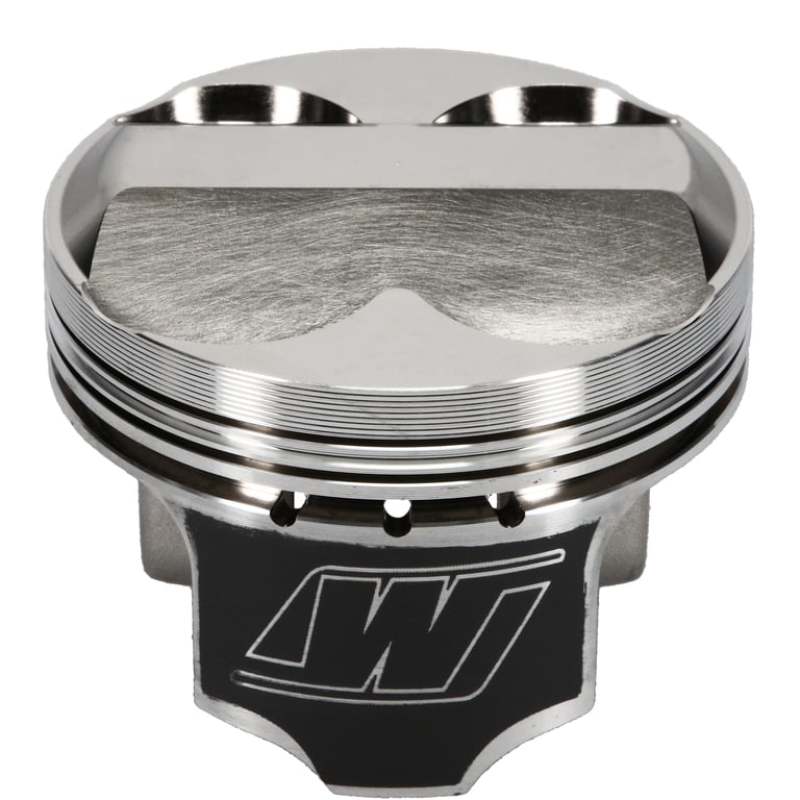

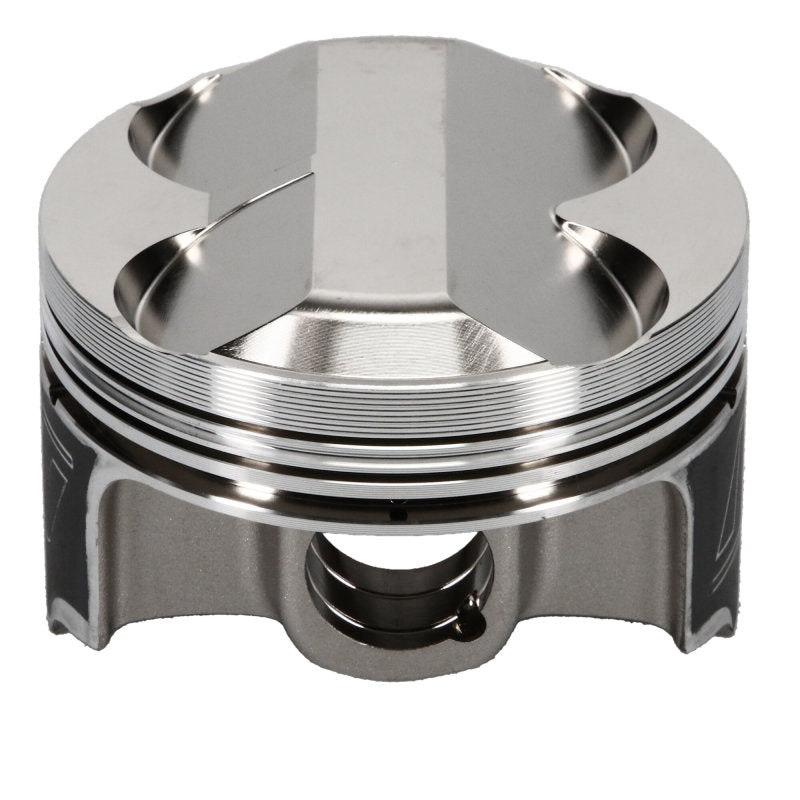

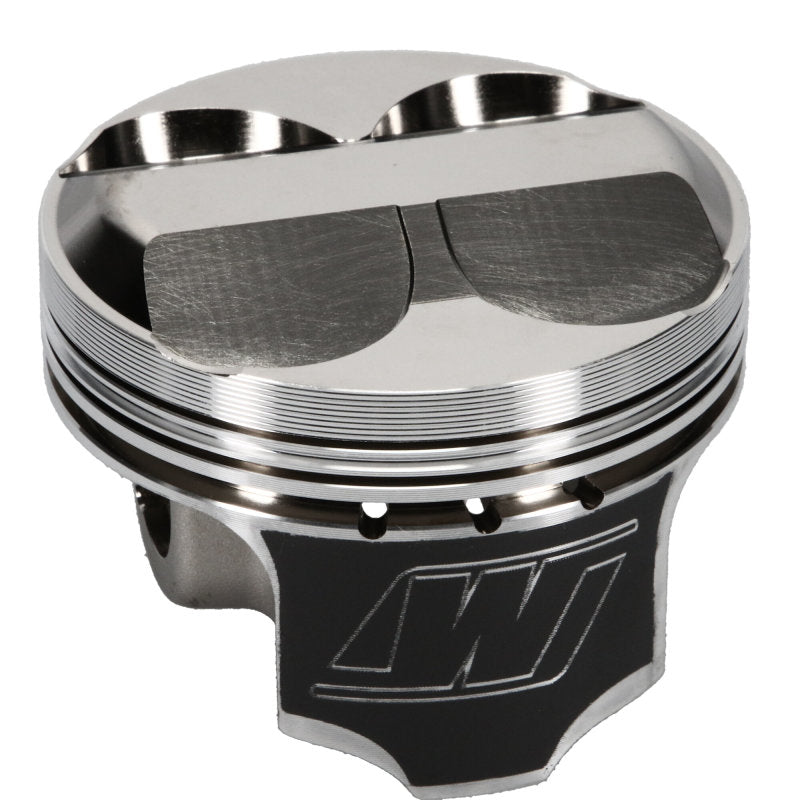

Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - front view

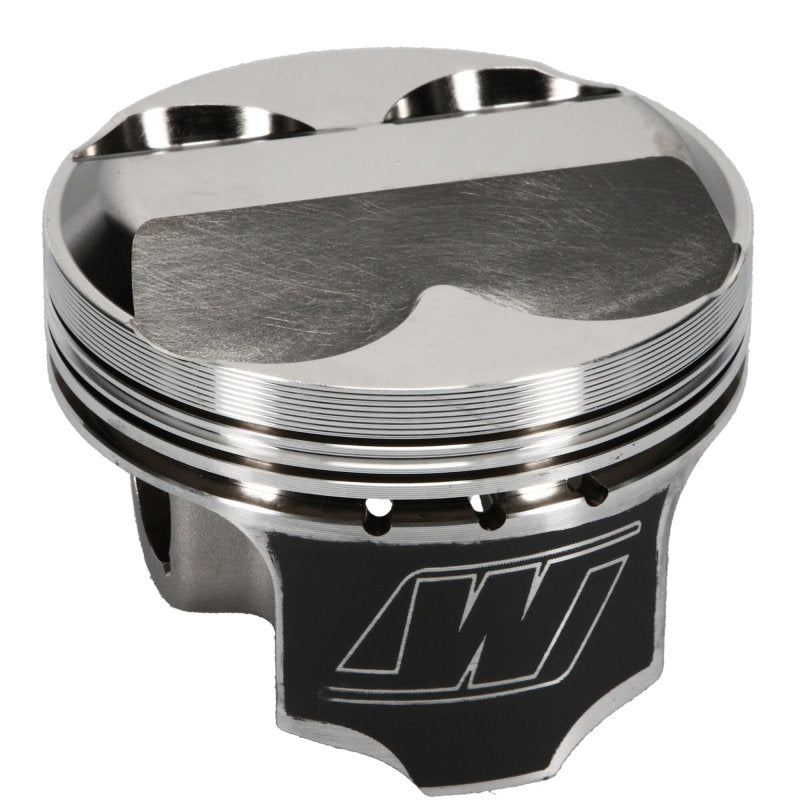

Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - angle view

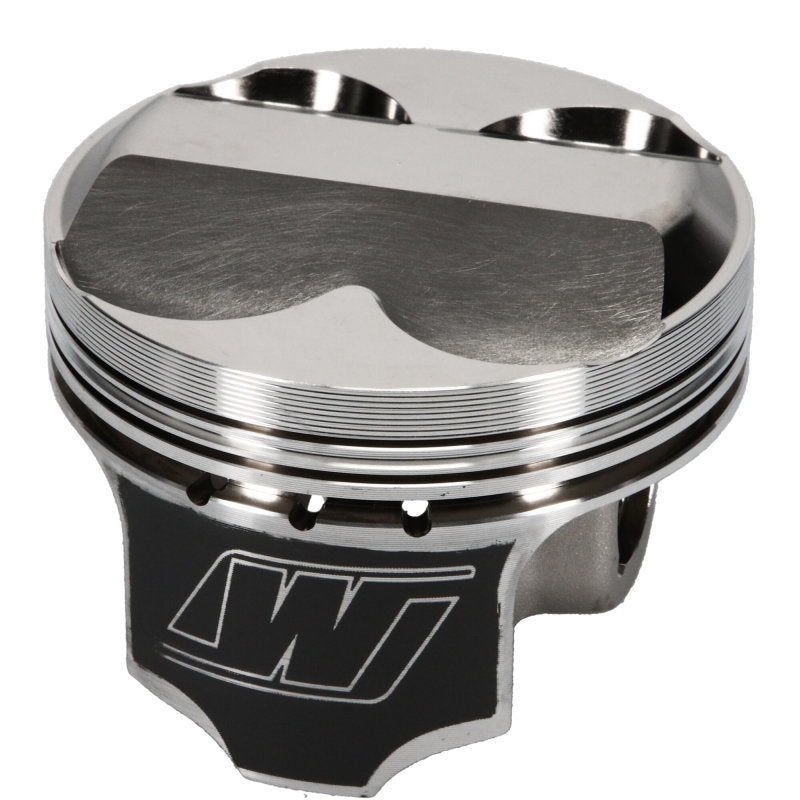

Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - detail view
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - installed view

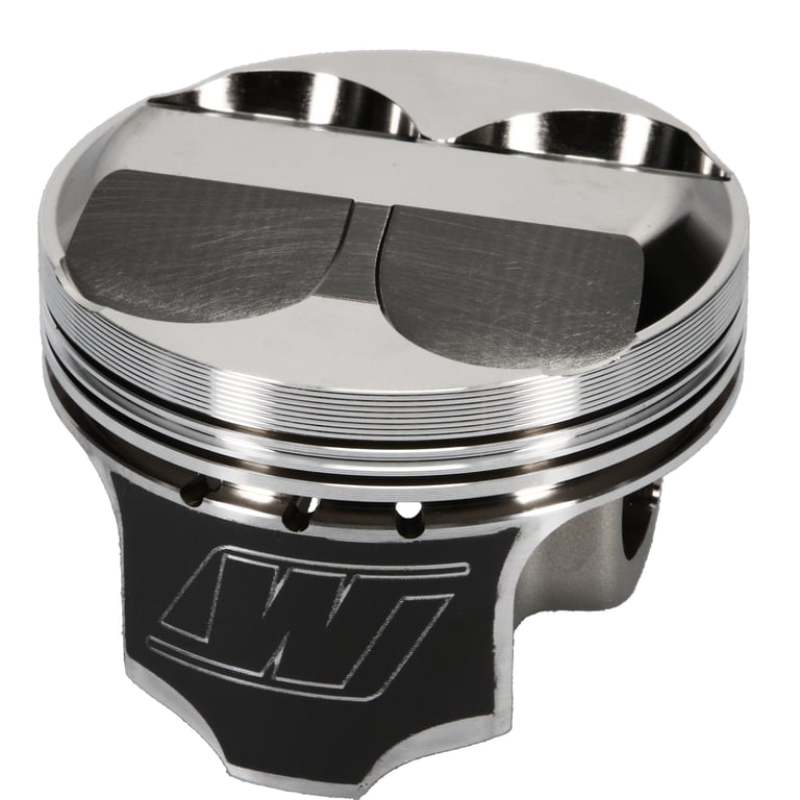

Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - close-up
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - alternate view

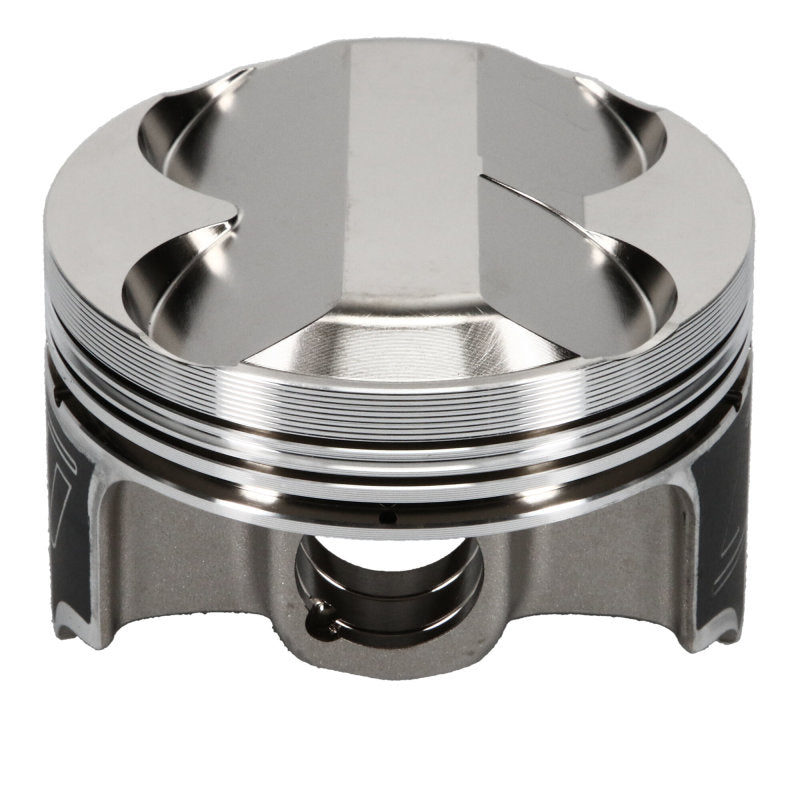

Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - side view

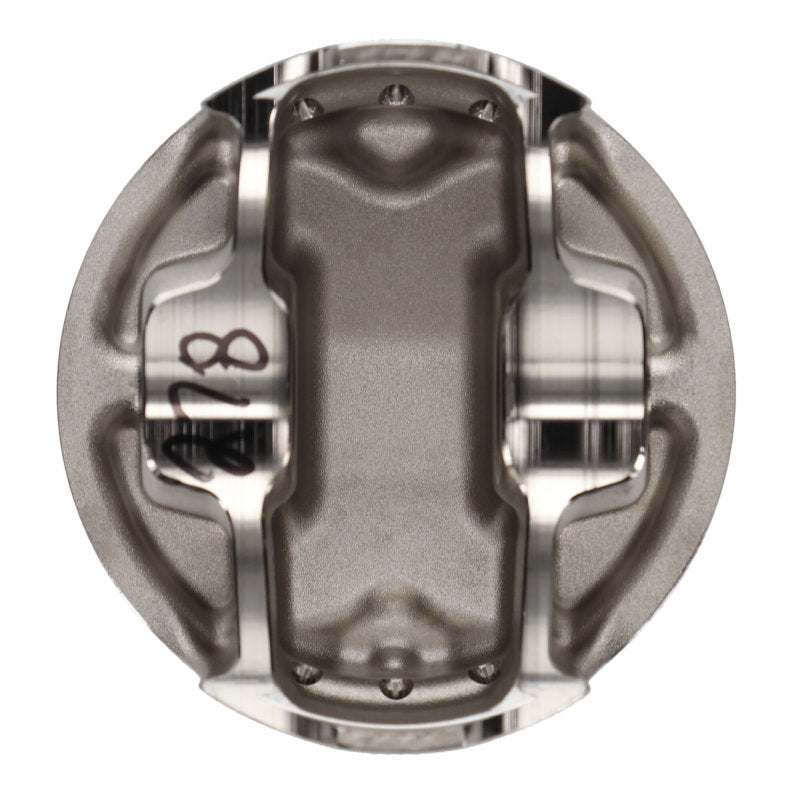

Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - rear view

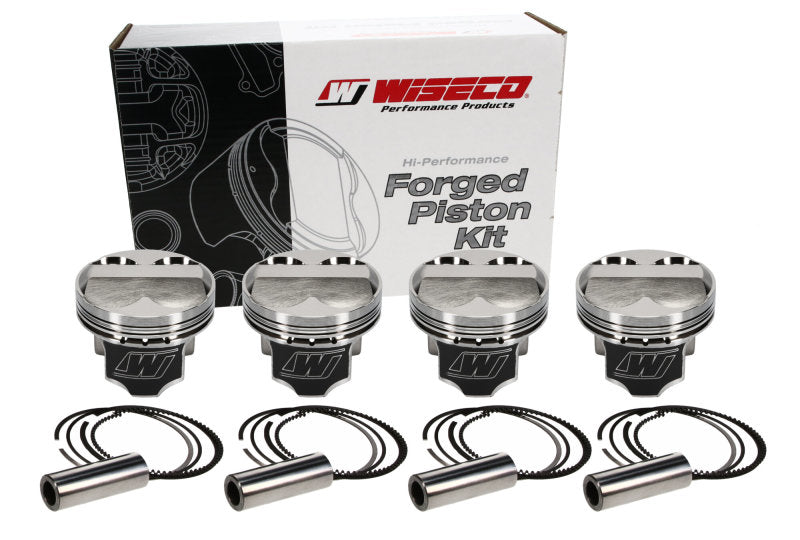

Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - package contents

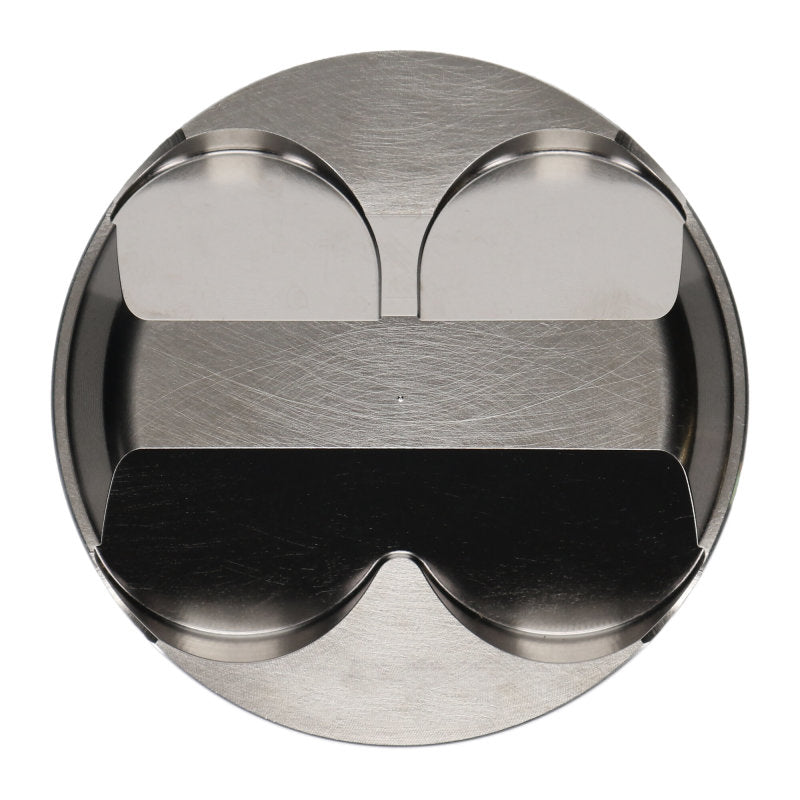

Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - additional view
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - front view
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - angle view
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - detail view
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - installed view
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - close-up
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - alternate view
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - side view
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - rear view
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - package contents
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - additional view
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - front view
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP by Wiseco - angle view
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP
Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP

Wiseco

SKU: SKU: WISK593M82AP

Wiseco AC/HON B 4v DOME +8.25 STRUT 8200XX Piston Kit - K593M82AP

$831.99 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Customers also viewed

Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco's Professional Series.

Features

  • Wiseco Honda B16A Piston Set, 82.00 mm Bore, 30.00 mm Compression Height, 0.827 in. Pin Diameter, Sport Compact, Set of 4.
  • AC/HON B 4v DOME +8.25 STRUT 82.00mm
  • Piston Set, Honda, B16A, 82.00 mm Bore, Sport Compact, Set of 4

Manufacturer's Limited 30 Day Warranty

Specifications

  • Product Series: Professional
  • Bore Diameter: 82.00 MM
  • Compression Height: 30.00 MM
  • Piston Volume: 8.30 CC
  • Piston Material: 2618
  • Skirt Coating: Yes
  • Forging Type: Strutted
  • Piston Quantity: 4
  • Ring Set Included: Yes
  • Top Compression Ring Thickness: 1.0 MM
  • Second Compression Ring Thickness: 1.2 MM
  • Oil Ring Thickness: 2.8 MM
  • Wrist Pin Included: Yes
  • Wrist Pin Material: 5115
  • Wrist Pin Style: Floating
  • Wrist Pin Outer Diameter: 0.827 IN
  • Engine Detail: Honda B16A
  • Product Type: Engine Piston Set
  • Engine: B16A
  • Make: Honda
