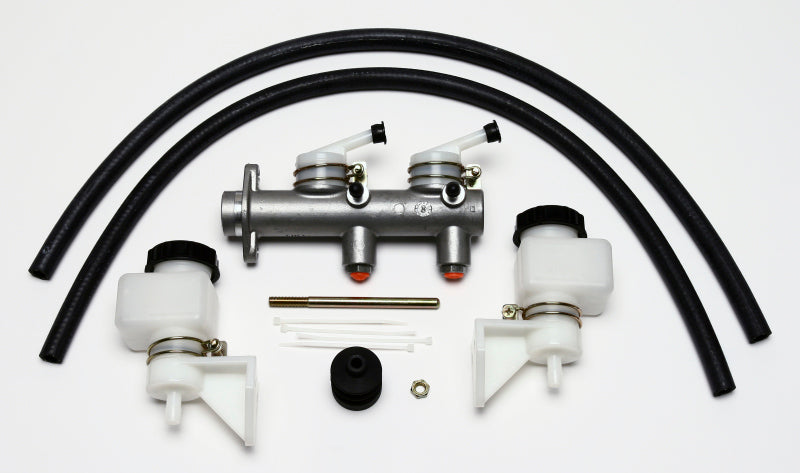

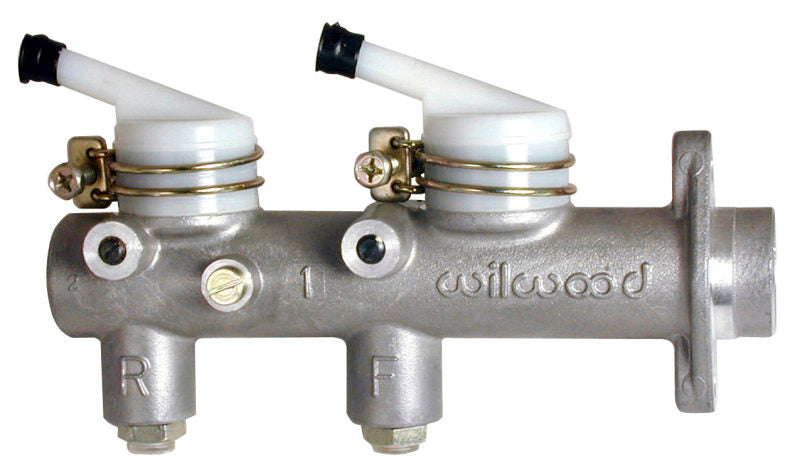

Wilwood's Remote Tandem master cylinders provide one of the safest ways to actuate four wheel or dual caliper axle brake systems. The cylinder features 50/50 output from a 1.00" bore with 1.10" stroke. This master cylinder can be bolted directly to Wilwood's single mount pedals. The kit is shipped complete with the master cylinder, pre-installed 4 ounce reservoirs and 3.38" x 5/16-24 pushrod.
Specifications
- Bore Size: 1.00"
- Area (in²): 0.780
- Stroke: 1.10
- Type: Tandem Outlet
- Outlets: 2
- Material: Aluminum / Plastic
- Finish: Bare
- Res Type: Remote
- Res Size (oz): 4.0 / 4.0 Res Size(cu in) 7.2 / 7.2
- Rebuild Kit: Product Data Sheet
- Overall Length(in): 9.88
- Flange to End Length (in): 7.03"
- Inlet Size (in): 1.35"
- Inlet Fit (in): 3/8" Hose
- Outlet Size 1 (in): 15mm x 1.00
- Outlet Fit 1 (in): 3/8-24 IF Female
- Outlet Size 2 (in): 15mm x 1.00
- Outlet Fit 2 (in): 3/8-24 IF Female
