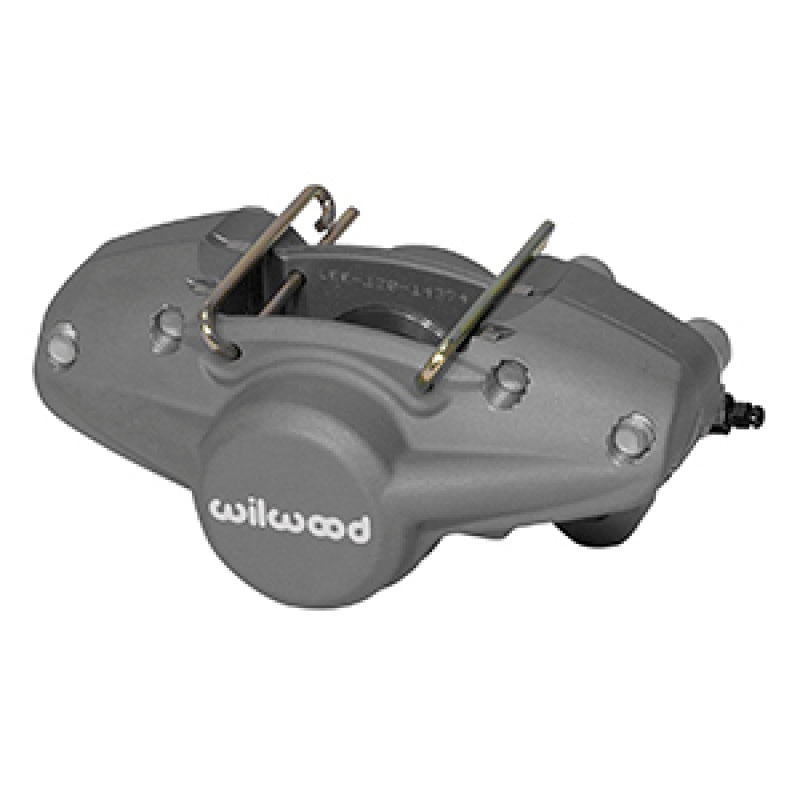

WLD-19 racing calipers provide the ultimate in strength, weight savings, and high efficiency brake clamping for F/F and all other formula category road race vehicles configured for use with the traditional LD19 lug mount style calipers. The calipers feature a high strength, light-weight 2.3 pound forged aluminum body fitted with machined stainless steel pistons in the standard WLD19 model, or heat-blocking Thermlock® pistons in the WLD19/ST models. All WDL19 series calipers utilize the same mounting centers, height and offset as the traditional LD20 calipers. The calipers accept Wilwood type 5310 brake pads, or any brake pad made to fit the original LD19 models.
Specifications
- Piston Count: 2
- Piston Area (in²): 2.06
- Piston Type: Thermlock
- Dust Boot: No
- Rotor Width (in): 0.28
- Rotor Diameter(in): 10.00
- Pad Area (in²): 3.79
- Pad Volume (in³): 1.48
- Material: Forged Aluminium
- Weight(Lbs): 2.3
- Color: Anodize
- Finish: Type III Anodize
- Mount Center(in): 3.50
- Mount Side: Universal
- Mount Type: Lug
- Maximum Rotor Width (in): 0.28
- Minimum Rotor Width (in): 0.22
- Maximum Rotor Diameter(in): 10.00
- Minimum Rotor Diameter(in): 10.00
- Brake Pad Type 1: 5310
- Total Pad Area (in²): 3.79
- Total Pad Volume (in³): 1.48
- Piston 1 Bore (in): 1.62
- Total Piston Area (in²): 2.06
- Mount Hole Size(in): 0.39
- Mount Height(in): 1.76
- Inlet Thread Size: 3/8-24
- O-Ring Kit: 130-4346
- Cross-Over O-Ring Kit: 130-10540
- Wear Plate L/H: 300-12146
- Wear Plate R/H: 300-12146
- Pad Retainer: 180-3861
- Bleed Screw Kit: 220-0627
