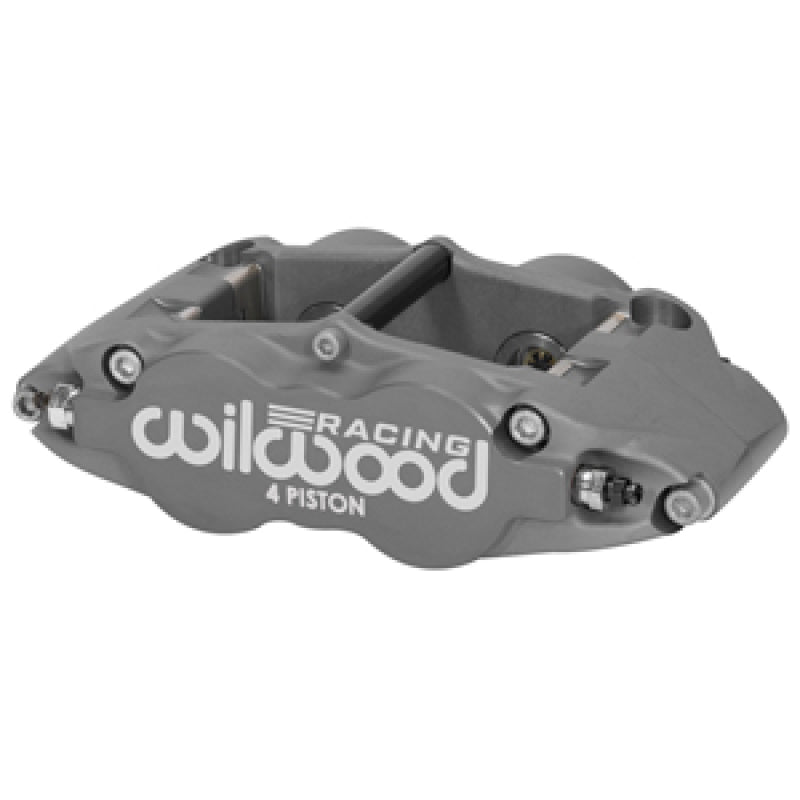

FNSLR/ST forged billet calipers, with four Thermlock pistons, deliver championship proven performance with piston sizes to provide matched rear braking bias for use with the Aero6/ST or other larger piston front calipers. FNSL4R/ST calipers incorporate race technology into a radial mount body design with widespread adaptability. Including competition update options for all FNSL4R rear Big Brake kits. Thermlock pistons, high-temp seals, SRS bridge plates, and two-piece bleed screw assemblies are standard in all calipers. Four high-temp race only brake pad compounds in the 7416 pad type allow precise tuning of the brake response, friction requirements and temperature range.
Specifications
- Piston Count: 4
- Piston Area (in²): 1.98
- Piston Type: Thermlock
- Dust Boot: No
- Rotor Width (in): 1.10
- Rotor Diameter(in): 14.00
- Pad Area (in²): 8.2
- Pad Volume (in³): 3.8
- Material: Forged Aluminium
- Weight(Lbs): 5.0
- Color: Anodize
- Finish: Type III Anodize
- Mount Center(in): 5.98
- Mount Side: Universal
- Mount Type: Radial
- Maximum Rotor Width (in): 1.10
- Minimum Rotor Width (in): 1.00
- Maximum Rotor Diameter(in): 14.00
- Minimum Rotor Diameter(in): 11.75
- Brake Pad Type 1: 7416
- Total Pad Area (in²): 8.2
- Total Pad Volume (in³): 3.8
- Piston 1 Bore (in): 1.12
- Piston 2 Bore (in): 1.12
- Total Piston Area (in²): 1.98
- Mount Hole Size(in): 0.39
- Mount Height(in): 1.45
- Inlet Thread Size: 1/8-27 NPT
- O-Ring Kit: 130-2579
- Replacement Piston 1: 200-11342
- Replacement Piston 2: 200-11342
- Cross-Over O-Ring Kit: 130-10540
- Bridge Bolt Kit: 230-17553
- Wear Plate L/H: 300-6596
- Wear Plate R/H: 300-6595
- Bleed Screw Kit: 220-0627
