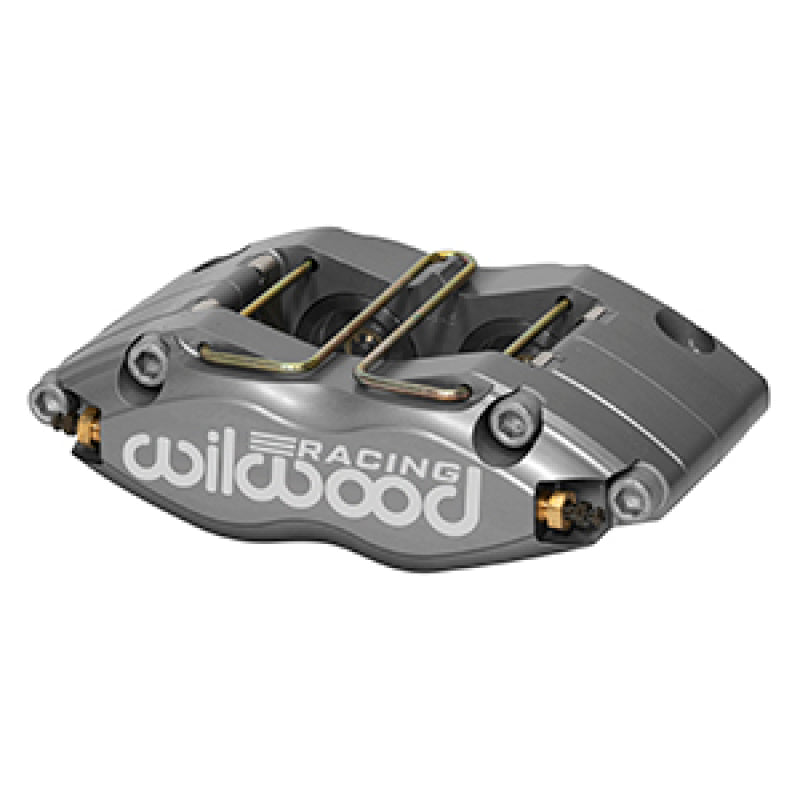

The Wilwood Dynapro-ST four piston radial mount calipers (DPR-ST) combines the versatility of radial mounting with a with the ultimate heat protection using Thermlock® pistons and extreme durability in adverse conditions. The Dynapro series of calipers has become a favored choice for a broad range of sports, rally, and off-road driving applications. Thermlock® pistons in the ST models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons.
Specifications
- Piston Count: 4
- Piston Area (in²): 4.80
- Piston Type: Thermlock
- Dust Boot: Yes
- Rotor Width (in): 0.81
- Rotor Diameter(in): 12.19
- Pad Area (in²): 6.36
- Pad Volume (in³): 3
- Material: Forged Aluminium
- Weight(Lbs): 4.3
- Color: Anodize
- Finish: Type III Anodize
- Mount Center(in): 5.98
- Mount Side: Universal
- Mount Type: Radial
- Maximum Rotor Width (in): 0.86
- Minimum Rotor Width (in): 0.75
- Maximum Rotor Diameter(in): 12.19
- Minimum Rotor Diameter(in): 10.75
- Brake Pad Type 1: 7816
- Total Pad Area (in²): 6.36
- Total Pad Volume (in³): 3
- Piston 1 Bore (in): 1.75
- Piston 2 Bore (in): 1.75
- Total Piston Area (in²): 4.80
- Mount Hole Size(in): 0.39
- Mount Height(in): 1.61
- Inlet Thread Size: 1/8-27 NPT
- O-Ring Kit: 130-2655
- Replacement Piston 1: 200-7551
- Replacement Piston 2: 200-7551
- Cross-Over O-Ring Kit: 130-10540
- Wear Plate L/H: 300-5876
- Wear Plate R/H: 300-5876
- Pad Retainer: 300-7316
- Bleed Screw Kit: 220-6069
