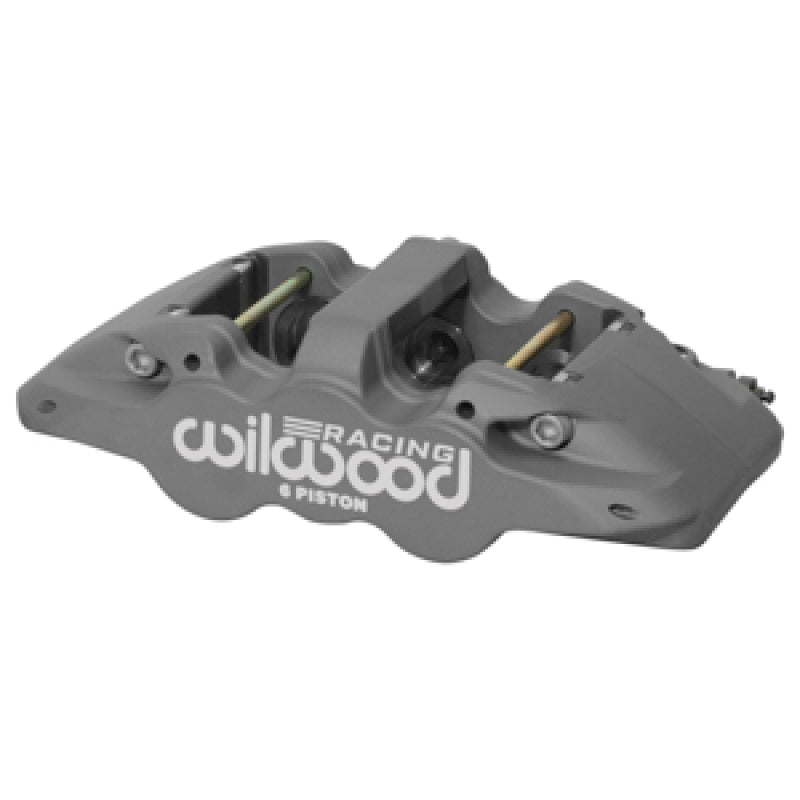

The new Aero6/ST forged six piston caliper delivers heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability. Radial mounting, multiple options for piston volume, and a rotor diameter ranging from 12.88" to 15.00" give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new Aero6 is the latest innovation to the W4A / W6A series of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes and massive center bridge assembly. Equipped with Thermlock piston technology and Wilwood’s Type III anodize coating. Aero6/ST calipers utilizing the new .80” thick 6620 pad plate, give extra pad life for high heat endurance racing.
Specifications
- Piston Count: 6
- Piston Area (in²): 5.40
- Piston Type: Thermlock
- Dust Boot: No
- Rotor Width (in): 1.25
- Rotor Diameter(in): 15.00
- Pad Area (in²): 11.1
- Pad Volume (in³): 6.6
- Material: Forged Aluminium
- Weight(Lbs): 7.1
- Color: Anodize
- Finish: Type III Anodize
- Mount Center(in): 7.09
- Mount Side: Left Hand
- Mount Type: Radial
- Maximum Rotor Width (in): 1.28
- Minimum Rotor Width (in): 1.10
- Maximum Rotor Diameter(in): 15.00
- Minimum Rotor Diameter(in): 12.19
- Brake Pad Type 1: 6620
- Total Pad Area (in²): 11.1
- Total Pad Volume (in³): 6.6
- Piston 1 Bore (in): 1.75
- Piston 2 Bore (in): 1.38
- Piston 3 Bore (in): 1.38
- Total Piston Area (in²): 5.40
- Mount Hole Size(in): 0.45
- Mount Height(in): 2.09
- Inlet Thread Size: 1/8-27 NPT
- O-Ring Kit: 130-3084
- Replacement Piston 1: 200-7551
- Replacement Piston 2: 200-7554
- Replacement Piston 3: 200-7554
- Wear Plate L/H: 300-5876
- Wear Plate R/H: 300-5876
- Pad Retainer: 180-9874
- Bleed Screw Kit: 220-0627
