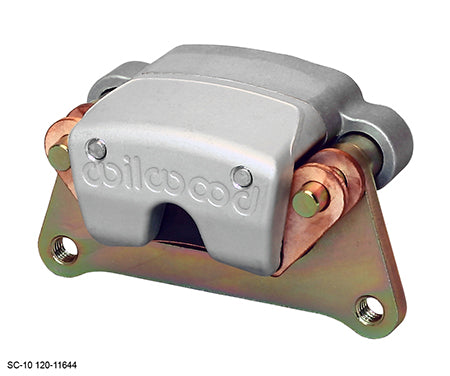

Designed, engineered and manufactured in the U.S.A., this floating die cast aluminum caliper is a strong, compact, inexpensive answer to the braking needs of recreational, agricultural and industrial vehicles. Features of this dual piston design with 1.06” bore size, dual inlet/ outlet fittings for versatility in mounting position by swapping the bleed screw and banjo bolt inlet. Inlets are threaded 10mm x 1.00. Sintered metallic brake pads and brackets are included.
Specifications
- Piston Count: 2
- Piston Area (in²): 1.76
- Piston Type: Aluminum
- Dust Boot: No
- Rotor Width (in): 0.25
- Rotor Diameter(in): 9.00
- Material: Cast Aluminium
- Weight(Lbs): 1.8
- Color: Clear
- Finish: Clear Anodize
- Mount Center(in): 4.30
- Mount Side: Universal
- Mount Type: Floating
- Maximum Rotor Width (in): 0.25
- Minimum Rotor Width (in): 0.15
- Maximum Rotor Diameter(in): 9.00
- Minimum Rotor Diameter(in): 6.50
- Brake Pad Type 1: 10008
- Piston 1 Bore (in): 1.06
- Piston 2 Bore (in): 1.06
- Total Piston Area (in²): 1.76
- Mount Height(in): 1.72
- Inlet Thread Size: M10 x 1.00
- O-Ring Kit: 130-10539
- Replacement Dust Boot: 210-13419
- Replacement Piston 1: 200-11647
- Bleed Screw Kit: 220-5933
