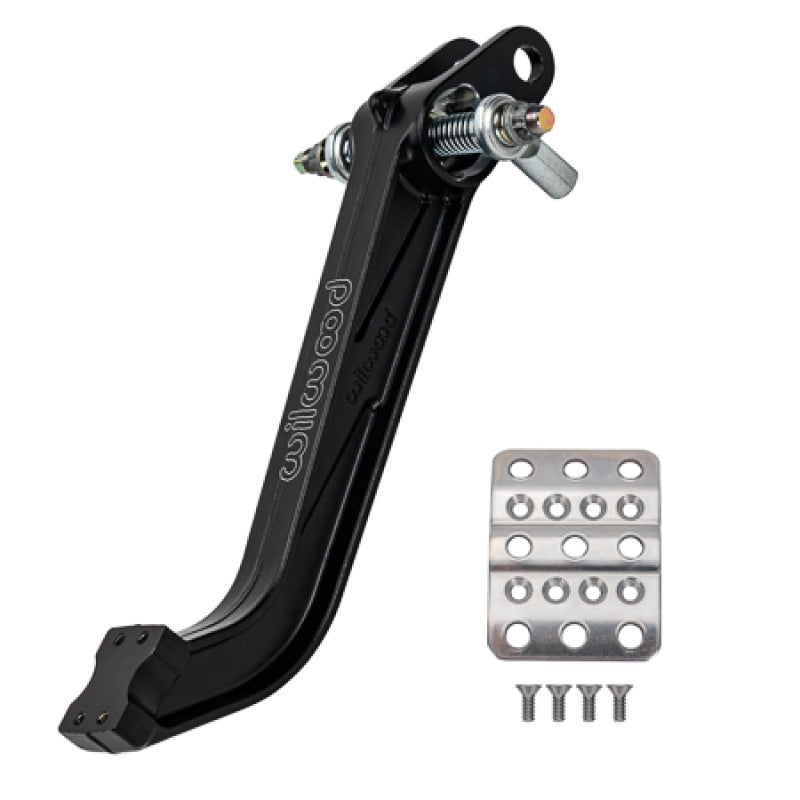

Wilwood’s new Tru-Bar Forward Mount Pedal Replacement Kit includes the Tru-Bar Brake pedal & trunnion assembly with the appropriate hardware to retrofit earlier design forged or cast pedal assemblies with standard balance bars. Pedals feature an all-aluminum frame and forged aluminum pedal arms with ladder style construction. Pedal pads are of special adjustable design that allows fine-tuning of the pedal location and clearance. Included with this assembly: trunnion, clevis hardware required in the conversion. 340-14922 kits will convert the following 7 to 1 ratio reverse mount assemblies:, 340-1287 and 340-13832
Specifications
- Material: Aluminum
- Finish: Black E-coat
- Mount Loc: Swing
- Mount Facing: Forward
- Pedal 1 Ratio: 7.0 to 1
- Pedal 2 Ratio: Pedal 1 Length (in)
