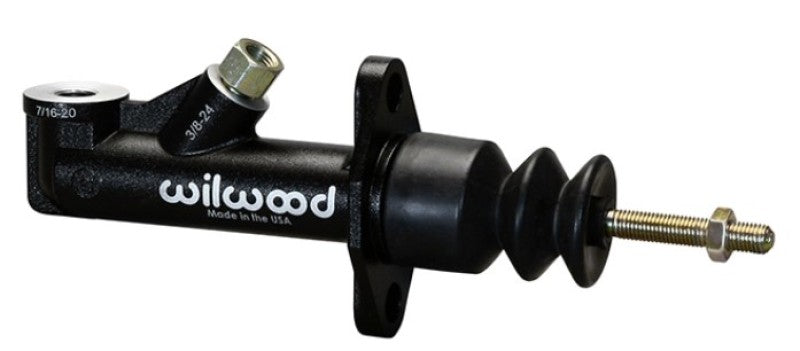

Wilwood's new GS Compact Remote Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Remote cylinders feature a standard 7/16-20 threaded inlet. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.
Specifications
- Bore Size: .70
- Area (in²): 0.380
- Stroke: 1.25
- Volume (cu in): 0.48
- Type: Single Outlet
- Outlets: 1
- Material: Aluminum
- Finish: Black E-coat
- Res Type: Remote
- Res Size (oz): Res Size(cu in)
- Rebuild Kit: Product Data Sheet
- Overall Length(in): 7.85"
- Flange to End Length (in): 4.10
- Inlet Size (in): 7/16-20
- Outlet Size 1 (in): 3/8-24
- Outlet Fit 1 (in): 3/8-24 IF Female
