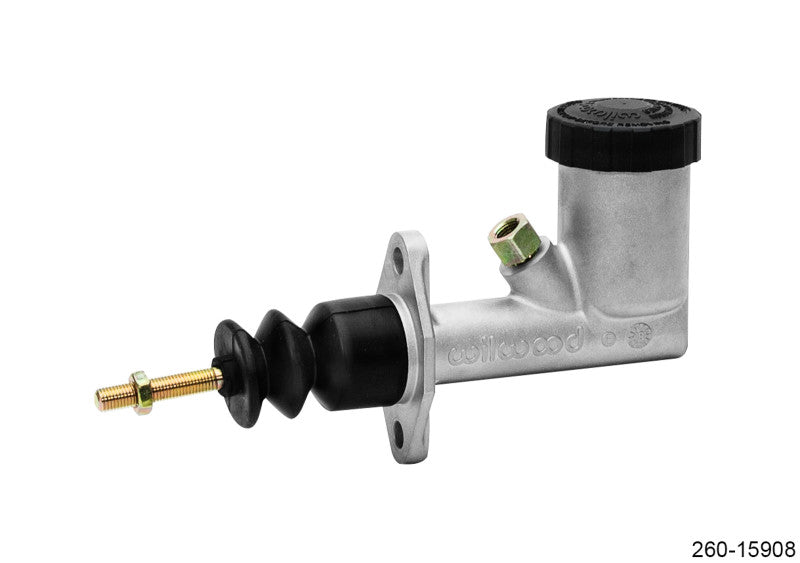

Wilwood's new GS Compact Integral Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Integral cylinders feature a positive seal internal bellows cap. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.
Specifications
- Bore Size: 3/4"
- Area (in²): 0.440
- Stroke: 1.25
- Volume (cu in): 0.55
- Type: Single Outlet
- Outlets: 1
- Material: Aluminum
- Finish: Black E-coat
- Res Type: Integral
- Res Size (oz): 1.5 Res Size(cu in) 2.7
- Rebuild Kit: Product Data Sheet
- Overall Length(in): 7.99"
- Flange to End Length (in): 3.96
- Outlet Size 1 (in): 3/8-24
- Outlet Fit 1 (in): 3/8-24 IF Female
