Wilwood Part # WIL120-14318-RS

Wilwood Caliper-TC6R 1.75/1.38/1.38in Pistons 1.38in Disc - 120-14318-RS

$703.99 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

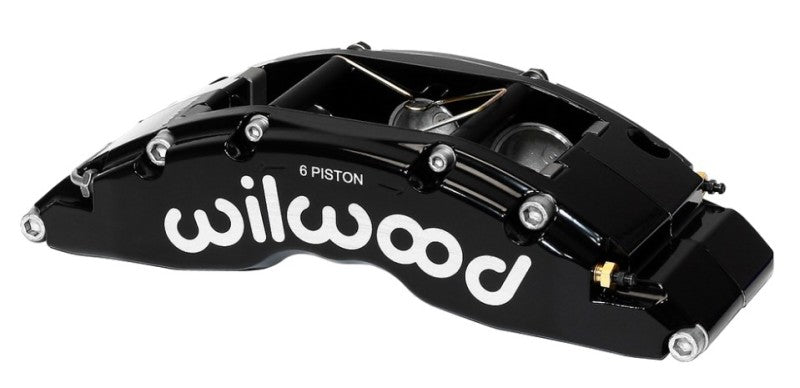

The TC 6R Radial Mount Caliper represents a complete new generation of refinement in Big Brake Technology from Wilwood. Six stainless pistons captured within a massive high strength forged aluminum body generate the stopping power and durability to stylishly handle the heavy loads of custom late model trucks and sport utility vehicles.

  • Piston Count: 6
  • Piston Area (in²): 5.40
  • Piston Type: Stainless
  • Dust Boot: No
  • Rotor Width (in): 1.38
  • Rotor Diameter(in): 16.00
  • Pad Area (in²): 13
  • Pad Volume (in³): 6
  • Material: Forged Aluminium
  • Weight(Lbs): 9.2
  • Color: Black
  • Finish: Black Powder Coat
  • Mount Center(in): 8.27
  • Mount Position: Rear Mount
  • Mount Side: Left Hand
  • Mount Type: Radial
  • Maximum Rotor Width (in): 1.38
  • Minimum Rotor Width (in): 1.32
  • Maximum Rotor Diameter(in): 16.00
  • Minimum Rotor Diameter(in): 14.00
  • Brake Pad Type 1: 6318
  • Total Pad Area (in²): 13
  • Total Pad Volume (in³): 6
  • Piston 1 Bore (in): 1.75
  • Piston 2 Bore (in): 1.38
  • Piston 3 Bore (in): 1.38
  • Total Piston Area (in²): 5.40
  • Mount Hole Size(in): 0.45
  • Mount Height(in): 2.56
  • Inlet Thread Size: 1/8-27 NPT
  • O-Ring Kit: 130-3084
  • Replacement Piston 1: 200-7528
  • Replacement Piston 2: 200-7518
  • Replacement Piston 3: 200-7518
  • Bridge Bolt Kit: 230-9171
  • Wear Plate L/H: 300-8894
  • Wear Plate R/H: 300-8893
  • Bleed Screw Kit: 220-6069
  • Cross-Over Tube: 190-9172
