Wilwood Part # WIL120-15374

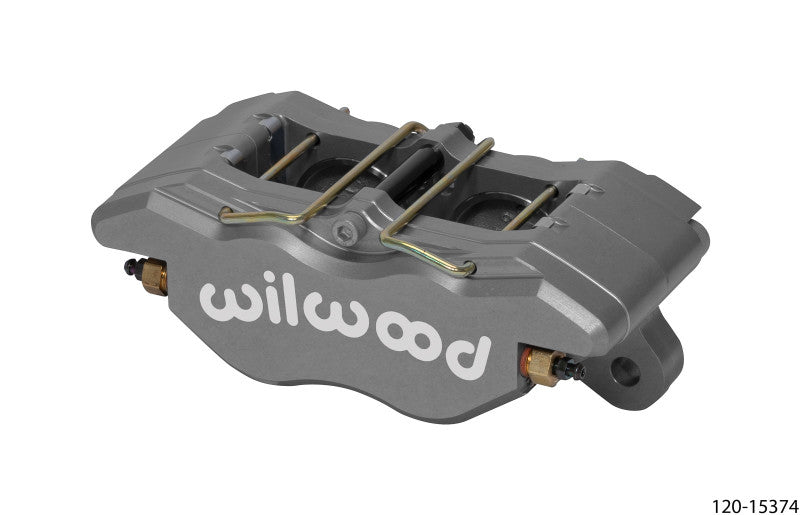

Wilwood Caliper - Off-Road Dynapro Narrow 5.25in Mount - 1.75/1.75in Pistons .38in Disc - Gray - 120-15374

$308.81 USD

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

The DynaPro Narrow Lug Mount (DPN) forged billet caliper represents the newest version of calipers available with narrower outboard clearance. DPN calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance. Available in Wilwood’s Type III anodize or enhanced with black or red powder coat finish.

  • Piston Count: 4
  • Piston Area (in²): 4.80
  • Piston Type: Stainless
  • Dust Boot: No
  • Rotor Width (in): 0.38
  • Rotor Diameter(in): 13.06
  • Pad Area (in²): 6.36
  • Pad Volume (in³): 2.1
  • Material: Forged Aluminium
  • Weight(Lbs): 3.6
  • Color: Anodize
  • Finish: Type III Anodize
  • Mount Center(in): 5.25
  • Mount Side: Universal
  • Mount Type: Lug
  • Maximum Rotor Width (in): 0.42
  • Minimum Rotor Width (in): 0.31
  • Maximum Rotor Diameter(in): 13.06
  • Minimum Rotor Diameter(in): 10.00
  • Brake Pad Type 1: 7812
  • Total Pad Area (in²): 6.36
  • Total Pad Volume (in³): 2.1
  • Piston 1 Bore (in): 1.75
  • Piston 2 Bore (in): 1.75
  • Total Piston Area (in²): 4.80
  • Mount Hole Size(in): 0.39
  • Mount Height(in): 2.10
  • Inlet Thread Size: 1/8-27 NPT
  • O-Ring Kit: 130-2655
  • Replacement Piston 1: 200-15375
  • Replacement Piston 2: 200-15375
  • Cross-Over O-Ring Kit: 130-10540
  • Wear Plate L/H: 300-5875
  • Wear Plate R/H: 300-5875
  • Pad Retainer: 300-9634
  • Bleed Screw Kit: 220-0627
