Wilwood Part # WIL120-15354-RD

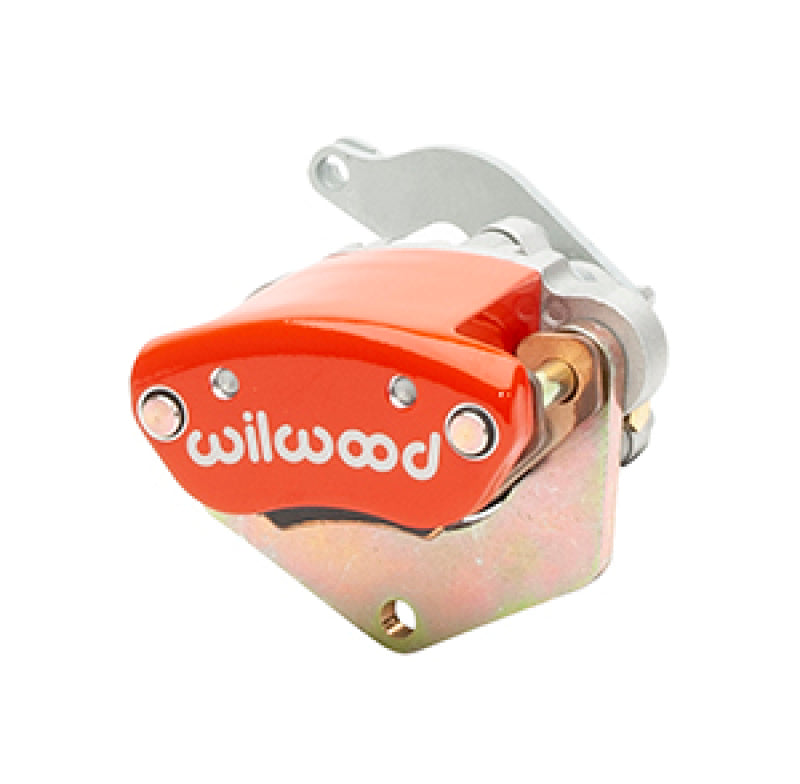

Wilwood Caliper-MC4 Mechanical-L/H - Red w/ Logo 1.19in Piston .81in Disc - 120-15354-RD

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable-operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Available calipers are built to accept rotors from .310” to 1.10” thick by part number, with an 11.00” - 14.00” diameter range, the MC4 combines an efficient die-cast body with a forged billet anvil for superior strength under load yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads and are pre-fitted with noise-canceling shields.

  • Piston Count: 1
  • Piston Area (in²): 1.11
  • Piston Type: Aluminum
  • Dust Boot: Yes
  • Rotor Width (in): 0.81
  • Rotor Diameter(in): 14.00
  • Pad Area (in²): 1.7
  • Pad Volume (in³): 0.26
  • Material: Cast Aluminium
  • Weight(Lbs): 3.3
  • Color: Red
  • Finish: Red Powder Coat
  • Mount Center(in): 2.00
  • Mount Side: Left Hand
  • Mount Type: Floating
  • Maximum Rotor Width (in): 0.81
  • Minimum Rotor Width (in): 0.70
  • Maximum Rotor Diameter(in): 14.00
  • Minimum Rotor Diameter(in): 11.00
  • Brake Pad Type 1: 6407
  • Total Pad Area (in²): 1.7
  • Total Pad Volume (in³): 0.26
  • Piston 1 Bore (in): 1.19
  • Total Piston Area (in²): 1.11
  • Mount Hole Size(in): 0.67
  • O-Ring Kit: 130-4320
  • Replacement Dust Boot: 210-6391
  • Replacement Piston 1: 200-8660
