Wilwood Part # WIL120-11025

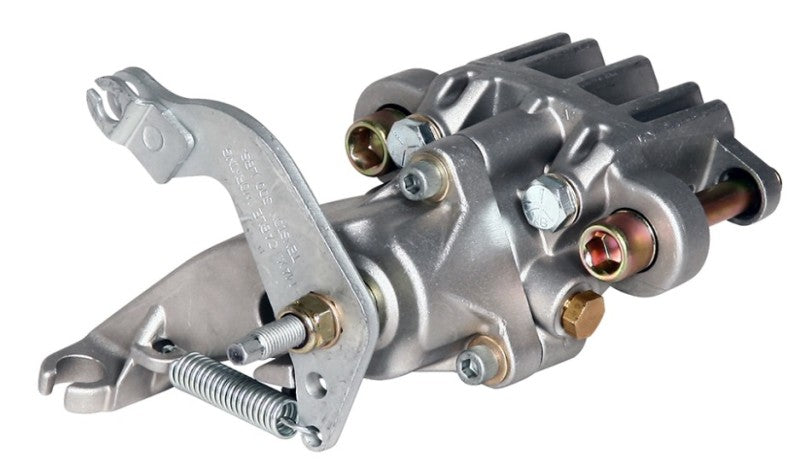

Wilwood Caliper-HM4 Hydra Mechanical - R/H 1.00in Pistons .19in Disc - 120-11025

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

Wilwood's HM series Hydra-Mechanical calipers are the perfect rear caliper for utilty vehicles. HM calipers offer options of both left-hand and right-hand units, with piston sizing of either 1.00" or 1.19. HM calipers utilizes a cost effective die cast construction with advanced design and manufacturing techniques which results in a rigid, lightweight and durable caliper.

  • Piston Count: 1
  • Piston Area (in²): 0.79
  • Piston Type: Stainless
  • Dust Boot: Yes
  • Rotor Width (in): 0.19
  • Rotor Diameter(in): 11.20
  • Pad Area (in²): 1.7
  • Pad Volume (in³): 0.26
  • Material: Cast Aluminium
  • Weight(Lbs): 2.7
  • Color: Clear
  • Finish: Clear Anodize
  • Mount Center(in): 3.00
  • Mount Side: Right Hand
  • Mount Type: Floating
  • Maximum Rotor Width (in): 0.19
  • Minimum Rotor Width (in): 0.15
  • Maximum Rotor Diameter(in): 11.20
  • Minimum Rotor Diameter(in): 6.00
  • Brake Pad Type 1: 6407
  • Total Pad Area (in²): 1.7
  • Total Pad Volume (in³): 0.26
  • Piston 1 Bore (in): 1.00
  • Total Piston Area (in²): 0.79
  • Mount Hole Size(in): 0.67
  • Inlet Thread Size: M10 x 1.00
  • O-Ring Kit: 130-10536
  • Replacement Dust Boot: 210-6391
  • Replacement Piston 1: 200-8238
  • Bleed Screw Kit: 220-6069
