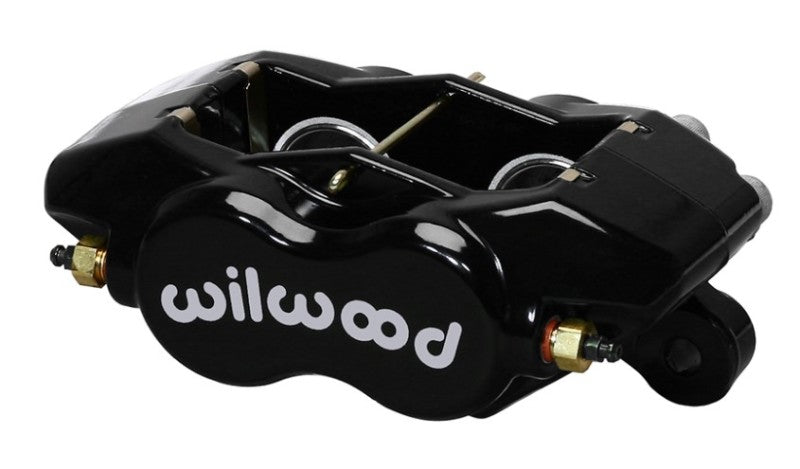

The Forged Billet Dynalite Internal is the next generation enhancement of the venerable Forged Dynalite series calipers. Designed with a single split bridge and spacer less design to enhance strength and appearance. These latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models. This new spacer-less design of the Forged Dynalite series of calipers, makes this the stiffest and most visual pleasing design so far.
Specifications
- Piston Count: 4
- Piston Area (in²): 4.80
- Piston Type: Stainless
- Dust Boot: No
- Rotor Width (in): 0.81
- Rotor Diameter(in): 13.06
- Pad Area (in²): 6.36
- Pad Volume (in³): 2.1
- Material: Forged Aluminium
- Weight(Lbs): 3.6
- Color: Black
- Finish: Black Powder Coat
- Mount Center(in): 5.25
- Mount Side: Universal
- Mount Type: Lug
- Maximum Rotor Width (in): 0.83
- Minimum Rotor Width (in): 0.75
- Maximum Rotor Diameter(in): 13.06
- Minimum Rotor Diameter(in): 10.00
- Brake Pad Type 1: 7112
- Total Pad Area (in²): 6.36
- Total Pad Volume (in³): 2.1
- Piston 1 Bore (in): 1.75
- Piston 2 Bore (in): 1.75
- Total Piston Area (in²): 4.80
- Mount Hole Size(in): 0.39
- Mount Height(in): 2.03
- Inlet Thread Size: 1/8-27 NPT
- O-Ring Kit: 130-2655
- Replacement Piston 1: 200-7528
- Replacement Piston 2: 200-7528
- Cross-Over O-Ring Kit: 130-10540
- Wear Plate L/H: 300-5875
- Wear Plate R/H: 300-5875
- Pad Retainer: 180-0055
- Bleed Screw Kit: 220-0627
