Wilwood Part # WIL120-12502

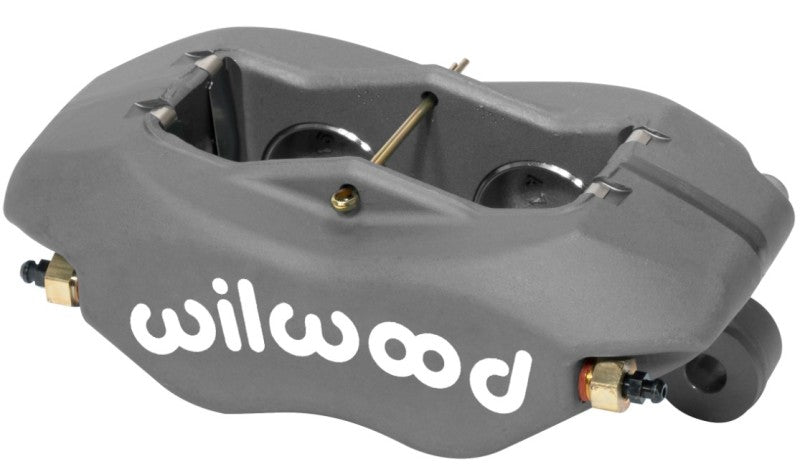

Wilwood Caliper-Forged Dynalite 1.75in Pistons 1.10in Disc - 120-12502

$188.45 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

The Forged Billet Dynalite has wide spread application over many forms over motorsports. It serves as the base model in the majority of Wilwood's Bolt-On Disc Brake Kits. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models.

  • Piston Count: 4
  • Piston Area (in²): 4.80
  • Piston Type: Stainless
  • Dust Boot: No
  • Rotor Width (in): 1.10
  • Rotor Diameter(in): 13.06
  • Pad Area (in²): 6.36
  • Pad Volume (in³): 2.1
  • Material: Forged Aluminium
  • Weight(Lbs): 3.4
  • Color: Anodize
  • Finish: Type III Anodize
  • Mount Center(in): 5.25
  • Mount Side: Universal
  • Mount Type: Lug
  • Maximum Rotor Width (in): 1.13
  • Minimum Rotor Width (in): 1.05
  • Maximum Rotor Diameter(in): 13.06
  • Minimum Rotor Diameter(in): 10.00
  • Brake Pad Type 1: 7112
  • Total Pad Area (in²): 6.36
  • Total Pad Volume (in³): 2.1
  • Piston 1 Bore (in): 1.75
  • Piston 2 Bore (in): 1.75
  • Total Piston Area (in²): 4.80
  • Mount Hole Size(in): 0.39
  • Mount Height(in): 2.03
  • Inlet Thread Size: 1/8-27 NPT
  • O-Ring Kit: 130-2655
  • Replacement Piston 1: 200-7528
  • Replacement Piston 2: 200-7528
  • Cross-Over O-Ring Kit: 130-10540
  • Wear Plate L/H: 300-5875
  • Wear Plate R/H: 300-5875
  • Pad Retainer: 180-0056
  • Bleed Screw Kit: 220-0627
