Wilwood Part # WIL120-14944

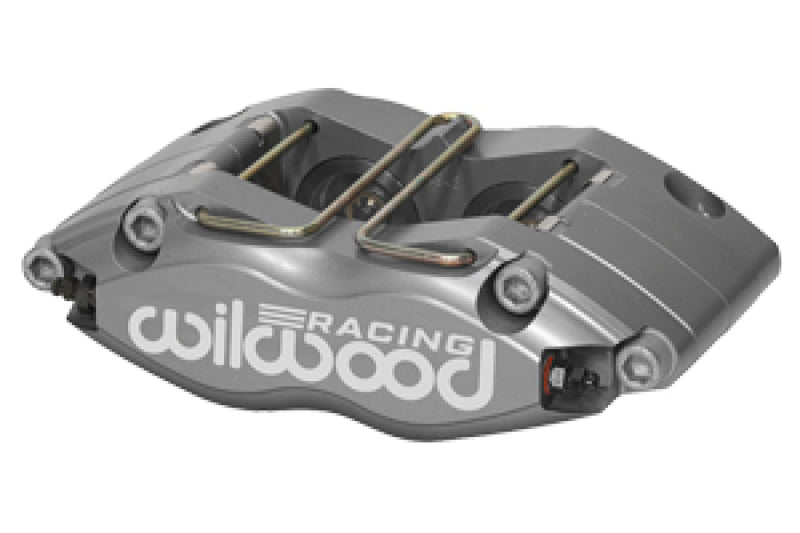

Wilwood Caliper-Dynapro - Ano 1.62in Piston .81 Disc - 120-14944

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

The Wilwood Dynapro-ST four piston radial mount calipers (DPR-ST) combines the versatility of radial mounting with a with the ultimate heat protection using Thermlock® pistons and extreme durability in adverse conditions. The Dynapro series of calipers has become a favored choice for a broad range of sports, rally, and off-road driving applications. Thermlock® pistons in the ST models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons.

  • Piston Count: 4
  • Piston Area (in²): 4.12
  • Piston Type: Thermlock
  • Dust Boot: Yes
  • Rotor Width (in): 0.81
  • Rotor Diameter(in): 12.19
  • Pad Area (in²): 6.36
  • Pad Volume (in³): 3
  • Material: Forged Aluminium
  • Weight(Lbs): 4.3
  • Color: Anodize
  • Finish: Type III Anodize
  • Mount Center(in): 5.98
  • Mount Side: Universal
  • Mount Type: Radial
  • Maximum Rotor Width (in): 0.86
  • Minimum Rotor Width (in): 0.75
  • Maximum Rotor Diameter(in): 12.19
  • Minimum Rotor Diameter(in): 10.75
  • Brake Pad Type 1: 7816
  • Total Pad Area (in²): 6.36
  • Total Pad Volume (in³): 3
  • Piston 1 Bore (in): 1.62
  • Piston 2 Bore (in): 1.62
  • Total Piston Area (in²): 4.12
  • Mount Hole Size(in): 0.39
  • Mount Height(in): 1.61
  • Inlet Thread Size: 1/8-27 NPT
  • O-Ring Kit: 130-4346
  • Replacement Piston 1: 200-7553
  • Replacement Piston 2: 200-7553
  • Cross-Over O-Ring Kit: 130-10540
  • Wear Plate L/H: 300-5876
  • Wear Plate R/H: 300-5876
  • Pad Retainer: 300-7316
  • Bleed Screw Kit: 220-6069
