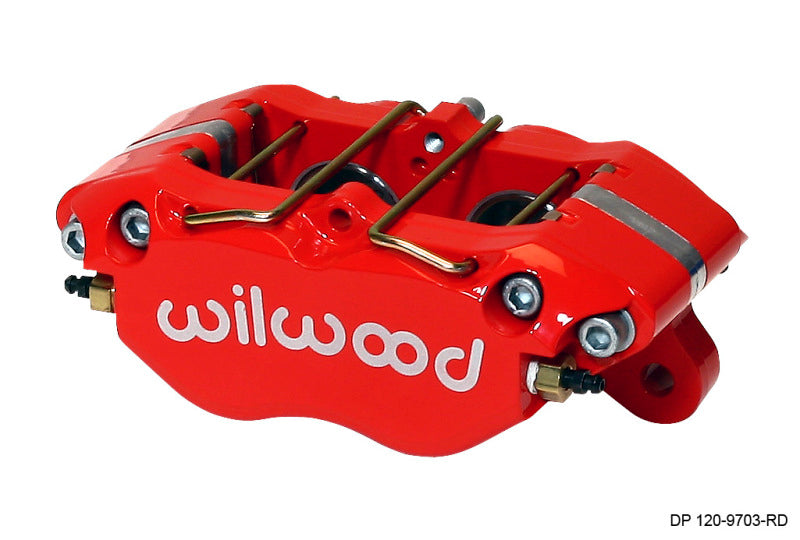

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show.
Specifications
- Piston Count: 4
- Piston Area (in²): 3.00
- Piston Type: Stainless
- Dust Boot: No
- Rotor Width (in): 0.81
- Rotor Diameter(in): 13.06
- Pad Area (in²): 6.36
- Pad Volume (in³): 2.1
- Material: Forged Aluminium
- Weight(Lbs): 3.8
- Color: Red
- Finish: Red Powder Coat
- Mount Center(in): 5.25
- Mount Side: Universal
- Mount Type: Lug
- Maximum Rotor Width (in): 0.83
- Minimum Rotor Width (in): 0.75
- Maximum Rotor Diameter(in): 13.06
- Minimum Rotor Diameter(in): 10.00
- Brake Pad Type 1: 7812
- Total Pad Area (in²): 6.36
- Total Pad Volume (in³): 2.1
- Piston 1 Bore (in): 1.38
- Piston 2 Bore (in): 1.38
- Total Piston Area (in²): 3.00
- Mount Hole Size(in): 0.39
- Mount Height(in): 2.10
- Inlet Thread Size: 1/8-27 NPT
- O-Ring Kit: 130-2658
- Replacement Piston 1: 200-7518
- Replacement Piston 2: 200-7518
- Cross-Over O-Ring Kit: 130-10540
- Wear Plate L/H: 300-5875
- Wear Plate R/H: 300-5875
- Pad Retainer: 300-9636
- Bleed Screw Kit: 220-0627
