Wilwood Part # WIL120-13916-BK

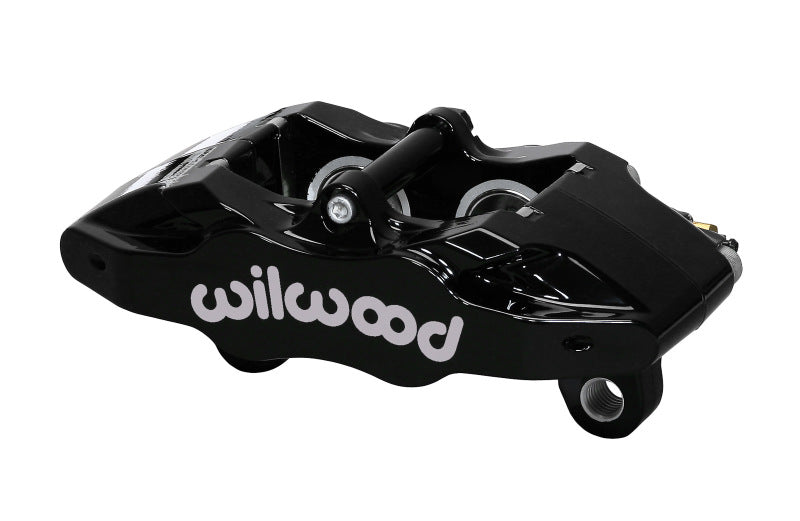

Wilwood Caliper-DPC56 - Black 1.25in Piston 1.04in Disc - 120-13916-BK

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

DPC56 rear calipers are engineered as a high performance street and custom replacement for Corvettes and hot rods using Corvette suspension. DPC56 calipers add high-tech styling and provide the positive response and balanced pad loading provided by a fixed mount, four piston caliper. The DPC56 is a direct bolt-on replacement for the OE calipers on all models of the C5 from 1997 to 2004, and all base model C6’s from 2005 to 2013 using 12.00” diameter rear rotors. The calipers attach directly to the Corvette spindle without the need for brackets or adapters and accept all types of OE banjo bolt style brake hoses.

  • Piston Count: 4
  • Piston Area (in²): 2.46
  • Piston Type: Stainless
  • Dust Boot: No
  • Rotor Width (in): 1.04
  • Rotor Diameter(in): 12.00
  • Pad Area (in²): 5.1
  • Pad Volume (in³): 1.71
  • Material: Forged Aluminium
  • Weight(Lbs): 6.3
  • Color: Black
  • Finish: Black Powder Coat
  • Mount Center(in): 5.04
  • Mount Side: Universal
  • Mount Type: Lug
  • Maximum Rotor Width (in): 1.04
  • Minimum Rotor Width (in): 0.98
  • Maximum Rotor Diameter(in): 12.00
  • Minimum Rotor Diameter(in): 12.00
  • Brake Pad Type 1: 4812
  • Total Pad Area (in²): 5.1
  • Total Pad Volume (in³): 1.71
  • Piston 1 Bore (in): 1.25
  • Piston 2 Bore (in): 1.25
  • Total Piston Area (in²): 2.46
  • Inlet Thread Size: M10 x 1.00
  • O-Ring Kit: 130-2479
  • Replacement Piston 1: 200-7515
  • Replacement Piston 2: 200-7515
  • Cross-Over O-Ring Kit: 130-10540
  • Wear Plate L/H: 300-5875
  • Wear Plate R/H: 300-5875
  • Bleed Screw Kit: 220-0627
