Wilwood Part # WIL120-10525

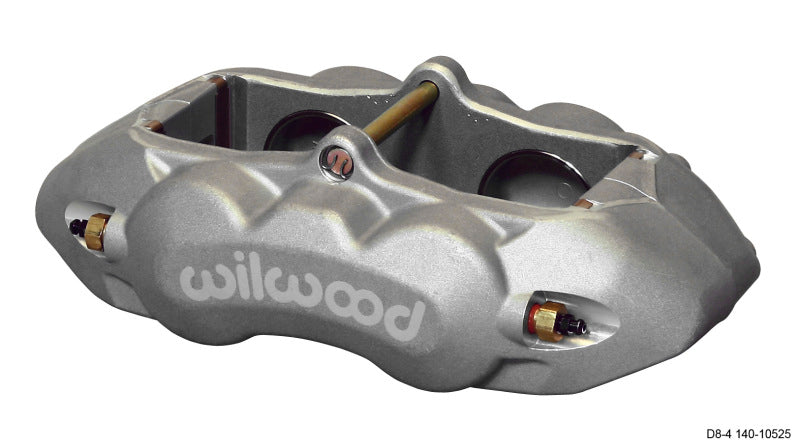

Wilwood Caliper-D8-4 Front Clear 1.88in Pistons 1.25 Disc - 120-10525

$308.72 USD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

D8-4 front calipers are a direct bolt-on replacement for the OE factory front calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high temperature seals put an end to the rust, bore pitting, and seal failures that plague the original cast iron caliper design.

  • Piston Count: 4
  • Piston Area (in²): 5.56
  • Piston Type: Stainless
  • Dust Boot: No
  • Rotor Width (in): 1.25
  • Rotor Diameter(in): 11.75
  • Pad Area (in²): 10.29
  • Pad Volume (in³): 3.4
  • Material: Forged Aluminium
  • Weight(Lbs): 6.3
  • Color: Anodize
  • Finish: Type III Anodize
  • Mount Center(in): 7.00
  • Mount Side: Universal
  • Mount Type: Lug
  • Maximum Rotor Width (in): 1.25
  • Minimum Rotor Width (in): 1.17
  • Maximum Rotor Diameter(in): 11.75
  • Minimum Rotor Diameter(in): 11.75
  • Brake Pad Type 1: D8
  • Total Pad Area (in²): 10.29
  • Total Pad Volume (in³): 3.4
  • Piston 1 Bore (in): 1.88
  • Piston 2 Bore (in): 1.88
  • Total Piston Area (in²): 5.56
  • Mount Height(in): 1.83
  • Inlet Thread Size: 1/8-27 NPT
  • O-Ring Kit: 130-11197
  • Replacement Piston 1: 200-7521
  • Replacement Piston 2: 200-7521
  • Cross-Over O-Ring Kit: 130-10540
  • Wear Plate L/H: 300-10523
  • Wear Plate R/H: 300-10523
  • Pad Retainer: 180-18552
  • Bleed Screw Kit: 220-0627
