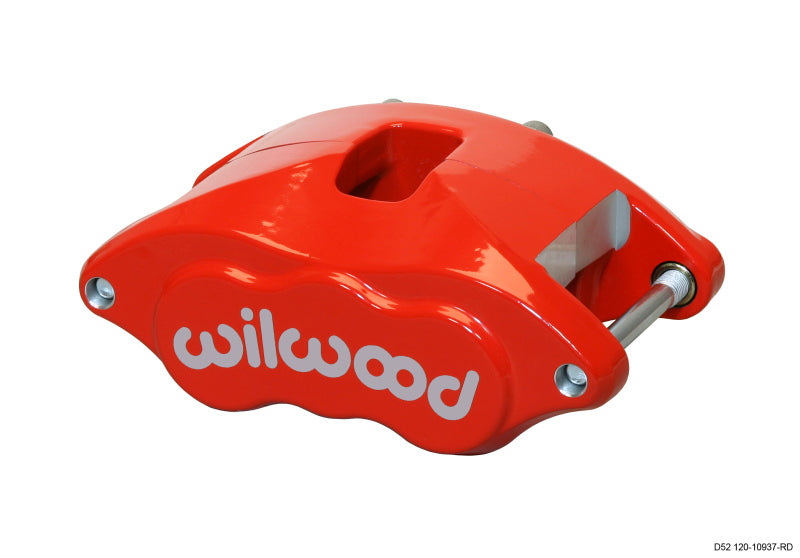

The D52 caliper is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put and end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track.
Specifications
- Piston Count: 2
- Piston Area (in²): 6.28
- Piston Type: Stainless
- Dust Boot: No
- Rotor Width (in): 1.04
- Rotor Diameter(in): 12.19
- Pad Area (in²): 10
- Pad Volume (in³): 3.9
- Material: Forged Aluminium
- Weight(Lbs): 5.5
- Color: Red
- Finish: Red Powder Coat
- Mount Center(in): 7.06
- Mount Side: Universal
- Mount Type: Floating
- Maximum Rotor Width (in): 1.04
- Minimum Rotor Width (in): 0.81
- Maximum Rotor Diameter(in): 12.19
- Minimum Rotor Diameter(in): 11.00
- Brake Pad Type 1: D52
- Total Pad Area (in²): 10
- Total Pad Volume (in³): 3.9
- Piston 1 Bore (in): 2.00
- Piston 2 Bore (in): 2.00
- Total Piston Area (in²): 6.28
- Mount Hole Size(in): 0.69
- Mount Height(in): 0.77
- Inlet Thread Size: 7/16-20
- O-Ring Kit: 130-11509
- Replacement Piston 1: 200-10932
- Bleed Screw Kit: 220-0627
