Wilwood Part # WIL120-10936-BK

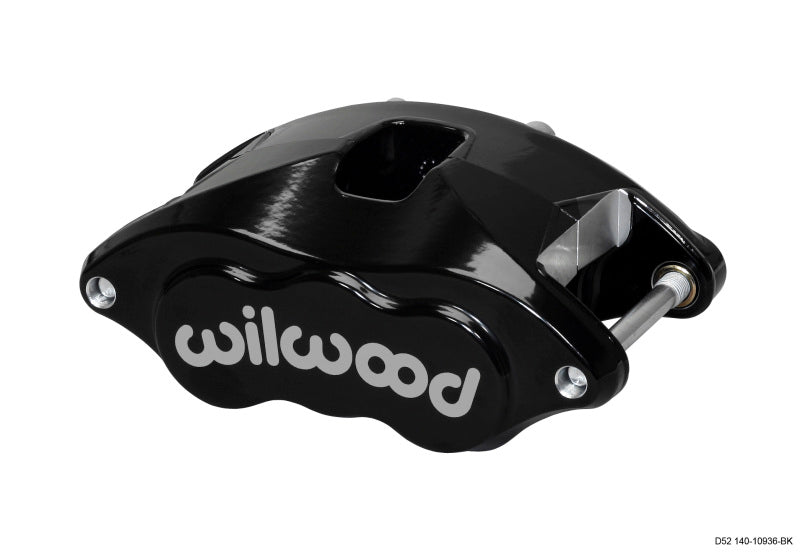

Wilwood Caliper-D52-Black Pwdr 2.00/2.00in Pistons 1.28in Disc - 120-10936-BK

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

The D52 caliper is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put and end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track.

  • Piston Count: 2
  • Piston Area (in²): 6.28
  • Piston Type: Stainless
  • Dust Boot: No
  • Rotor Width (in): 1.28
  • Rotor Diameter(in): 12.19
  • Pad Area (in²): 10
  • Pad Volume (in³): 3.9
  • Material: Forged Aluminium
  • Weight(Lbs): 5.5
  • Color: Black
  • Finish: Black Powder Coat
  • Mount Center(in): 7.06
  • Mount Side: Universal
  • Mount Type: Floating
  • Maximum Rotor Width (in): 1.28
  • Minimum Rotor Width (in): 1.19
  • Maximum Rotor Diameter(in): 12.19
  • Minimum Rotor Diameter(in): 11.00
  • Brake Pad Type 1: D52
  • Total Pad Area (in²): 10
  • Total Pad Volume (in³): 3.9
  • Piston 1 Bore (in): 2.00
  • Piston 2 Bore (in): 2.00
  • Total Piston Area (in²): 6.28
  • Mount Hole Size(in): 0.69
  • Mount Height(in): 0.77
  • Inlet Thread Size: 7/16-20
  • O-Ring Kit: 130-11509
  • Replacement Piston 1: 200-10932
  • Bleed Screw Kit: 220-0627
