Wilwood Part # WIL120-9809-RD

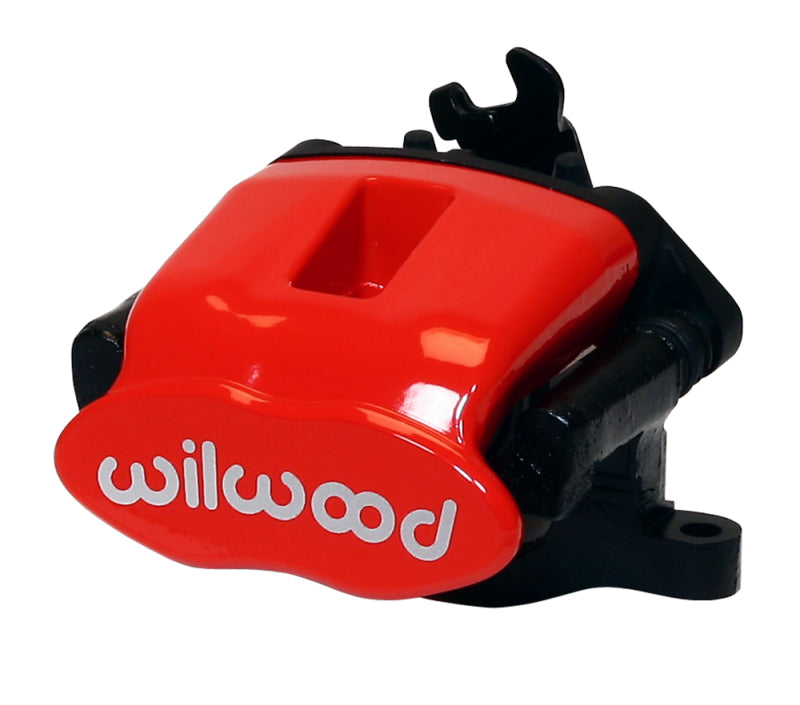

Wilwood Caliper-Combination Parking Brake-L/H-Red 34mm piston .81in Disc - 120-9809-RD

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

Wilwood's Combination Parking Brake (CPB) Hydra-Mechanical Caliper uses hydraulic pressure for stopping and a mechanical locking mechanism for a parking brake. This redesigned unit provides new options for drum brake conversions and disc upgrades on rear axles that are not conducive to internal shoe systems. This caliper, when matched with the correctly proportionate rotor diameter, provides balanced bias and brake performance for use in conjunction with front wheel brake upgrades.

  • Piston Count: 1
  • Piston Area (in²): 1.41
  • Piston Type: Steel
  • Dust Boot: Yes
  • Rotor Width (in): 0.81
  • Rotor Diameter(in): 13.00
  • Pad Area (in²): 4
  • Pad Volume (in³): 1.5
  • Material: Aluminium / Steel
  • Weight(Lbs): 6.1
  • Color: Red
  • Finish: Red Powder Coat
  • Mount Center(in): 5.98
  • Mount Side: Left Hand
  • Mount Type: Radial
