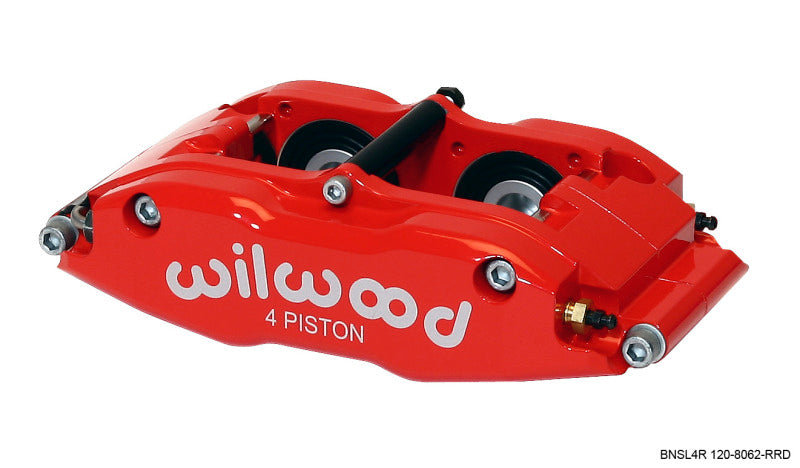

Wilwood Caliper-BNSL4R-Red 1.25in Pistons 1.10in Disc - 120-8062-RRD

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

The Superlite caliper series has set the standard for many years in short track, late model, modified and open wheel competition. It has also enjoyed prominence in a variety of road-race, off-road, rally and sport driving applications. Starting at 4.40 pounds, the Forged Billet Narrow Superlite (FNSLR) is innovation to this series from Wilwood. New and adaptive technologies have been applied providing substantial improvements in strength, fluid volume displacement, and overall performance. FNSL4R calipers are the the only Superlite series calipers with piston dust boots, primarily for export mandates.

  • Piston Count: 4
  • Piston Area (in²): 2.46
  • Piston Type: Aluminum
  • Dust Boot: Yes
  • Rotor Width (in): 1.10
  • Rotor Diameter(in): 14.00
  • Pad Area (in²): 8.2
  • Pad Volume (in³): 3.8
  • Material: Billet Aluminium
  • Weight(Lbs): 5.0
  • Color: Red
  • Finish: Red Powder Coat
  • Mount Center(in): 5.98
  • Mount Side: Right Hand
  • Mount Type: Radial
