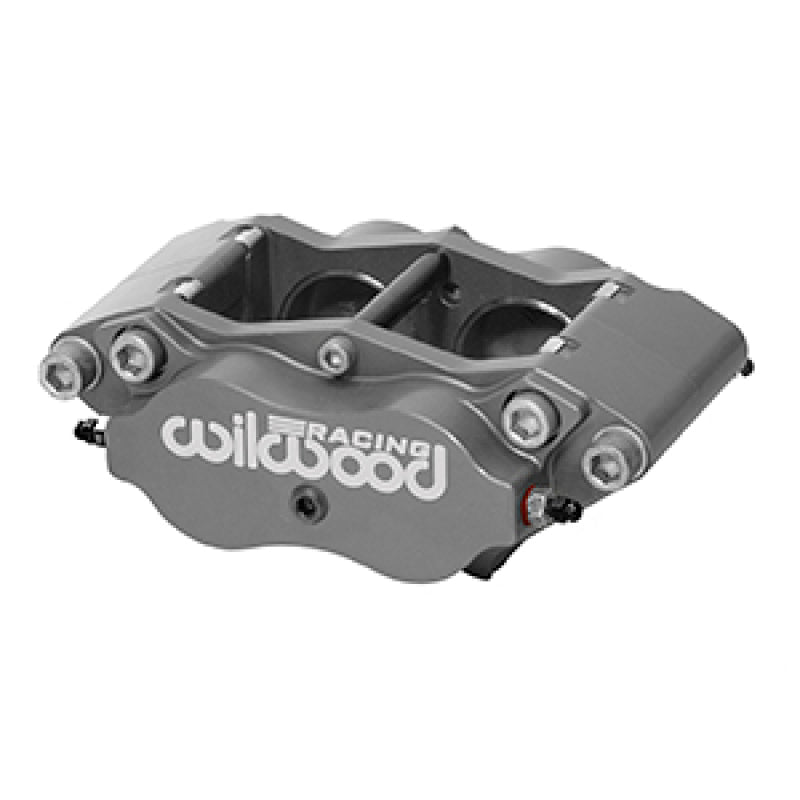

Wilwood's venerable DynaLite calipers are used in all forms of racing, and the latest Billet Narrow Dynalite Radial Mount (NDLR) series are better than ever. Starting at just 3.20 pounds, this compact and lightweight caliper now incorporates a more rigid radial mount design. Engineered with a spacer-less body specifically for .38”, .810” and 1.00" width rotors and a center bridge bolt adding to overall caliper strength and positive retention of the top-loaded pads. A durable aluminum-oxide ceramic Mil-Spec Type III hard-anodized finish further enhances the durability of the caliper by resisting bore wear and surface abrasion.Billet NDLR calipers can be directly mounted over studs on a 4.75" center, or used with a radial mount bracket kit in place of a tab-mount caliper. Internal damping springs, internal fluid crossover, controlled retraction in-bore seals, and 3/8” cross bolts for added strength and rigidity all adds up to consistent pedal feel from start to finish. Uses type 7816 brake pads with many Wilwood compound options to fine-tune your driving style and track conditions.
Specifications
- Piston Count: 4
- Piston Area (in²): 4.80
- Piston Type: Stainless
- Dust Boot: No
- Rotor Width (in): 1.00
- Rotor Diameter(in): 12.19
- Pad Area (in²): 6.36
- Pad Volume (in³): 3
- Material: Billet Aluminium
- Weight(Lbs): 3.7
- Color: Anodize
- Finish: Type III Anodize
- Mount Center(in): 4.75
- Mount Side: Universal
- Mount Type: Radial
- Maximum Rotor Width (in): 1.00
- Minimum Rotor Width (in): 0.94
- Maximum Rotor Diameter(in): 12.19
- Minimum Rotor Diameter(in): 11.75
- Brake Pad Type 1: 7816
- Brake Pad Type 2: 7216
- Total Pad Area (in²): 6.36
- Total Pad Volume (in³): 3
- Piston 1 Bore (in): 1.75
- Piston 2 Bore (in): 1.75
- Total Piston Area (in²): 4.80
- Mount Hole Size(in): 0.39
- Mount Height(in): 1.24
- Inlet Thread Size: 1/8-27 NPT
- O-Ring Kit: 130-2655
- Replacement Piston 1: 200-7531
- Replacement Piston 2: 200-7531
- Cross-Over O-Ring Kit: 130-10540
- Wear Plate L/H: 300-5876
- Wear Plate R/H: 300-5876
- Bleed Screw Kit: 220-0627
