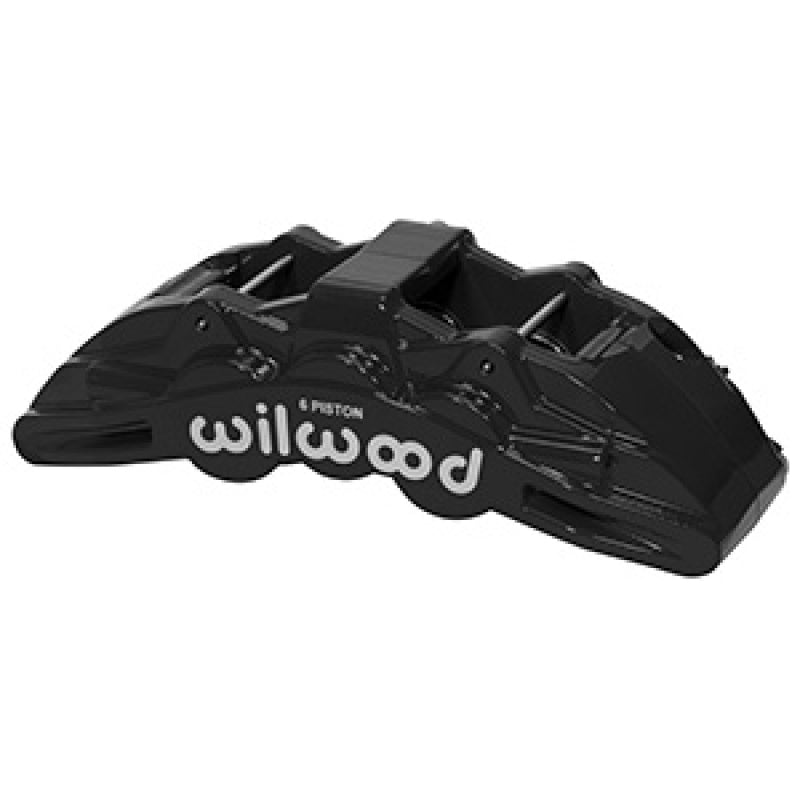

The new SX6R forged six piston caliper delivers heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability. Radial mounting, multiple options for piston volume, and a rotor diameter ranging to 15.00" give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new SX6R is is largest caliper with the latest innovations incorporating an exclusive dust wiper seal that further protects the piston bore from dust and corrosion, allowing the caliper to be used in locales that mandate a method of environmental sealing.
Specifications
- Piston Count: 6
- Piston Area (in²): 5.40
- Piston Type: Stainless
- Dust Boot: No
- Rotor Width (in): 1.25
- Rotor Diameter(in): 15.00
- Pad Area (in²): 15.9
- Pad Volume (in³): 7.66
- Material: Forged Aluminium
- Weight(Lbs): 11.6
- Color: Black
- Finish: Black Powder Coat
- Mount Center(in): 9.84
- Mount Side: Right Hand
- Mount Type: Radial
- Maximum Rotor Width (in): 1.28
- Minimum Rotor Width (in): 1.10
- Maximum Rotor Diameter(in): 15.00
- Minimum Rotor Diameter(in): 12.88
- Brake Pad Type 1: D1792
- Total Pad Area (in²): 15.9
- Total Pad Volume (in³): 7.66
- Piston 1 Bore (in): 1.75
- Piston 2 Bore (in): 1.38
- Piston 3 Bore (in): 1.38
- Total Piston Area (in²): 5.40
- Mount Hole Size(in): 0.52
- Inlet Thread Size: 1/8-27 NPT
- O-Ring Kit: 130-3084
- Replacement Piston 1: 200-7531
- Replacement Piston 2: 200-7516
- Replacement Piston 3: 200-7516
- Wear Plate L/H: 300-5876
- Wear Plate R/H: 300-5876
- Pad Retainer: 180-17957
- Bleed Screw Kit: 220-0627
