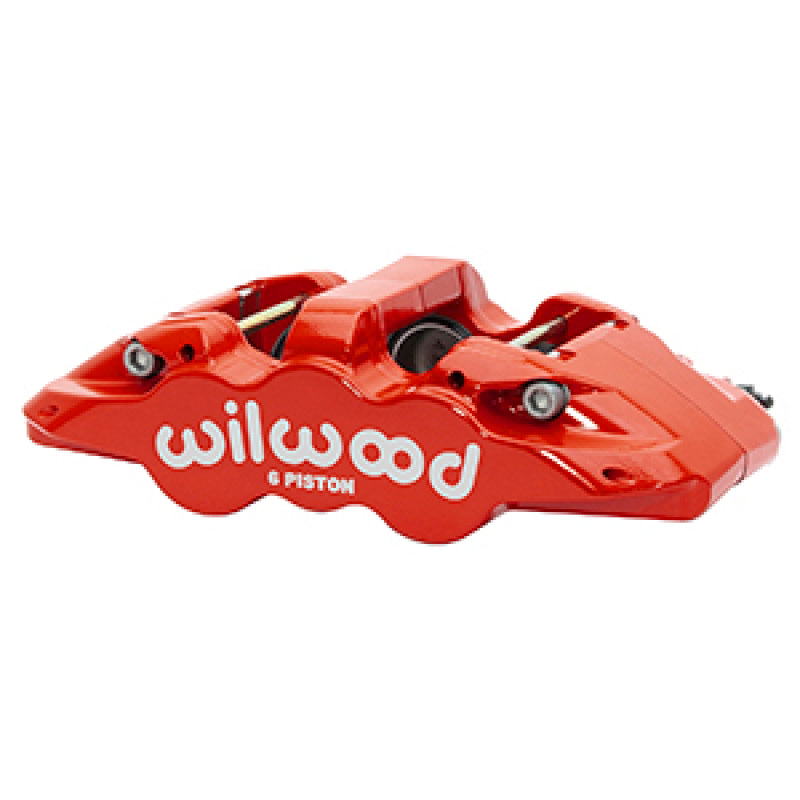

The new Aero6-DS forged six piston caliper delivers heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability. Radial mounting, multiple options for piston volume, and a rotor diameter ranging from 12.88" to 15.00" give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new Aero6-DS is the latest innovation to the Aero series of calipers incorporating an exclusive dust wiper seal that further protects the piston bore from dust and corrosion, allowing the caliper to be used in locales that mandate a method of environmental sealing.
Specifications
- Piston Count: 6
- Piston Area (in²): 5.40
- Piston Type: Stainless
- Dust Boot: Yes
- Rotor Width (in): 1.25
- Rotor Diameter(in): 15.00
- Pad Area (in²): 11.1
- Pad Volume (in³): 5.2
- Material: Forged Aluminium
- Weight(Lbs): 7.0
- Color: Red
- Finish: Red Powder Coat
- Mount Center(in): 7.09
- Mount Side: Right Hand
- Mount Type: Radial
- Maximum Rotor Width (in): 1.28
- Minimum Rotor Width (in): 1.10
- Maximum Rotor Diameter(in): 15.00
- Minimum Rotor Diameter(in): 12.19
- Brake Pad Type 1: 6617
- Total Pad Area (in²): 11.1
- Total Pad Volume (in³): 5.2
- Piston 1 Bore (in): 1.75
- Piston 2 Bore (in): 1.38
- Piston 3 Bore (in): 1.38
- Total Piston Area (in²): 5.40
- Mount Hole Size(in): 0.45
- Mount Height(in): 2.09
- Inlet Thread Size: 1/8-27 NPT
- O-Ring Kit: 130-17056
- Replacement Piston 1: 200-7531
- Replacement Piston 2: 200-7516
- Replacement Piston 3: 200-7516
- Cross-Over O-Ring Kit: 130-10540
- Wear Plate L/H: 300-5876
- Wear Plate R/H: 300-5876
- Pad Retainer: 180-9874
- Bleed Screw Kit: 220-0627
