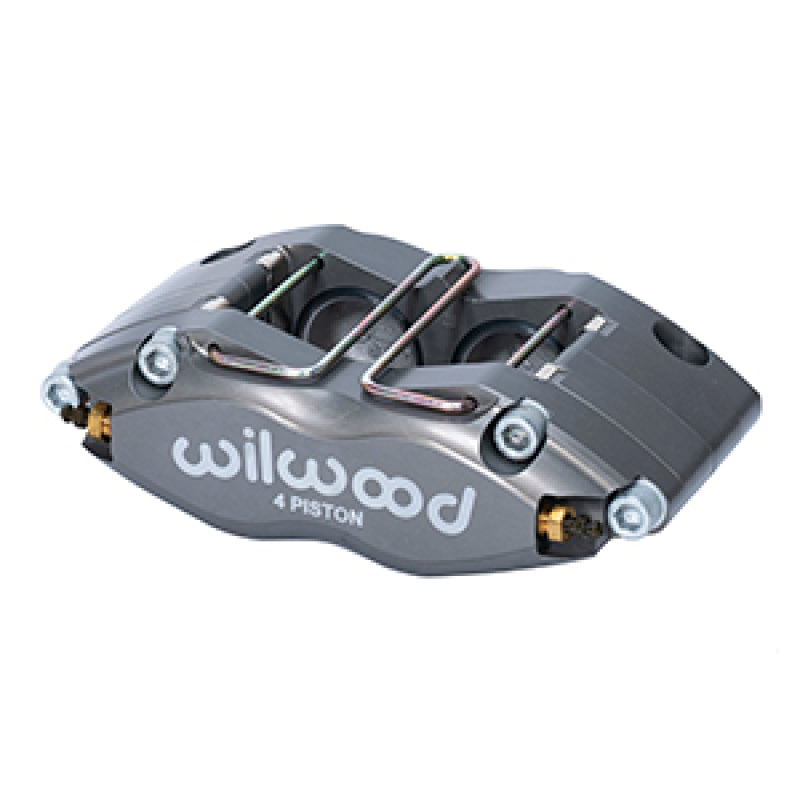

Dynapro four piston dust seal radial mount calipers (DPR-DS) are an example of Wilwood’s continuing upgrade and improvement processes. Combine pure race technology with a new generation of Wilwood performance enhancements. The Dynapro-DS combines the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions. The addition of dust wiper seals allow this caliper to be used in localities that require a method of environmental sealing. With an overall weight as light as 3.58 pounds, the Dynapro series of calipers has become a favored choice for a broad range of sports, rally, and off-road driving applications.
Specifications
- Piston Count: 4
- Piston Area (in²): 3.54
- Piston Type: Stainless
- Dust Boot: Yes
- Rotor Width (in): 0.50
- Rotor Diameter(in): 12.19
- Pad Area (in²): 6.36
- Pad Volume (in³): 3
- Material: Forged Aluminium
- Weight(Lbs): 4.3
- Color: Anodize
- Finish: Type III Anodize
- Mount Center(in): 5.98
- Mount Side: Universal
- Mount Type: Radial
- Maximum Rotor Width (in): 0.50
- Minimum Rotor Width (in): 0.38
- Maximum Rotor Diameter(in): 12.19
- Minimum Rotor Diameter(in): 10.75
- Brake Pad Type 1: 7816
- Total Pad Area (in²): 6.36
- Total Pad Volume (in³): 3
- Piston 1 Bore (in): 1.50
- Piston 2 Bore (in): 1.50
- Total Piston Area (in²): 3.54
- Mount Hole Size(in): 0.39
- Mount Height(in): 1.61
- Inlet Thread Size: 1/8-27 NPT
- O-Ring Kit: 130-17059
- Replacement Piston 1: 200-14639
- Replacement Piston 2: 200-14639
- Cross-Over O-Ring Kit: 130-10540
- Wear Plate L/H: 300-5876
- Wear Plate R/H: 300-5876
- Pad Retainer: 300-7315
- Bleed Screw Kit: 220-6069
