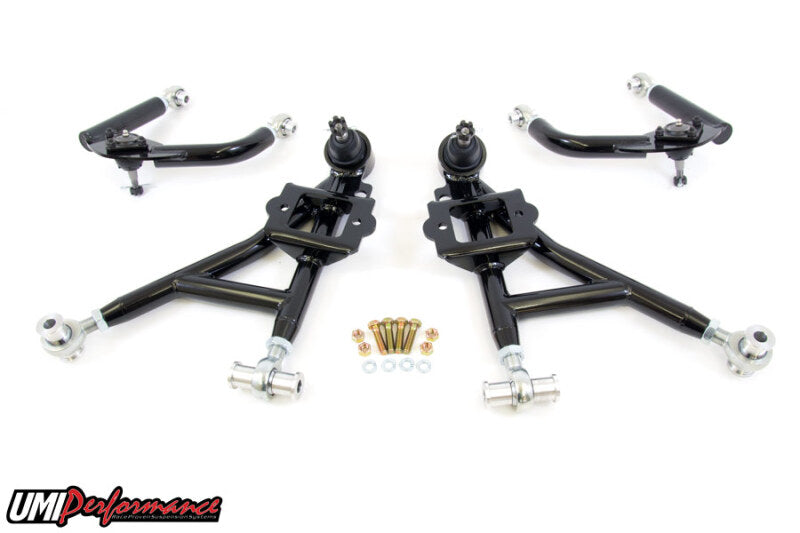

UMI’s fabricated tubular a-arms provide a rock solid foundation for your 4th Gen’s front suspension. Our a-arm kit is built to offer increased rigidity, smooth non-binding travel, a precise steering feel, and an 8lb weight savings over stock. The DOM 1-1/4” diameter tubular sections are precision bent, CNC notched and TIG welded in a jig to form the solid base. In-house built 4130 CrMo tube adapters provide a durable attachment point for the premium Teflon lined race quality rod ends. The spring and shock attach to the arm via a tough 1/4” thick steel shock mount. The CNC machined lower ball joint cup and CNC laser cut upper pad feature premium ball joints installed. UMI’s tubular lower a-arms can be installed on the factory k-member or any aftermarket k-member as well as the stock spindle - making this a true bolt-on product. Manufactured with pride in Philipsburg, PA – USA
Hardware kit P/N 2303 - A-arm hardware kit includes Grade 10.9 bolts, washers and Ny-lock nuts. Kit includes everything needed to mount your new UMI a-arms to the vehicle.
CrMo - CrMo version uses 1-1/4” 4130 CrMo tubing, maintaining strength and reducing product weight by an additional 2lbs giving a total weight reduction of 10lbs. P/N 230010CM.
Features:
1-1/4” USA mild steel DOM tubing
TIG Welded 4130 CrMo threaded tube adapters for thread durability
CNC machined lower ball joint cup
Heavy duty CNC laser cut ¼” thick shock mount
Premium upper and lower ball joints installed
¾” Teflon lined, high load capacity race rod ends
High grade shock mounting hardware included
Uses balance of OEM hardware or use new UMI hardware kit
Durable red or black powder coat
Made in Philipsburg, PA – USA
