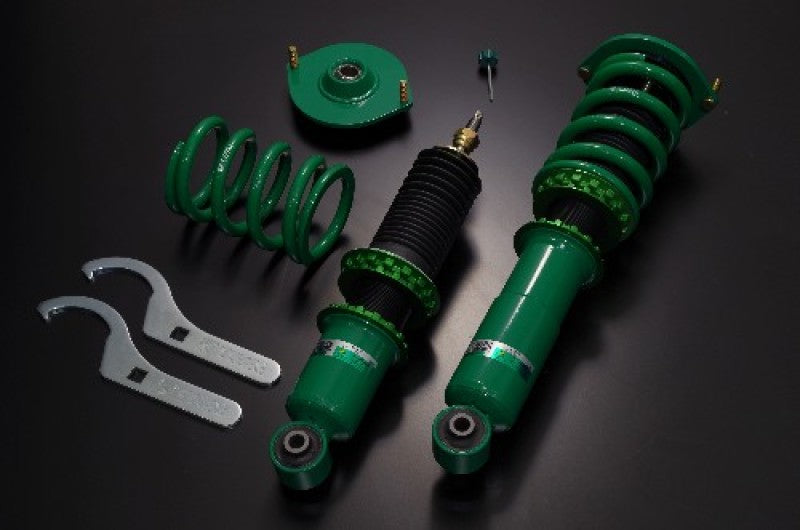

Tein 90-04 Mazda Miata - Mono Racing Coilover Kit - VSM40-K1LS1

• Product line: Mono Racing
• Type: coilover kit
• TEIN part number: VSM40-K1LS1
• Front spring rate: 137.3 N/mm (14.0 kgf/mm) — free length 150 mm, ID 70 mm, straight
• Rear spring rate: 98.1 N/mm (10.0 kgf/mm) — free length 140 mm, ID 70 mm, straight
• Front upper mount: pillow-ball upper mount
• Rear upper mount: pillow-ball upper mount
• Springs: included
• Kit note: Front springs : selected from 12, 14, 16k. Rear springs : selected from 8, 10, 12k. Us spec included front:12k / rear: 8k. Optional springs- front: 14, 16k / rear: 10, 12k.

Vehicle Applications (per TEIN USA)

• 1990–1998 Mazda Miata (NA6C) — 1600 cc, RWD, US-market model (front ride height vs oe (standard setting): -30 mm; rear ride height vs oe (standard setting): -30 mm; front ride height adjustment range vs oe: -63 mm to -13 mm (recommended -40 mm to -20 mm); rear ride height adjustment range vs oe: -71 mm to +16 mm (recommended -40 mm to -20 mm))
• 1990–1998 Mazda Miata (NA8C) — 1800 cc, RWD, US-market model (front ride height vs oe (standard setting): -30 mm; rear ride height vs oe (standard setting): -35 mm; front ride height adjustment range vs oe: -64 mm to -13 mm (recommended -40 mm to -20 mm); rear ride height adjustment range vs oe: -74 mm to +11 mm (recommended -45 mm to -25 mm))
• 1999–2005 Mazda Miata (NB8C) — 1800 cc, RWD, US-market model (front ride height vs oe (standard setting): -35 mm; rear ride height vs oe (standard setting): -40 mm; front ride height adjustment range vs oe: -73 mm to -16 mm (recommended -45 mm to -25 mm); rear ride height adjustment range vs oe: -81 mm to +6 mm (recommended -50 mm to -30 mm))
• 9/1989–1/1998 Mazda Roadster (NA6CE, S-Special, V-Special) — 1600 cc, RWD, Japan-market (JDM) model (front ride height vs oe (standard setting): -45 mm; rear ride height vs oe (standard setting): -50 mm; front ride height adjustment range vs oe: -88 mm to -20 mm (recommended -55 mm to -35 mm); rear ride height adjustment range vs oe: -87 mm to -4 mm (recommended -60 mm to -40 mm))
• 8/1993–12/1997 Mazda Roadster (NA8C, S-Special, V-Special, M-Package) — 1800 cc, RWD, Japan-market (JDM) model (front ride height vs oe (standard setting): -45 mm; rear ride height vs oe (standard setting): -60 mm; front ride height adjustment range vs oe: -90 mm to -20 mm (recommended -55 mm to -35 mm); rear ride height adjustment range vs oe: -98 mm to -14 mm (recommended -70 mm to -50 mm))
• 1/1998–8/2005 Mazda Roadster (NB6C, Base Model, M Package, Special Package) — 1600 cc, RWD, Japan-market (JDM) model (front ride height vs oe (standard setting): -25 mm; rear ride height vs oe (standard setting): -45 mm; front ride height adjustment range vs oe: -71 mm to +3 mm (recommended -35 mm to -15 mm); rear ride height adjustment range vs oe: -88 mm to +3 mm (recommended -55 mm to -35 mm))
• 1/1998–8/2005 Mazda Roadster (NB8C, S, Rs, Vs) — 1800 cc, RWD, Japan-market (JDM) model (front ride height vs oe (standard setting): -25 mm; rear ride height vs oe (standard setting): -45 mm; front ride height adjustment range vs oe: -71 mm to +9 mm (recommended -35 mm to -15 mm); rear ride height adjustment range vs oe: -86 mm to +5 mm (recommended -55 mm to -35 mm))
