Tein Part # TEINVSTD0-C1AS3

Tein 2016+ Toyota Prius Flex Z Coilovers - VSTD0-C1AS3

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

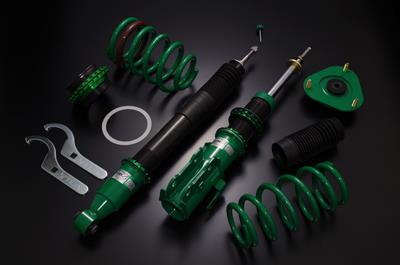

TEIN Flex Z is a full-length adjustable coilover: ride height is changed by adjusting the case length, so stroke and spring preload stay the same. It is a sealed-structure twin-tube design with 16-level damping force adjustment, is compatible with TEIN EDFC controllers, and comes as a full-car kit of four dampers and four springs with vehicle-specific upper mounts on most applications.

TEIN's setting notes for this kit: The setting is mainly focused on remedying the original car's stiff ride when going over gaps at low speed. Stability and ride comfort are well balanced, with milder-than-original setting for low-speed driving on streets and with adequate suppressing feel for mid-to-high-speed driving. By adjusting damping force, wide range of ride feel can be enjoyed; from comfort to sporty.

  • Product line: Flex Z
  • Type: coilover kit
  • TEIN part number: VSTD0-C1AS3
  • Front ride height vs OE (standard setting): -30 mm
  • Rear ride height vs OE (standard setting): -30 mm
  • Front spring rate: 39.2 N/mm (4.0 kgf/mm) — free length 200 mm, barrel
  • Rear spring rate: 46.1 N/mm (4.7 kgf/mm) — free length 252 mm, barrel
  • Front upper mount: reinforced rubber upper mount
  • Rear upper mount: reinforced rubber upper mount
  • Springs: included

Vehicle Applications (per TEIN USA)

  • 12/2015–11/2018 Toyota Prius (ZVW50, S, S Touring) — 1800 cc, FWD, Japan-market (JDM) model. Note: Ft/Rear: use of EDFC series is recommended, as it's difficult to adjust damping force by hand. (front ride height adjustment range vs oe: -61 mm to -10 mm (recommended -40 mm to -20 mm); rear ride height adjustment range vs oe: -65 mm to -20 mm (recommended -40 mm to -20 mm))
  • 12/2015–11/2018 Toyota Prius (ZVW51, A Premium, A Premium Touring, A, A Touring) — 1800 cc, FWD, Japan-market (JDM) model. Note: Not tested on e models. Ft/Rear: use of EDFC series is recommended, as it's difficult to adjust damping force by hand. (front ride height adjustment range vs oe: -61 mm to -10 mm (recommended -40 mm to -20 mm); rear ride height adjustment range vs oe: -65 mm to -20 mm (recommended -40 mm to -20 mm))
  • 12/2018–12/2022 Toyota Prius (ZVW51, A Premium, A, S, E, Touring Selection A, A Premium, S) — 1800 cc, FWD, Japan-market (JDM) model. Note: Not tested on e models. Ft/Rear: use of EDFC series is recommended, as it's difficult to adjust damping force by hand. (front ride height adjustment range vs oe: -63 mm to -5 mm (recommended -40 mm to -20 mm); rear ride height adjustment range vs oe: -65 mm to -10 mm (recommended -40 mm to -20 mm))
