SKU: SKU: SWFT-045-163-110B
Swift coilover springs are mainly utilized in motorsports ranging anywhere from dirt to pavement where we've engineered for corner specific with our HS5.TW proprietary material, providing the optimal spring design to maximize your vehicle potential amplifying every advantage. Discover our wide variety of length, inner diameter and rates.
Our Quarter Midget Springs comes in either a Barrel Type giving you unmatched linearity while being the lightest weight in the industry or our Tight Helix Type providing increased forward drive & side bite, faster opening speed and utilized on left-rear for most tracks.

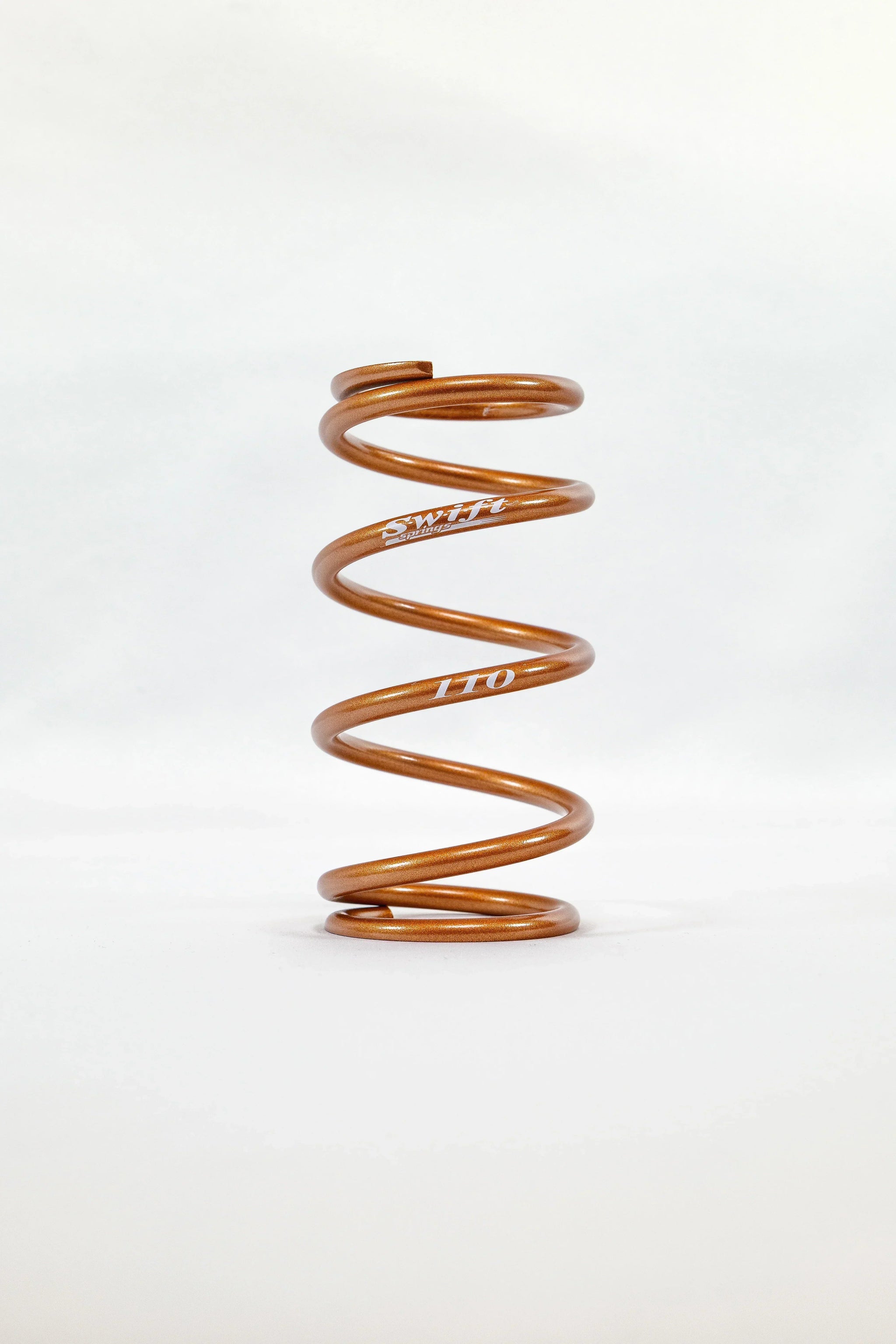

Quarter Midget Spring | Barrel Type
Specifications
Part Number: 045-163-110 B
Length : 4.5inch
Inner Diameter : 1.63inch
Spring Rate : 110lbs/inch
Usable Stroke : 2.4inch
Max Stroke : 3.3inch
Max Load : 368lbs
