Swift Springs Standard Coilover Conical (BP) Spring - 16" Length | 2.5" ID/5.0" OD | 125lbs/inch | 160-2550-125 BP

Swift coilover springs are mainly utilized in motorsports ranging anywhere from dirt to pavement where we've engineered for corner specific with our HS5.TW proprietary material, providing the optimal spring design to maximize your vehicle potential amplifying every advantage. Discover our wide variety of length, inner diameter and rates.

Our Conical Springs provide excellent coil stacking with the most stroke available in the industry and come in our Bullet Proof Material! Applicable for front of Late & Pro Late Models, left-rear Sportsman Modifieds!

Bulletproof Type

Specifications
Part Number: 160-2550-125 BP

Length : 16inch
2.5" ID on one end, 5.0" OD the other
Spring Rate : 125lbs/inch
Usable Stroke : 11.4inch
Max Stroke : 12.3inch
Max Load : 1,537lbs

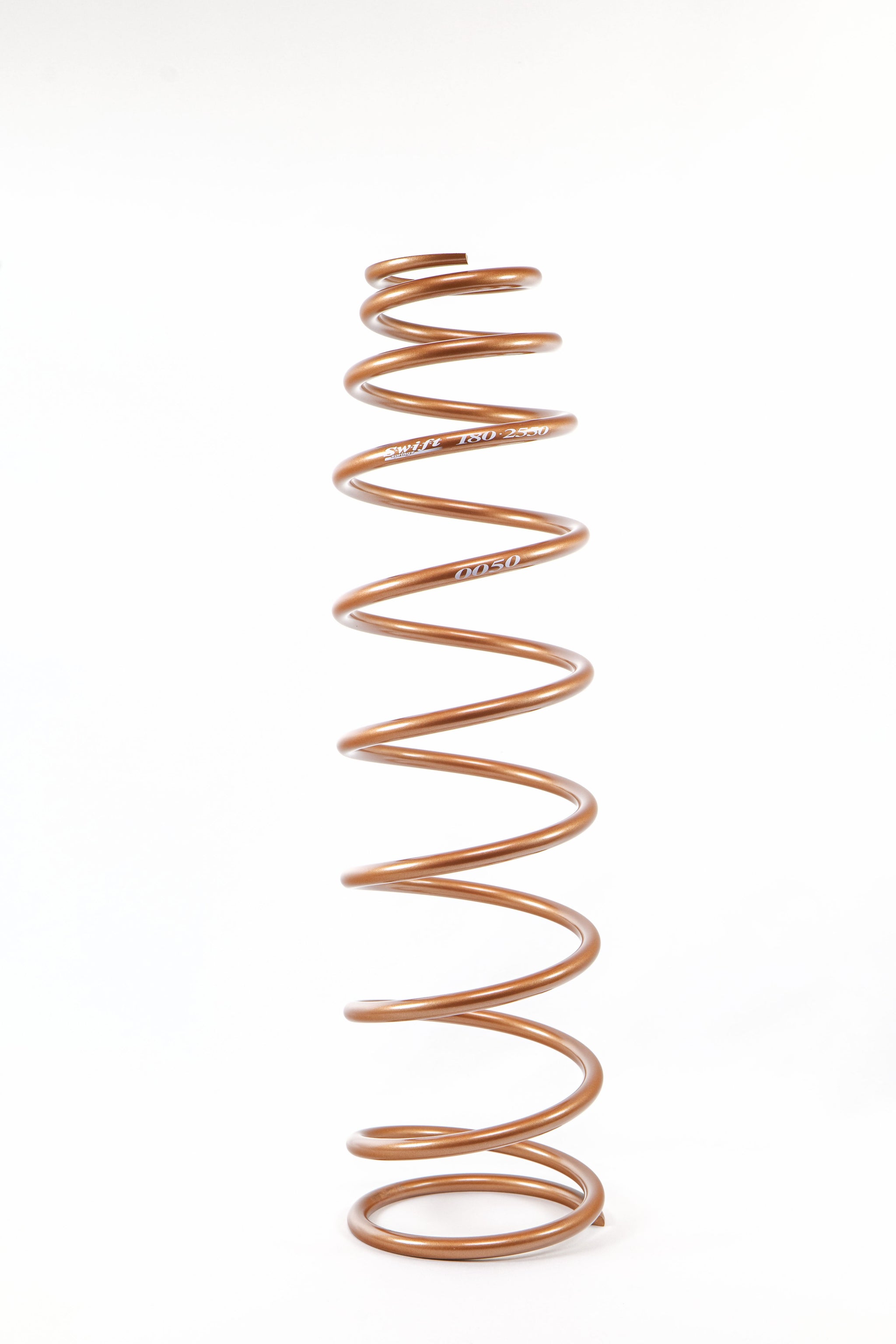

*Image example is an 18" length | 50lbs/inch spring rate
