Swift Springs Standard Coilover Barrel Spring - 6" Length | 2.5" ID | 125lbs/inch | 060-250-125 B

Swift coilover springs are mainly utilized in motorsports ranging anywhere from dirt to pavement where we've engineered for corner specific with our HS5.TW proprietary material, providing the optimal spring design to maximize your vehicle potential amplifying every advantage. Discover our wide variety of length, inner diameter and rates.

Our Barrel Springs are excellent for stacking, linear through stroke and come in a wide variety of lengths, inner diameter/outer diameter and rates!

Barrel Type

Specifications
Part Number: 060-250-125 B

Length : 6inch
Inner Diameter : 2.5inch
Spring Rate : 125lbs/inch
Usable Stroke : 4.5inch
Max Stroke : 4.5inch
Max Load : 567lbs

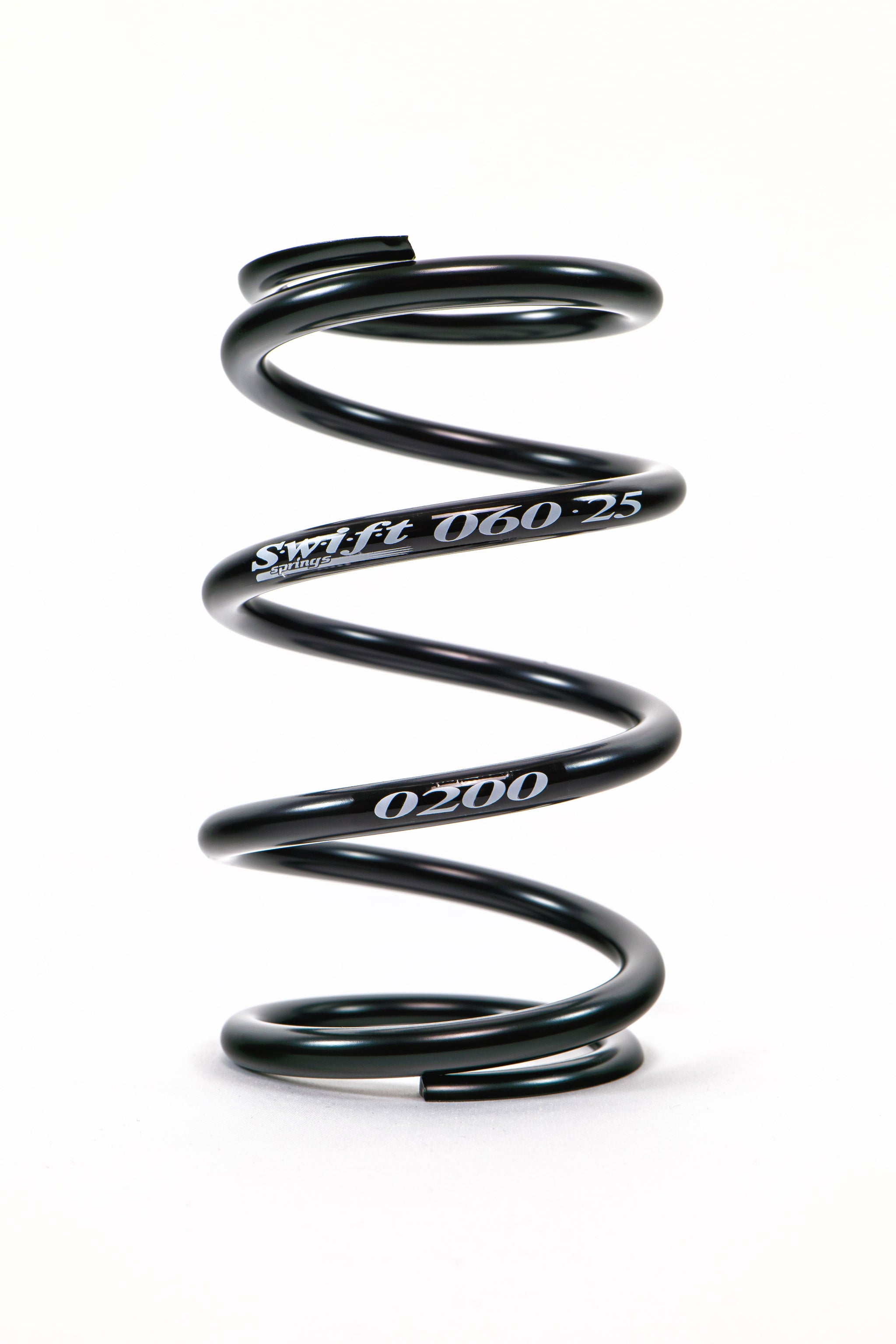

*Image example is a 200lbs/inch spring rate
