Features & Benefits

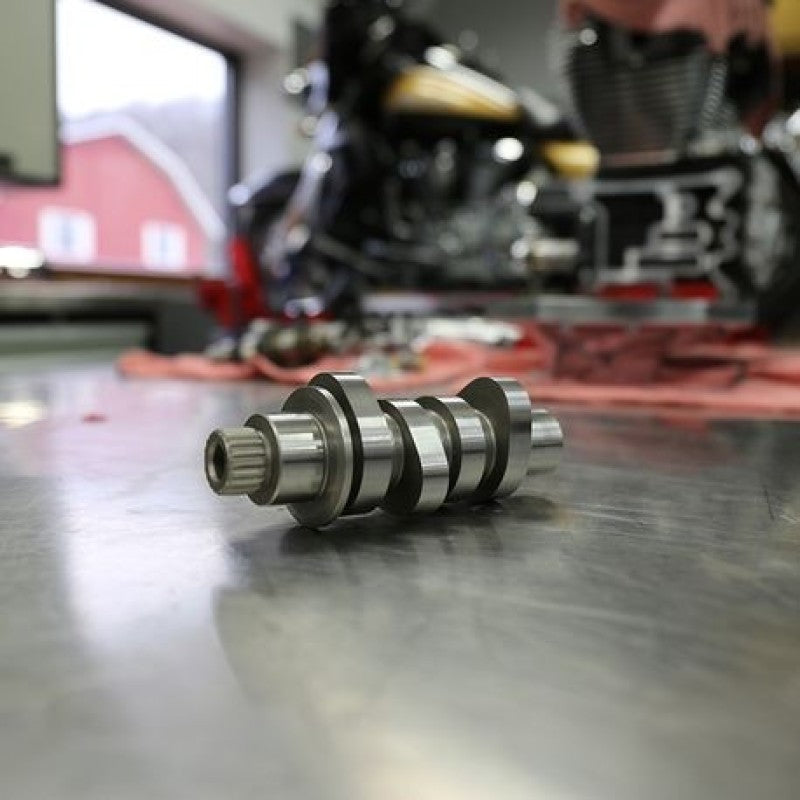

- The 475C is a 100 HP Bolt-in Cam (When coupled with intake and exhaust)
- Bolt-in! Compatible with all stock valve train components

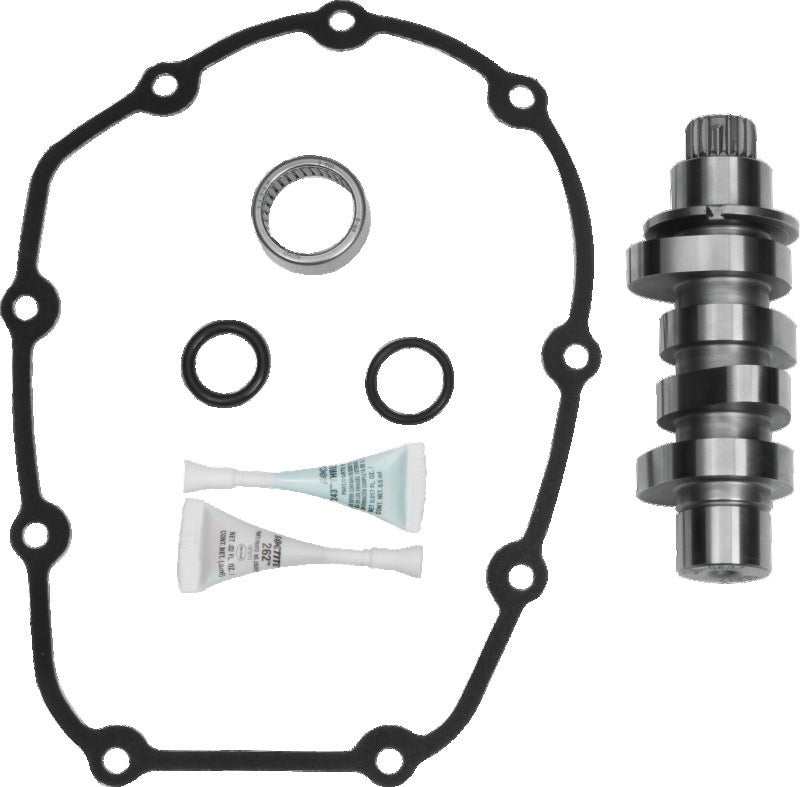

- Kits include all required bearings, o-rings, and hardware
- Made in the USA
Suggested:
930-0123 Quickee Adjustable Pushrods with Cover Keepers for 2017-19 M8 Models (Save labor and time! Eliminate the need to remove the rocker boxes and coolant lines)
330-0718 Precision Tappets for 2017-19 M8 1999-17 big twins and 2000-19 XL Models (Tappets should be replaced every time that the cam is replaced)
| Cylinder | Valve Timing | Valve Duration | Valve Lift | Lobe Center Line | Valve Lift @ TDC |
| Intake | Exhaust | Intake | Exhaust |
| Open BTDC/ Close ATDC | Open BBDC/ Close ATDC | Intake | Exhaust | Intake | Exhaust | Intake | Exhaust |
| Front | 6.2/27.2 | 55.5/28.5 | 213.5 | 263.9 | .475 | .475 | 100.5 | 103.5 | .107 | .208 |
| Rear | 2.2/31.2 | 52.5/20.2 | 213.5 | 252.5 | .475 | .475 | 104.5 | 106.0 | .093 | .170 |
