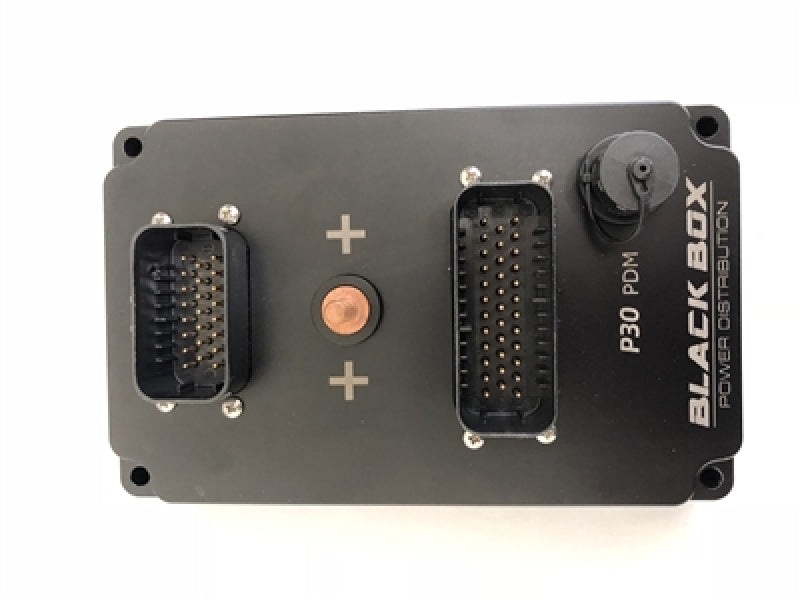

This solid state 30ch Power Distribution Module is a state of the art fuse-less system that distributes
8 20amp and 22 8amp outputs.
Comes with :
-Connector Kit w/ terminals
-Mounting hardware
-Power lug and cover
*Onboard CAN BUS system communicates with 15,12, and 8 button Greyhill Keypads.

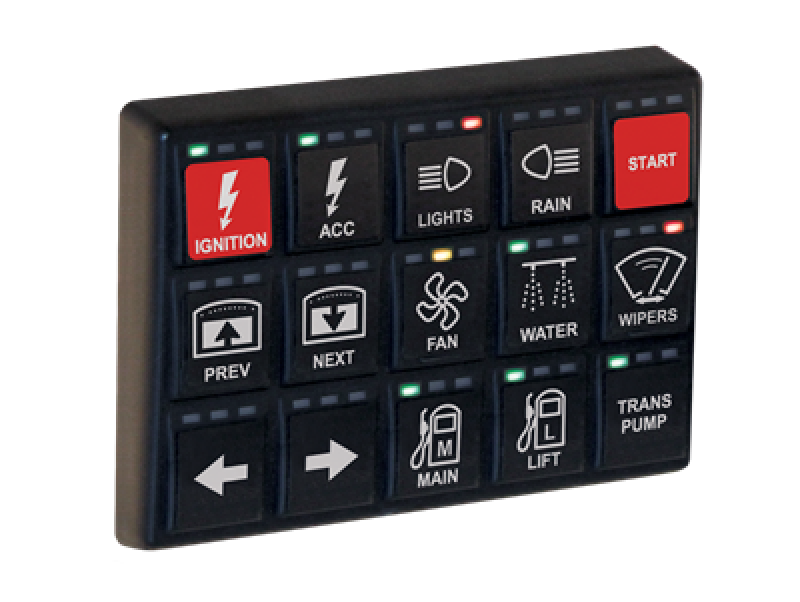

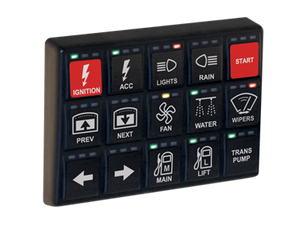

*Keypad Option is for our Greyhill 12 button keypad. You may also use 8 and 15 button Racegrade pads. Label kits are extra.
Software Download - > additional P30 information found here.
align="center">This pinout diagram is for the Moristech P30 PDM
[ RIGHT CLICK AND "SAVE AS" TO SAVE PDF FILE ]
