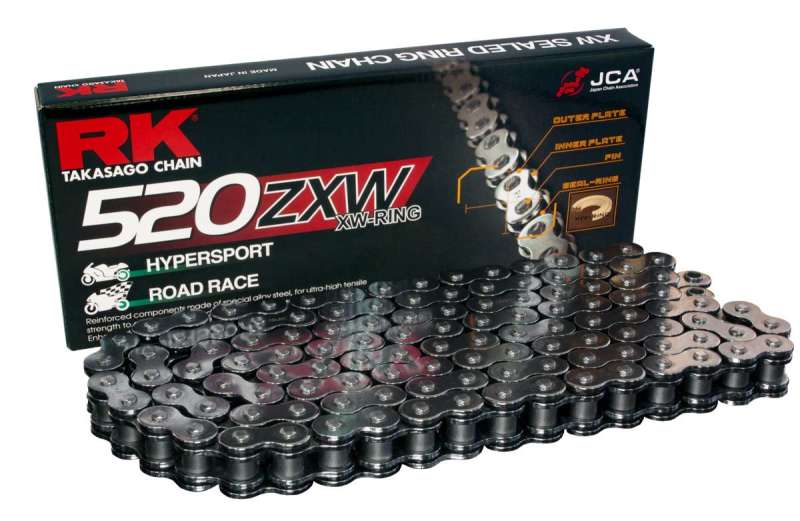

RK Chain CC520ZXW-100FT XW-Ring - Chrome

RK’s ZXW series is used for both racing and general use. ZXW and RK’s Drag Racing Chain 530PRODR are each made for very different disciplines, but both share the same racing technology which provides the ultimate in high performance drive chains. ZXW features MotoGP and FIM Suzuka 8 Hour Endurance technology and has proven superiority by winning 35 first place finishes out of 39 races at the FIM Suzuki 8 Hour Endurance Race. Several features are required for an exceptionally performing endurance race chain. These include:

• Low Friction – The chain must not reduce power output from the engine
• High Tensile Strength – The chain must be able to withstand the extreme loads of race engines
• Consistency – The chain must consistently perform during the entire race duration
• Fuel Efficient – The chain must not decrease the engine’s fuel efficiency

All these features are in perfect balance in the construction of the ZXW chain. RK’s ZXW series chains are ideal for high-speed, high-horsepower performance applications, large displacement and extended swingarm machines.

RK 520ZXW specifications

• Tensile Strength: 9,450 lbs
• MAX CC Racing: 1,200cc
• MAX Horsepower: 200 HP
• Weight: 3.92 lbs
• Max Chain Width: 20.9mm
• Master Link Included: Rivet Type

RK ZXW Series were developed to meet the spec of the latest models of extreme superbike 1000cc and above. RK ZXW series features RK's only technology of XW-Ring, which has 2 lubrication pools and 3 contact lips, a triple barrier structure to further seal the lubrication and prevent debris to enter the chain. RK ZXW Series are designed to be the strongest, long-lasting chain available on today's market, with highest tensile strength of RK series and high rigidity for instant respond on acceleration.
