ReadyLift - 6" Lift Kit with Bilstein Shocks - 2019-2024 Ram 2500 (4WD Diesel) - 49-1960

6" front / 3.5" rear lift kit with four Bilstein shocks and Driveline Indexing System for 2019-2024 Ram 2500 HD 4WD diesel.

This complete 6" system pairs heavy-duty 6" lift front springs and 3.5" rear coil spring spacers with new Bilstein front and rear shocks. Heavy-duty radius arm drop brackets, fabricated steel front and rear track bar brackets, a dropped cast-iron pitman arm, sway bar relocation brackets and bump stop extensions maintain proper geometry, while the billet aluminum Driveline Indexing System re-clocks the transfer case for improved driveline angles.

Fits: 2019-2024 Ram 2500 4WD HD, diesel only.

Features

• 6" front / 3.5" rear lift
• Four Bilstein shocks tuned for the Ram 2500 HD
• Billet aluminum Driveline Indexing System (DIS)

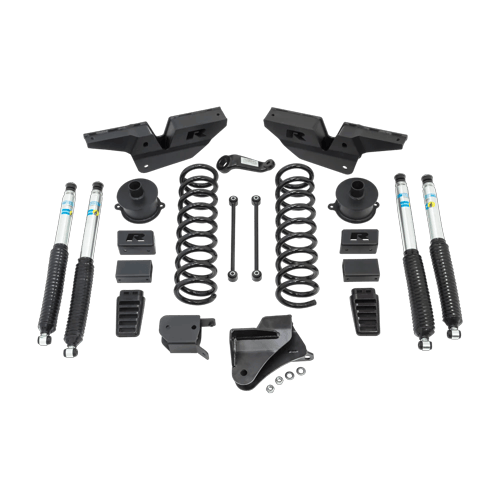

Kit Includes

• 6" lift front springs and 3.5" rear coil spring spacers
• Radius arm drop brackets; front and rear track bar brackets
• Dropped cast-iron pitman arm; sway bar relocation brackets; bump stop extensions
• Driveline Indexing System
• (4) Bilstein shocks

Tire Fitment

Up to 37x13.50 tires on 9.5" wide wheels with -18 offset.

Notes

Does not work with factory air suspension or auto-level system. Single-cab configuration not validated by ReadyLIFT.
