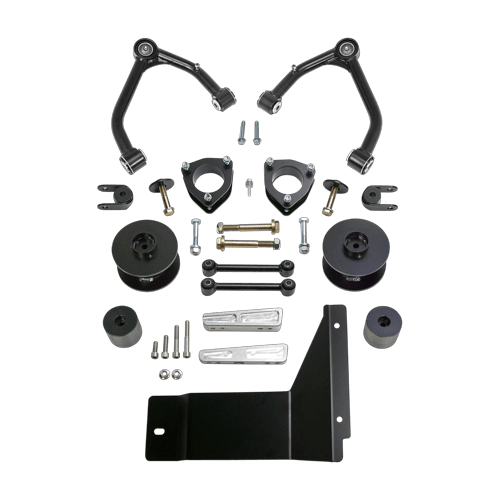

ReadyLift - 4" SST Lift Kit - 2007-2014 Chevy/GMC Full-Size SUV (4WD) - 69-3495

4" front / 3" rear SST lift kit for 2007-2014 GM full-size 4WD 1500 SUVs.

The 69-3495 4.0" SST Lift Kit is a completely bolt-on system - no drilling, cutting or welding - raising the front 4.0" with powder-coated steel strut extensions and lifting the rear 3.0" with steel coil spring spacers while maintaining the factory ride. It fits tires up to 33" and includes patent-pending CNC-machined 6061-T6 billet aluminum differential drop brackets with a steel skid plate to keep front CV angles safe. Now includes TCT free-floating self-lubricating pivot bushings.

Fits: 2007-2014 Chevrolet Tahoe and Suburban and GMC Yukon 6-lug 4WD 1500 SUVs with factory steel knuckle suspension. Not compatible with rear airbag suspension or AWD models.

Features

• True 4.0" front / 3.0" rear bolt-on lift, no drilling, cutting or welding
• 100% DOM tubular upper control arms with OEM-style ball joints; retains OEM geometry
• Patent-pending CNC-machined 6061-T6 billet aluminum differential drop brackets that will not bend
• Powder-coated steel skid plate using factory attachment points
• 3.0" powder-coated steel rear coil spring spacers
• Longer rear sway bar end links and bump stop extensions; steel rear shock extensions retain the factory shocks
• TCT free-floating self-lubricating pivot bushings

Tire Fitment

Up to 33" (33x12.50 max; minor inner fenderwell trimming may be required). 18" - 295/65R18; 20" - 285/60R20; 22" - 285/50R22. Designed for aftermarket wheels; a wheel spacer (10-3485) is required to run factory wheels.

Notes

Installation may cause rear axle shift, which may require an adjustable rear track bar or drop bracket. Not compatible with rear airbag suspension or AWD models. Estimated installation time approximately 7.3 hours (excluding alignment). Backed by the ReadyLIFT Limited Lifetime Warranty and ReadyGuard Powertrain Warranty.
