ReadyLift - 2.5" Coil Spring Front Lift Kit (Bilstein Shocks) - 2017-2019 Ford Super Duty (4WD Diesel) - 46-2723

2.5-inch coil-spring front lift kit with Bilstein shocks and a track bar relocation bracket for 2017-2019 Ford Super Duty diesel 4WD.

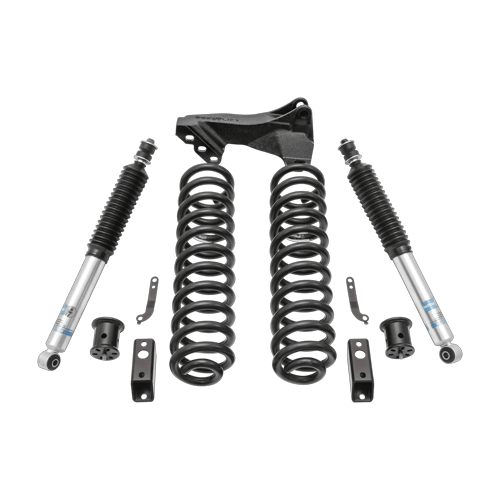

A coil-spring front leveling system that raises the front of your Super Duty 2.5 inches for clearance and a more commanding stance. Specially engineered coil springs teamed with Bilstein 5125 Series shocks and a track bar relocation bracket deliver a smooth, controlled ride on and off road. Also includes model-specific brake line extension brackets, bump stop extension brackets and front sway bar frame-mount extension brackets.

Fits: 2017-2019 Ford Super Duty F-250 / F-350 / F-450 4WD, diesel only.

Features

• 2.5" lift front coil springs
• Front track bar relocation bracket
• Bilstein 5125 Series shocks
• Sway bar frame-mount spacers and brake line extensions
• Bump stop extension brackets

Tire Fitment

Up to 35x12.50; 37" is possible but may require trimming.

Notes

Diesel trucks only. Final lift height may vary from 1.5" to 2.5" depending on factory spring rate. Not recommended for Tremor editions.
