ReadyLift - 3.5" SST Lift Kit - 2011-2016 Ford Super Duty F350 DRW (4WD) - 69-2535

3.5" front / 3.0" rear SST lift kit for the 2011-2016 Ford Super Duty F350 4WD dually (DRW) with two-piece drive shaft.

Engineered for diesel Super Duty duallies, this kit pairs 3.5" front coil spring spacers with OEM-style 5.0" cast-iron rear blocks (3.0" rear lift) for a lifted stance with roughly a 0.75" rake, while retaining the factory ride. It uses ReadyLift Smart Suspension Technology and installs with no cutting or drilling.

Fits: 2011-2016 Ford Super Duty F350 4WD dually (DRW) with dually rear spring pack and two-piece drive shaft; diesel engines only. Does not fit the 6.2L gas engine (front will sit nose-high). Not compatible with air spring/load-leveling kits that attach to the bump stop tangs.

Features

• 3.5" front lift and 3.0" rear lift (about 0.75" rake)
• 3.5" powder-coated steel coil spring spacers with poly sound isolators
• Front shock extensions retain the factory front shocks
• Radius arm drop brackets and track bar relocation bracket keep suspension geometry intact
• Front sway bar frame mount spacers to level the front
• Carrier bearing spacer to adjust driveshaft angle
• OEM-style 5.0" cast rear lift blocks with longer U-bolts for the dually spring pack
• No cutting or drilling required (Smart Suspension Technology)

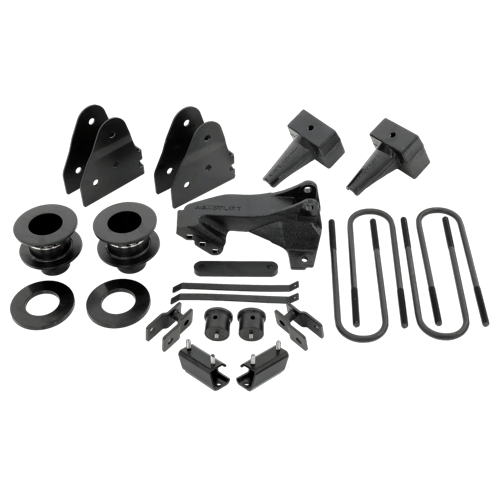

Kit Includes

• Two coil spring spacers with poly sound isolators
• Two front shock extensions
• Radius arm drop brackets
• Two front sway bar mount spacers
• One front track bar relocation bracket
• Two OEM-style cast rear lift blocks with longer U-bolts and hardware
• Two bump stop extensions
• Extended-length front brake line brackets

Tire Fitment

Up to 35" tires. Fitment guide: 18" - 37x12.50R18; 20" - 37x12.50R20; 22" - 325/60R22 (37x12.50 for no rub on a 9" wide, 0-offset wheel).

Notes

For duallies with two-piece drive shaft only (one-piece drive shaft trucks use kit 69-2538). Diesel only. Tow-package vehicles may require longer U-bolts or removal of the top overload springs. Estimated installation time about 6 hours; alignment recommended. Backed by ReadyLift's lifetime warranty against manufacturing defects.
